Description
Mitel Smart-1 PAV+ 8350-R01-SDD1XX Positive Account Verification PBX Controller
The Mitel Smart-1 PAV+ is a programmable communications controller designed to provide Positive Account Verification (PAV+) functionality within Mitel PBX telephone environments. It connects between the telephone network and a PBX system to intercept and validate calls — verifying caller account information before allowing call completion — a function commonly deployed in hospitality, call center, and institutional telephony installations. The unit was manufactured by Mitel Networks in the United States and dates from November 1994.
Specifications & What's Included
- Manufacturer: Mitel Networks Inc.
- Model: Smart-1 PAV+ (also listed as Smart-1 / Smart-1A)
- Part Number: 8350-R01-SDD1XX
- Hardware Revision: RA.4
- Electrical Rating: 24 VAC / 700 mA (AC adapter NOT included)
- Required Connector: USOC RJ31X
- FCC Registration No.: BN285B-10944-LR-E
- Ringer Equivalence Number: 0.7B
- Complies with FCC Part 68 and FCC Part 15
- UL Listed: Telephone Equipment (File 489Y)

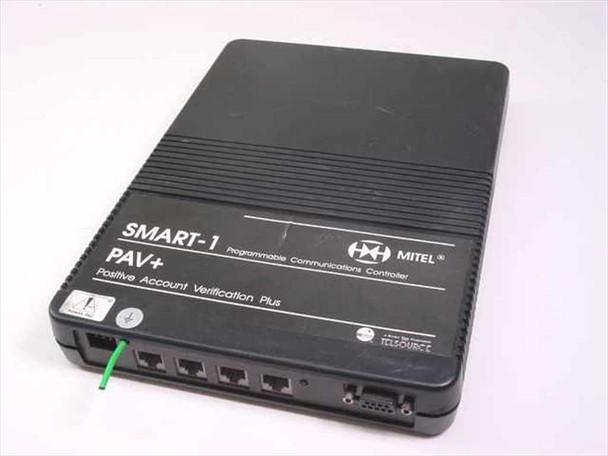

- Front panel: multiple RJ11-style telephone ports, power indicator
- Rear/side: DB9 serial connector visible

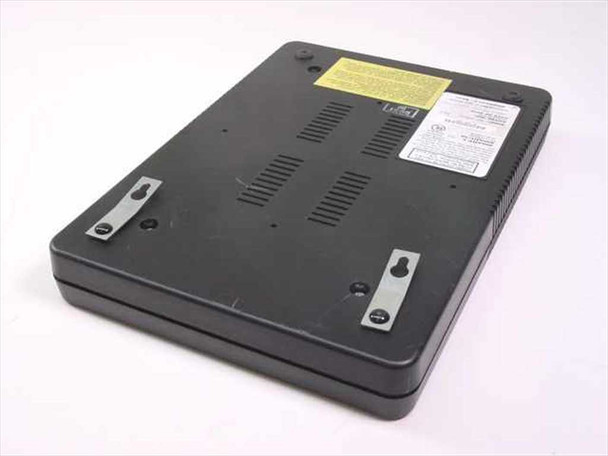

- Form factor: compact desktop enclosure with wall-mount keyhole slots on base
- Country of Manufacture: United States
- Date of Manufacture: November 10, 1994
- Unit only — no AC adapter included
Applications
The Mitel Smart-1 PAV+ was designed for use in Mitel PBX telephony systems requiring account code or authorization code verification before call completion. Positive Account Verification systems are used in environments such as hotels, motels, universities, hospitals, and corporate campuses where telephone access must be controlled and billed to specific accounts. The controller sits in-line on the telephone network interface and communicates with the PBX to validate account codes in real time. The Smart-1 platform was Mitel's programmable controller line of the early-to-mid 1990s, and the PAV+ variant added enhanced account verification capability over the base Smart-1 unit. These controllers remain relevant wherever legacy Mitel PBX systems are still in service and require account-control functionality.
This Mitel Smart-1 PAV+ Positive Account Verification Plus Controller (8350-R01-SDD1XX) has been inspected and is in good used condition. It was pulled from a working environment where it was in use. The unit shows typical light wear consistent with normal office use. The AC adapter is not included — the unit requires 24 VAC / 700 mA. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Mitel |
Model: |
Smart-1 PAV+ |
MPN: |
8350-R01-SDD1XX |
Secondary Model: |
8350-R01-SDD1XX RA.4 |
Type: |
Programmable Communications Controller |
SKU: |
28289 |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Unit only — AC adapter not included |
Country/Region of Manufacture: |
United States |
Power Requirements: |
24 VAC / 700 mA |
Form Factor: |
Desktop |
FCC Registration Number: |
BN285B-10944-LR-E |
Ringer Equivalence: |
0.7B |
Required Connector: |
USOC RJ31X |
Compatible Standards: |
FCC Part 68, FCC Part 15 |
Date of Manufacture: |
November 10, 1994 |
Hardware Revision: |
RA.4 |
Interface Type: |
RJ31X, RJ11 telephone ports, DB9 |
Application: |
PBX Positive Account Verification |
Compatible With: |
Mitel PBX telephone systems |
Condition Notes: |
Mitel Smart-1 PAV+ 8350-R01-SDD1XX inspected, good used condition, pulled from a working environment. AC adapter not included. 24VAC/700mA required. Please view photos and contact us with questions. |
