MIT TKOMB2-04ETF-06I Single-Acting Pneumatic Ball Valve Actuator G1/2 DN12.5

MIT TKOMB2-04ETF-06I Single-Acting Pneumatic Ball Valve Actuator G1/2 DN12.5

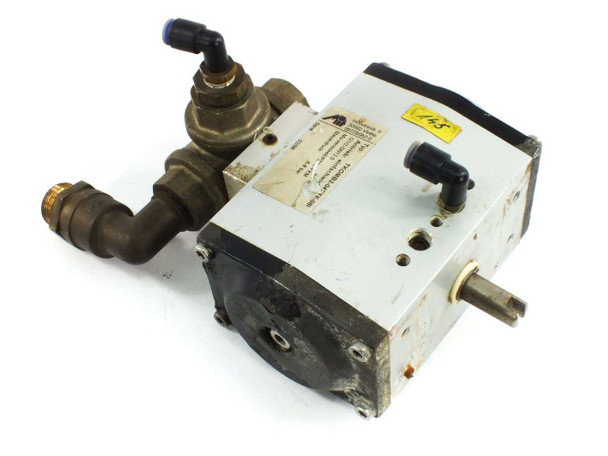

The MIT TKOMB2-04ETF-06I is a single-acting (spring-return) pneumatic ball valve actuator manufactured by MIT Armaturen of Vlotho, Germany. It combines a compact aluminum actuator body with an integrated G1/2 DN12.5 nickel-plated brass ball valve, controlled by a pneumatic signal of 6–8 bar. In single-acting (einfachwirkend) operation, compressed air drives the actuator in one direction while an internal spring returns it to the fail-safe position when air pressure is removed — making it suitable for automated open/close valve control in process piping systems.

Specifications & What's Included

• Model: TKOMB2-04ETF-06I
• Actuation type: Single-acting (spring return / einfachwirkend)
• Port size: G1/2 – DN12.5
• Control pressure: 6–8 bar
• Valve body material: Ms-vernickelt (nickel-plated brass)
• Seat / seal material: PTFE-FKM
• Actuator housing: Aluminum (painted)
• Series / date code: 02/98 (February 1998)
• Manufacturer: MIT Armaturen, Vlotho, Germany
• Includes: Integrated brass ball valve body with push-in pneumatic fittings

Applications

Single-acting pneumatic ball valve actuators like the TKOMB2-04ETF-06I are standard components in industrial process automation, used wherever a valve must open or close automatically in response to a pneumatic control signal. The spring-return design provides a defined fail-safe position — either fail-open or fail-closed — when air supply is lost, which is important in safety-critical piping applications. PTFE and FKM seating materials make this type of valve suitable for a range of media including water, air, and many chemical fluids. Units of this class are commonly found in chemical processing, food and beverage production, water treatment, pneumatic control panels, and general factory automation systems. MIT Armaturen is a German valve and actuator manufacturer based in Vlotho, North Rhine-Westphalia, producing compact pneumatic valve assemblies for European and international industrial markets.
