Description

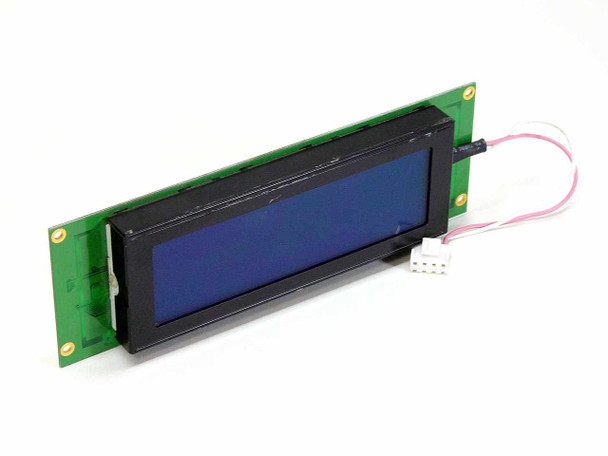

Microtips Technology MTB-135 PB-135 Rev-A CCFL LCD Display Graphics Module
Industrial LCD graphics display module with CCFL backlight. Blue backlight with dark character display designed for embedded systems and telecom equipment from the early 2000s.
Specifications & What's Included
- Model: MTB-135 / PB-135 Rev-A (MPN: PB-135 REV-A)
- Display Type: CCFL LCD graphics module with blue backlight

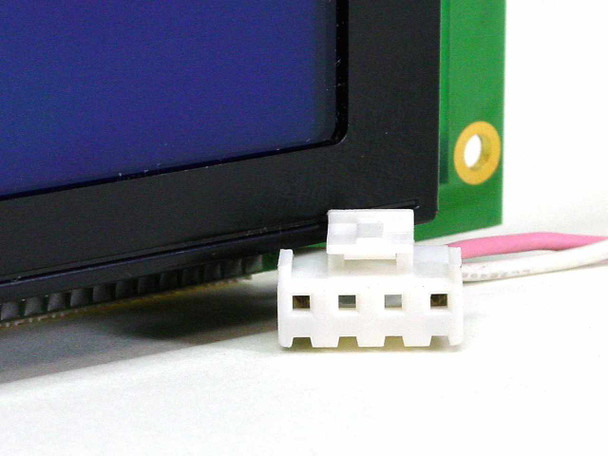

- Connectors: Edge connector (pin header) + JST-style white 4-pin header

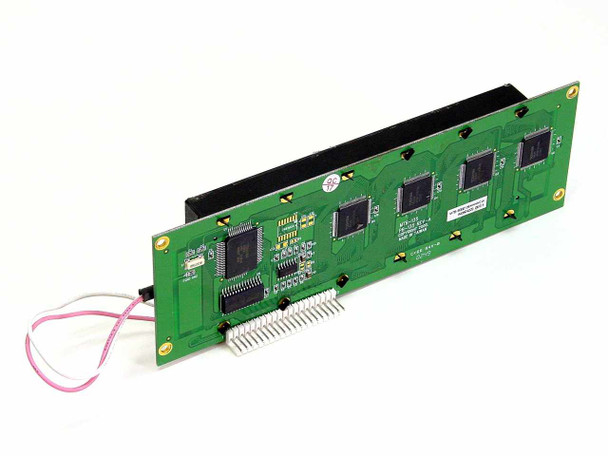

- Controller ICs: Toshiba T6A39A / T6A40A
- PCB Rating: CK66 94V-0
- Manufacture: Taiwan, 2000
Applications
CCFL LCD graphics modules like this were common in industrial control panels, telecom equipment, and embedded instrumentation throughout the 1990s and early 2000s. These modules functioned as status displays and user interface elements in systems requiring reliable backlighting in varied lighting conditions. Compatible with systems using edge-connector or JST pin-header connections for parallel data interfaces.
Condition: For Parts or Not Working

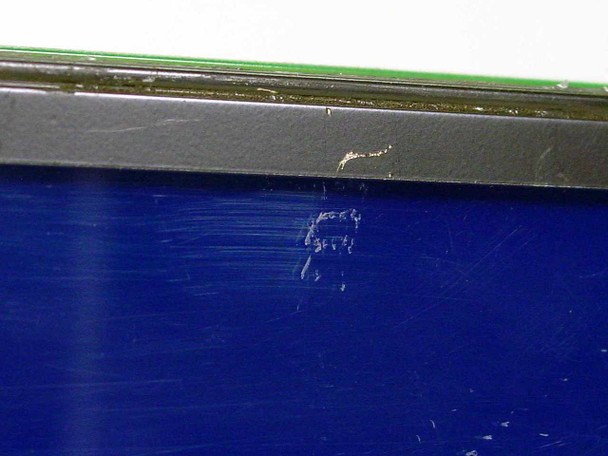

This Microtips Technology MTB-135 PB-135 Rev-A CCFL LCD Display Graphics Module is being sold as-is for parts or repair. The screen has multiple visible scratches across the display surface — these are clearly shown in our photos. The PCB and connector appear intact and show no obvious physical damage. Because functionality cannot be confirmed due to the screen condition, this module is not guaranteed functional and is sold as-is with no warranty of operation. Please view our photo set carefully and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This Microtips Technology MTB-135 PB-135 Rev-A CCFL LCD Display Graphics Module is being sold as-is for parts or repair. The screen has multiple visible scratches across the display surface — these are clearly shown in our photos. The PCB and connector appear intact and show no obvious physical damage. Because functionality cannot be confirmed due to the screen condition, this module is not guaranteed functional and is sold as-is with no warranty of operation. Please view our photo set carefully and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Microtips Technology |
Model: |
MTB-135 |
Secondary Model: |
PB-135 |
MPN: |
PB-135 REV-A |
SKU: |
36575 |
Type: |
LCD Graphics Display Module |
Backlight Type: |
CCFL (Cold Cathode Fluorescent Lamp) |
Display Color: |
Blue backlight with dark characters |
PCB Color: |
Green |
Connector Type: |
Edge connector (pin header) + JST-style white 4-pin header |
Revision: |
Rev-A |
Copyright / Production Year: |
2000 |
Country/Region of Manufacture: |
Taiwan |
Controller ICs: |
Multiple Toshiba ICs (T6A39A / T6A40A visible on PCB) |

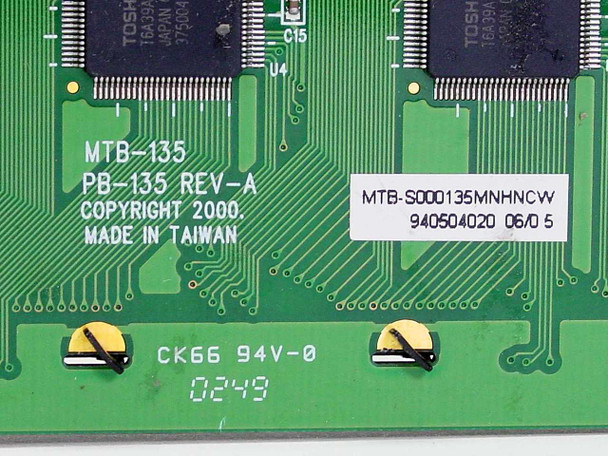

Board Marking: |
MTB-S0000135MNHNCW |
PCB UL Rating: |
CK66 94V-0 |
Form Factor: |
PCB Module / Card |
Condition: |
As-Is / For Parts or Not Working |
Seller Notes: |
Sold as-is for parts or repair; screen has scratches |
Condition Notes: |
Microtips MTB-135 PB-135 Rev-A LCD display module sold as-is for parts or repair. Screen has multiple visible scratches. PCB and connector appear intact. Not guaranteed functional. |
