Polaroid MicroCam Microscope Eyepiece Camera 23mm For Parts

Polaroid MicroCam Microscope Eyepiece Camera 23mm For Parts

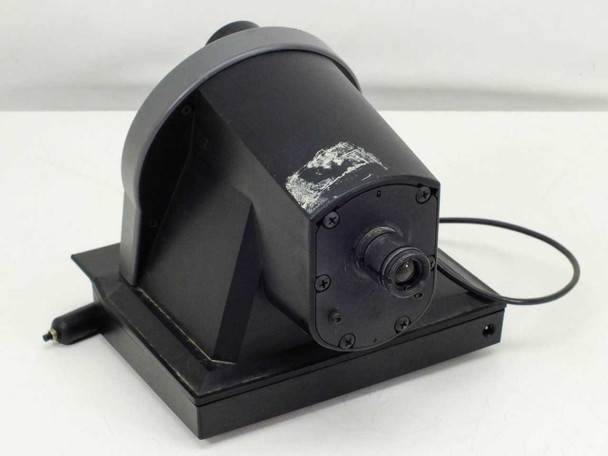

The Polaroid MicroCam is a self-contained microscope eyepiece camera designed to mount directly onto a microscope ocular tube and produce instant photographs of specimens viewed through the microscope. It integrates a camera and film transport mechanism into a single tabletop unit, with the microscope's eyepiece image directed through the 23mm attachment port up into the camera's optical path. The front panel features a small LCD display, mode selection buttons (Am/OI), film type selectors for Polaroid 331, 337, and 339 film, and up/down exposure adjustment controls. This unit did not power on when tested with a 12V 1.2A wall adapter and is being sold for parts or repair only.

Specifications & What's Included

• Brand: Polaroid
• Model: MicroCam
• Type: Microscope eyepiece instant camera
• Eyepiece attachment port diameter: 23mm
• Power input: 12V DC (power supply NOT included)
• Front panel: LCD display, Am/OI mode buttons, film type selectors (331, 337, 339), +/− exposure controls
• Top-mounted optical lens/camera element
• Bottom eyepiece optical port with 23mm circular opening (4-screw mount visible)
• Attached DC power cable with barrel connector
• No power supply included
• Sold AS-IS for parts or repair — did not power on in testing

Applications

The Polaroid MicroCam was designed for use in laboratory, educational, and research environments where microscope users needed to quickly produce hard-copy photographic documentation of specimens without a separate camera or darkroom setup. It attached to standard microscope eyepiece tubes and used Polaroid instant film (types 331, 337, and 339) to produce prints directly from the microscope's optical image. This type of system was widely used in biology labs, pathology departments, materials science labs, and university research settings from the 1980s through the early 2000s, when digital microscope cameras began to replace instant-film solutions. Replacement parts, repair, or donor units from a working MicroCam are periodically sought by labs and collectors maintaining legacy Polaroid microscopy equipment.
