Micro Tooling MT0268 PRO S/W M/C Pneumatic Ball Bearing Assembly Machine Parts

(No reviews yet) Write a Review
SKU:
22585
MPN:
MT 0268
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
56.00 LBS
Shipping:
Calculated at Checkout
  • Micro Tooling MT0268 PRO S/W M/C pneumatic bearing assembly machine – right-front three-quarter view showing stainless steel enclosure, rotary chuck assembly, and coiled pneumatic tubing

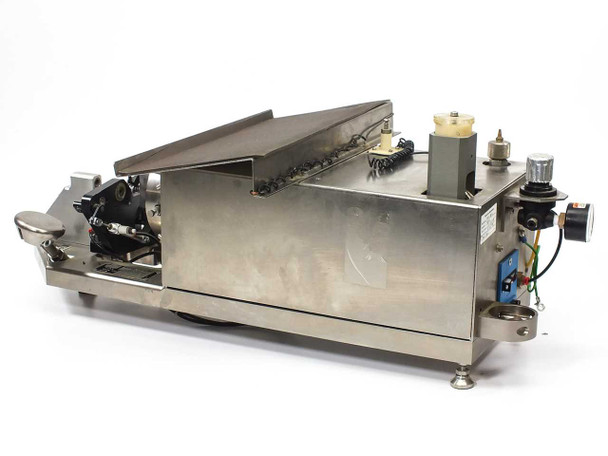

  • Micro Tooling MT0268 pneumatic bearing assembly machine – left-rear three-quarter view showing underside frame, pneumatic fittings, and stainless steel base with adjustable feet
  • Micro Tooling MT0268 nameplate close-up reading MICRO TOOLING SDN BHD, PENANG MALAYSIA, Title: PRO S/W M/C, Tool No: MT 0268, Date: 24-10-92

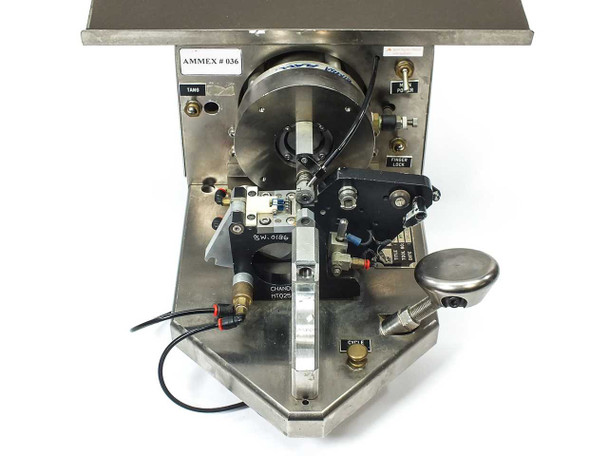

  • Micro Tooling MT0268 front panel view showing large rotary disc chuck, AMMEX 036 asset tag, Tang and Finger Lock controls, pneumatic actuator assembly, and main power toggle

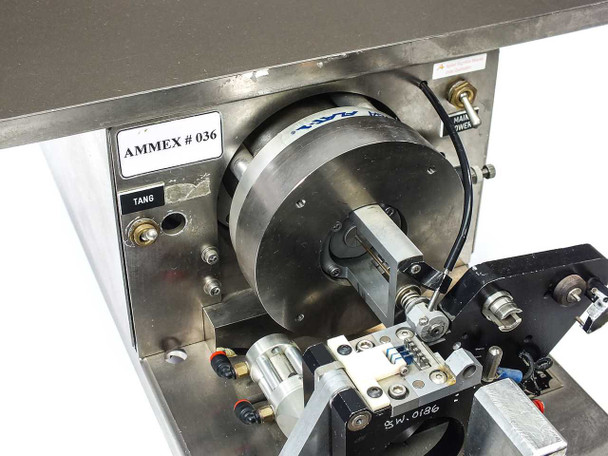

  • Micro Tooling MT0268 close-up of rotary chuck disc and pneumatic bearing feed actuator sub-assembly with AMMEX 036 label visible
  • Micro Tooling MT0268 close-up of chuck area showing pneumatic actuator, BW-0186 labeled component block, feed mechanism, and Finger Lock toggle switch panel

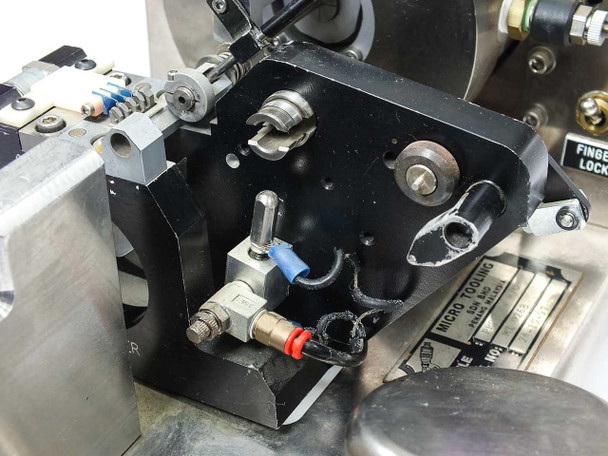

  • Micro Tooling MT0268 close-up of pneumatic actuator and tooling block showing Clippard fittings, red and blue pneumatic connectors, and bearing feed nozzle area

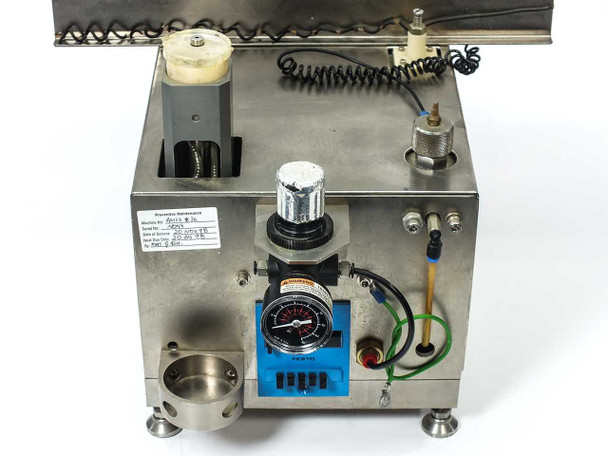

  • Micro Tooling MT0268 side panel view showing Festo pneumatic pressure regulator with gauge, Festo counter module, coiled air line, and stainless steel body

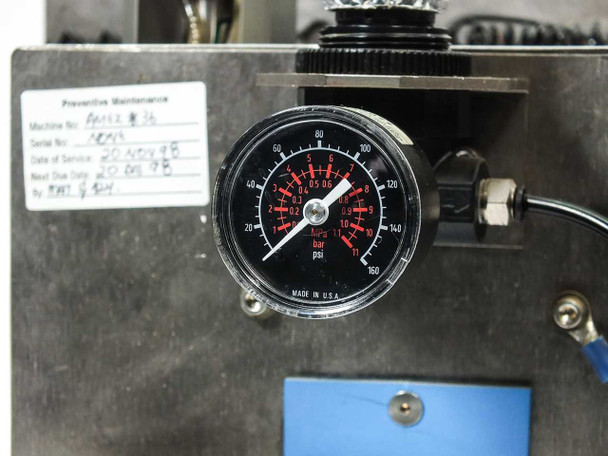

  • Micro Tooling MT0268 close-up of pneumatic pressure gauge (0–160 psi / 0–11 bar, Made in USA) with Festo regulator and preventive maintenance label showing Machine No AMMEX 36

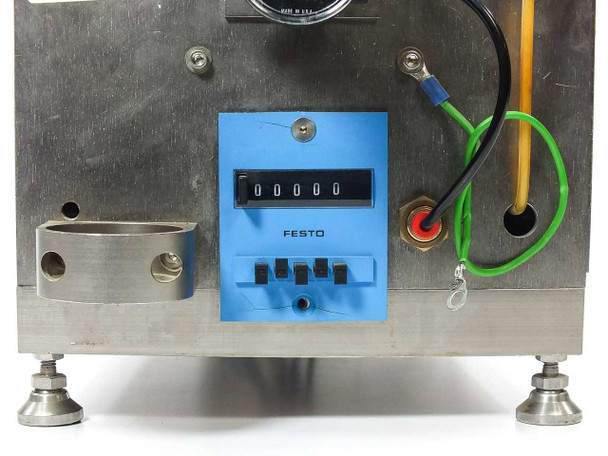

  • Micro Tooling MT0268 close-up of Festo mechanical counter (reading 00000) with four push-button reset switches on blue panel, mounted to stainless steel side panel

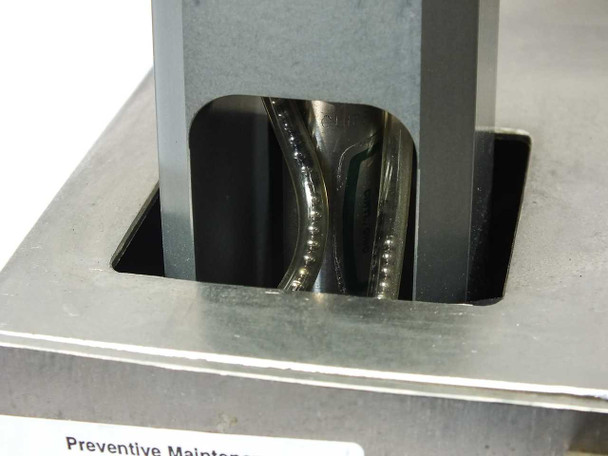

  • Micro Tooling MT0268 close-up of 2mm stainless steel ball bearing feed channel showing bearings queued in the precision-machined bearing guide track

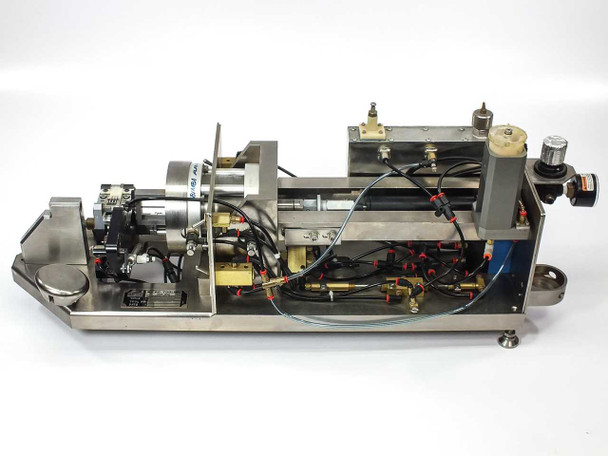

  • Micro Tooling MT0268 top-open view showing internal pneumatic circuit with DC motor drive, multiple Bimba flat-1 cylinders, manifold blocks, pneumatic tubing, and wiring

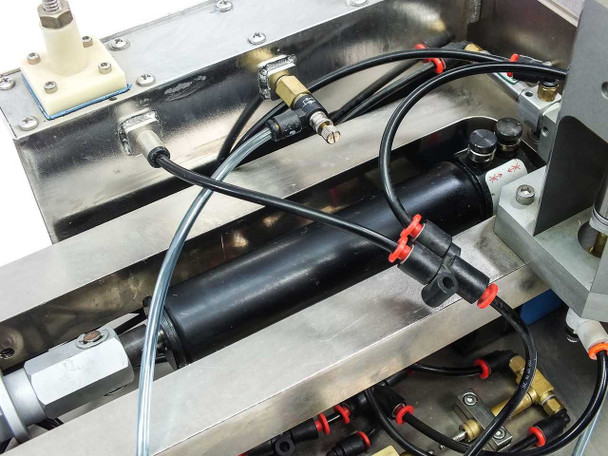

  • Micro Tooling MT0268 internal close-up of Bimba flat-1 pneumatic cylinder assembly with black manifold, red push-in fittings, and blue/clear pneumatic tubing connections
  • Micro Tooling MT0268 internal close-up of pneumatic manifold and valve bank with brass fittings, red push-in connectors, clear and black tubing, and linear cylinder assembly
$600.00
Was: $1,200.00
Current Stock: 1

Sold Out

Description

Micro Tooling MT0268 PRO S/W M/C Pneumatic Ball Bearing Assembly Machine Parts

Pneumatic-driven benchtop assembly machine manufactured in Malaysia (1992) for feeding and assembling 2mm stainless steel ball bearings. Operates via compressed air and includes multiple pneumatic control components.

Specifications & What's Included

  • Model: MT0268 PRO S/W M/C
  • Drive Type: Pneumatic
  • Dimensions: 28 x 14.5 x 11 inches
  • Frame Material: Stainless Steel
  • Compatible With: 2mm Stainless Steel Bearings
  • Included Components: Bimba Flat-1 cylinders, Clippard switches, Festo counter, pneumatic regulator

Applications

Used in semiconductor and precision manufacturing for automated ball bearing assembly operations. Designed to handle high-volume production feeding and assembly of small bearing components. Common in electronics manufacturing, medical device assembly, and industrial bearing applications where consistent pneumatic automation is required.

Condition: For Parts or Not Working
This Micro Tooling MT0268 PRO S/W M/C pneumatic ball bearing assembly machine is being sold AS-IS for parts or repair. The machine is not complete — part of the chuck assembly is missing — and is not guaranteed functional in its current state. It does include many usable components: Bimba Flat-1 pneumatic cylinders, Clippard switches, a Festo mechanical counter, a Festo pneumatic regulator with pressure gauge, pneumatic manifold blocks, tubing, and the stainless steel enclosure frame. The bearing feed channel and internal pneumatic circuit are visible and appear intact in the photos. This unit is dated 24-10-92 per the nameplate and was built by Micro Tooling Sdn Bhd, Penang, Malaysia. Sold strictly as-is with no warranty of functionality. Please view our photo set and contact us if you have any questions.
