Micro Switch MPC6 MPW11 9209 Infrared Light Beam Photo Head 120VAC NC-NO

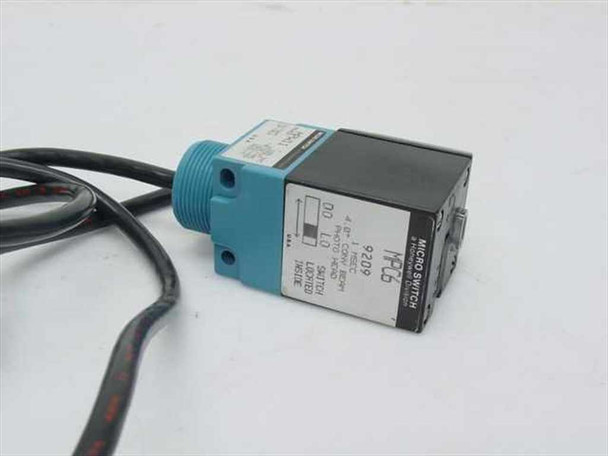

The Micro Switch MPC6 is a retroreflective infrared photoelectric photo head manufactured by Micro Switch, a Honeywell Division. It combines the transmitter and receiver in a single compact housing, projecting an invisible infrared beam that reflects off a standard vehicle or panel reflector back to the sensor. When an object interrupts the beam, the internal relay switches state. The MPW11 power module, integrated into the teal lower housing, provides 120 VAC power conditioning and relay output wiring.
Specifications & What's Included
- Make: Micro Switch (a Honeywell Division)
- Photo Head Model: MPC6
- Power Module Model: MPW11
- Part / Date Code: 9209
- Beam Type: Infrared, 4.0" Convergent (Conv) Beam
- Response Time: 1 MSEC
- Detection Method: Retroreflective — works against a vehicle or panel reflector
- Power Input: 120 VAC; L1 (White wire), L2 (Black wire)
- Output: Relay — NC (Blue), NO (Orange), C/Common (Red)
- Indicator: LED indicator light on top of housing; illuminates when beam is reflected

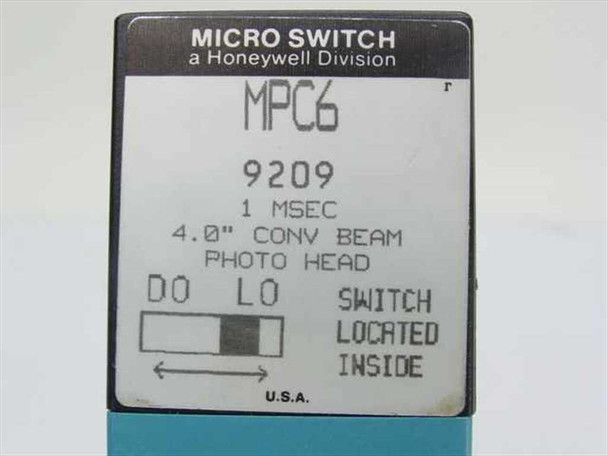

- DO / LO switch located inside housing (per label diagram)

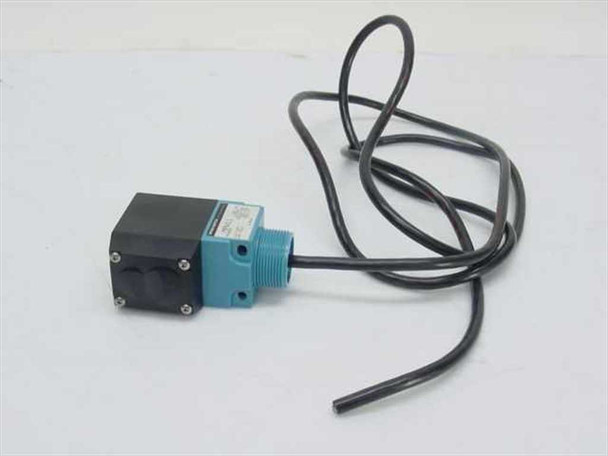

- Threaded lens nose for panel or bracket mounting
- Cable leads attached (no plug — direct wire connection)
- Country of Manufacture: U.S.A.
Applications
Retroreflective photoelectric sensors like the Micro Switch MPC6 are widely used in industrial automation, material handling, and access control applications. Because the transmitter and receiver share a single housing, installation is simpler than opposed-beam setups — only one wiring point is needed, and alignment is straightforward using the top indicator light. Typical applications include vehicle presence detection in loading docks and parking systems (using the vehicle's own reflector), conveyor line object counting, gate and door control, and machine guarding. Micro Switch was a well-known Honeywell brand producing industrial sensing and switching products from the mid-20th century onward; the MPC6 series dates from the 1980s–1990s era of relay-output photoelectric sensing, when discrete relay outputs were the standard interface before NPN/PNP transistor outputs became dominant. These sensors remain useful in relay-logic and ladder-logic control panels where a direct relay contact output is preferred.
This Micro Switch MPC6 MPW11 infrared light beam photoelectric sensor has been tested and is in good working condition. The unit powers on and operates correctly — the beam reflects off a retroreflective target and the relay output switches as expected. The teal housing shows light surface wear consistent with prior use, but the lens, cable leads, and connectors are all in good shape. Please review our photos and contact us with any questions.
