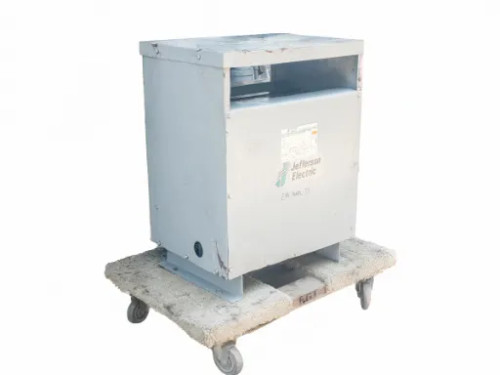

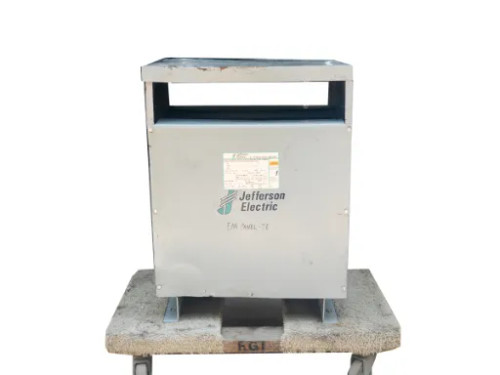

Jefferson Electric 423-3194-055 30 kVA Dry Type Transformer 480V Delta 208Y/120V 3Ph
This is a three-phase dry type transformer rated at 30 kVA, designed to step down 480V Delta primary voltage to...
53257
- SKU:
- 53257
- Availability:
- Usually ships within 3-5 business days due to size and freight requirements.
- Weight:
- 310.00 LBS
- Brand:
- Jefferson Electric
- Model:
- 423-3194-055
- MPN:
- 423-3194-055
- SKU:
- 53257
- Condition:
- Used – Inspected and Tested
- Seller Notes:
- Transformer only; powered and tested at our facility
- Country of Manufacture:
- USA
- Form Factor:
- Floor Mount / Open Frame Dry Type
- Power Requirements:
- 480V Delta Primary, 208Y/120V Secondary
- Transformer Type:
- Dry Type General Purpose
- kVA Rating:
- 30 kVA
- Phase:
- Three Phase
- Primary Voltage:
- 480V Delta
- Secondary Voltage:
- 208Y/120V
- Frequency:
- 60 Hz
- Insulation Class:
- Class AA
- Insulation Temperature Rise:
- 150°C
- Impedance:
- 5.5%
- Date Code:
- M9994
- High Voltage Connection Range:
- 432V – 504V (tapped)
- Certifications:
- UL Listed, UL Listed 4703
- Outdoor Type:
- UL Outdoor Type 3R (with weather shield 423-0001-045)
- Condition Notes:
- Jefferson Electric 423-3194-055 30 kVA dry type transformer. Powered and tested at our facility — in working order; successfully powered SKU 53256. Cosmetic wear: paint scuffing on top, impact damage with rust at one lower corner.
