Description
Lucent Merlin 408 GS/LS-ID-MLC Module 517D29C 108545450 Avaya AT&T PBX
The Lucent Merlin 408 GS/LS-ID-MLC is a line/station expansion module for the AT&T/Lucent Merlin Legend and Merlin Magix PBX systems. As indicated on the module's own label, it supports 4 GS/LS-ID outside lines and 8 MLX digital telephone ports, providing combined analog line access and digital station connectivity in a single plug-in card.
Specifications & What's Included
- Manufacturer: Lucent Technologies (formerly AT&T)
- Module designation: 408 GS/LS-ID-MLC
- Primary part number: 517D29C
- Secondary part number: 108545450
- Outside line ports: 4 × GS/LS-ID (ports 05–08), RJ-type modular jacks

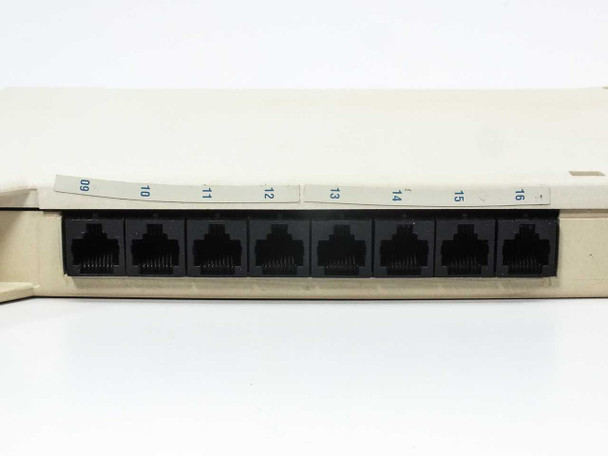

- Digital station ports: 8 × MLX digital telephone (ports 09–16), RJ-type modular jacks
- Total ports: 12 (4 line + 8 station)

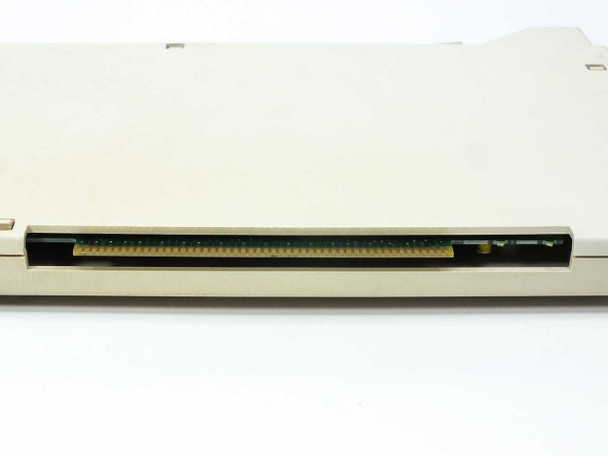

- Backplane interface: multi-pin card-edge connector (slots into Merlin Legend/Magix cabinet)
- Form factor: plug-in expansion module / card
- Compatible systems: Lucent/AT&T Merlin Legend, Merlin Magix PBX
- Module only — no cables or mounting hardware included
Applications
The Merlin Legend and Merlin Magix were AT&T's and then Lucent's mid-range key/hybrid PBX systems aimed at small-to-medium businesses, widely deployed throughout the 1990s and into the 2000s before the Avaya brand took over. The 408 GS/LS-ID-MLC module slots into the Merlin Legend or Magix cabinet to expand its line and station capacity, connecting analog central-office outside lines (GS/LS-ID interface) while simultaneously supporting up to 8 MLX-series digital proprietary telephones. This type of module is still sought by businesses and technicians maintaining legacy Merlin Legend and Magix installations, as well as those refurbishing systems for resale. The GS/LS-ID interface supports ground-start, loop-start, and Caller ID signaling on the outside lines, making it compatible with standard PSTN lines.

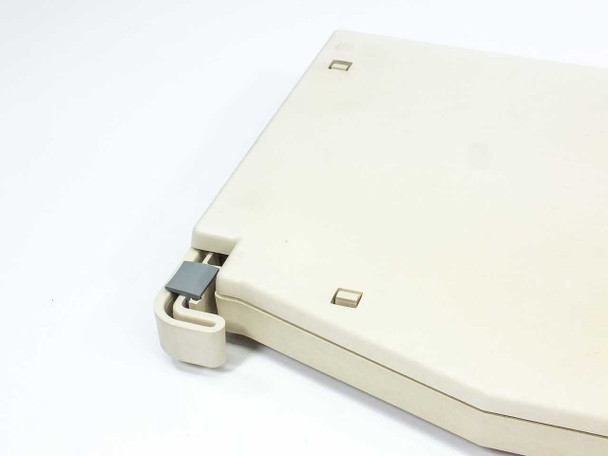

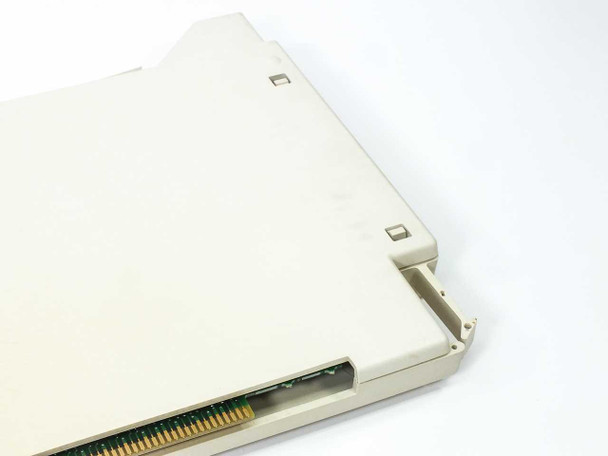

This Lucent Merlin 408 GS/LS-ID-MLC Module (517D29C) was pulled from a working phone system where it had been in active use. It has not been powered up or tested at our facility. The housing shows light surface soiling and minor age-related discoloration consistent with normal office use — visible in our photos. The RJ port rows and card-edge backplane connector appear intact and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Lucent |
Model: |
517D29C |
MPN: |
517D29C |
Secondary Model: |
108545450 |
Type: |
PBX Expansion Module |
SKU: |
49979 |
Compatible With: |
Lucent Merlin Legend, Merlin Magix PBX Systems |
Outside Lines: |
4 GS/LS-ID Outside Lines |
Digital Phone Ports: |
8 MLX (Digital) Telephone Ports |
Interface Type: |
GS/LS-ID, MLX |
Connector Type: |
RJ-type modular jacks |
Number of Ports: |
12 total (4 line + 8 station) |
Form Factor: |
Card/Module |
Bus Interface: |
Multi-pin card-edge connector |
Seller Notes: |
Module only — no cables or mounting hardware included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Lucent Merlin 408 GS/LS-ID-MLC Module (517D29C) was pulled from a working phone system but has not been tested at our facility. Housing shows light soiling and minor age discoloration. Ports and card-edge connector appear intact. |
