McDaniel Controls Pressure Gauge 0-30 PSI 2" Dial SS 316 3/8" NPT Class 1.6

McDaniel Controls Pressure Gauge 0-30 PSI 2" Dial SS 316 3/8" NPT Class 1.6

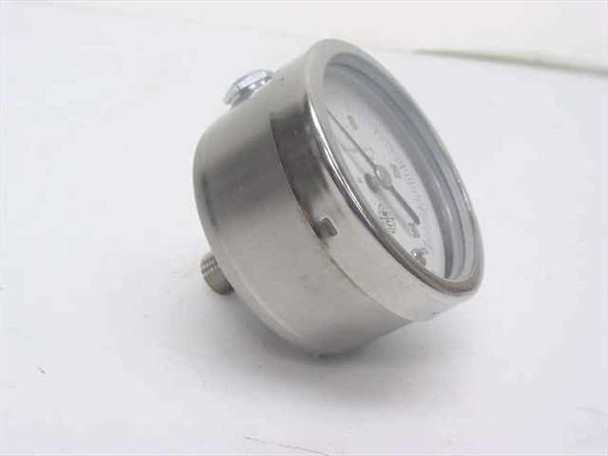

This McDaniel Controls bourdon tube pressure gauge features a 2-inch stainless steel dial and reads both pressure (0 to 30 PSI) and vacuum (0 to -30 in.Hg) on a dual-scale face. The wetted parts are constructed of SS 316 stainless steel, making it suitable for use with a wide range of process fluids and corrosive media. The gauge mounts via a 3/8-inch NPT bottom connection and carries a Class 1.6 accuracy rating with a scale division of 1 in.Hg / 0.5 PSI.

Specifications & What's Included

• Brand: McDaniel Controls Inc.
• Dial Size: 2 inch
• Pressure Range: 0 to 30 PSI
• Vacuum Range: 0 to -30 in.Hg
• Scale Division: 1 in.Hg / 0.5 PSI
• Accuracy Class: Class 1.6
• Wetted Parts Material: Stainless Steel 316 (SS 316)
• Case / Bezel Material: Stainless Steel
• Connection Size: 3/8 in. NPT
• Connection Location: Bottom / Lower Mount
• Country of Manufacture: France (Bourdon – Made in France, as marked on dial)
• Includes: Gauge only — no additional accessories

Applications

McDaniel Controls gauges are used across a broad range of industrial and process applications where reliable pressure and vacuum monitoring is required. The SS 316 wetted-parts construction makes this gauge well suited for chemical processing, petrochemical, oil and gas, food and beverage, and laboratory environments where compatibility with corrosive or aggressive media is needed. The dual PSI/in.Hg scale makes it useful for monitoring both positive pressure and vacuum conditions on the same instrument. The compact 2-inch dial and lower-mount NPT connection fit standard panel, pipe, or manifold installations commonly found in process control and fluid handling systems.
