IBM

Maxtor D540X-4K 20GB 3.5" IDE Hard Drive PATA DiamondMax ATA-133

(No reviews yet) Write a Review
SKU:
19039
MPN:
19K1565
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
3.00 LBS
Shipping:
Calculated at Checkout
  • Maxtor D540X-4K 20GB 3.5" IDE hard drive – rear connector view showing 40-pin IDE and 4-pin Molex power connectors

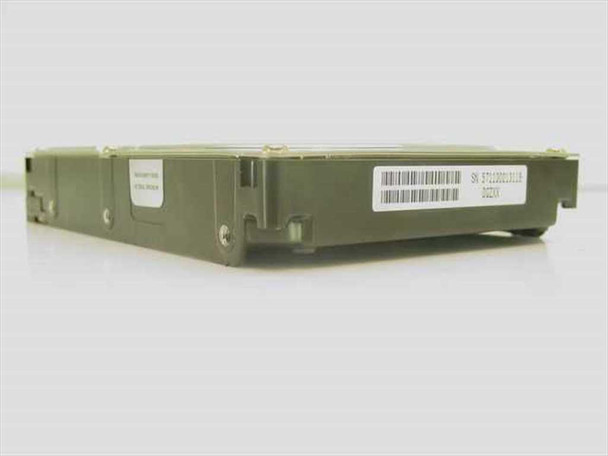

  • Maxtor D540X-4K 20GB 3.5" IDE hard drive – side view showing barcode and serial number label

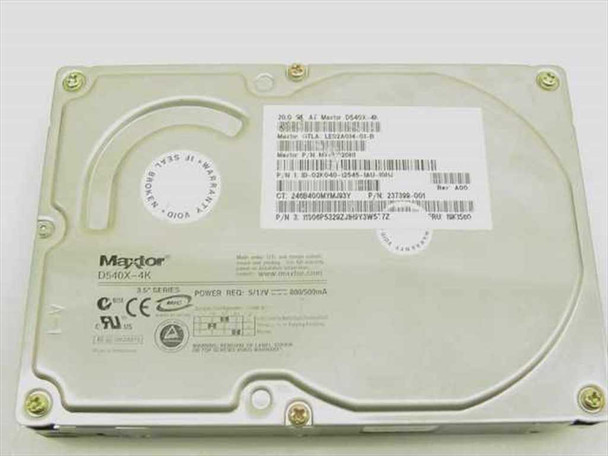

  • Maxtor D540X-4K 20GB 3.5" IDE hard drive – top label view showing model, specs, and warranty void sticker
$12.90
Was: $35.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Maxtor D540X-4K 20GB 3.5" IDE Hard Drive PATA DiamondMax ATA-133

The Maxtor D540X-4K is a 20GB 3.5-inch internal hard drive from Maxtor's DiamondMax series, using the parallel ATA (PATA/IDE) interface with ATA-133 support. It connects via the standard 40-pin IDE ribbon cable and 4-pin Molex power connector found on desktop motherboards and power supplies of its era. This drive has been tested, formatted, and wiped at our facility and is in good working condition.

Specifications & What's Included

  • Brand: Maxtor
  • Model: D540X-4K
  • Series: DiamondMax
  • Capacity: 20 GB
  • Form Factor: 3.5" internal
  • Interface: IDE / PATA (ATA-133)
  • Connector: 40-pin IDE data + 4-pin Molex power
  • Power Requirements: 5V / 12V DC
  • Drive only — no cables or mounting hardware included

Applications

The Maxtor DiamondMax D540X series was a mainstream desktop hard drive line produced in the early-to-mid 2000s, targeting home and office desktop PCs using the then-standard IDE/PATA interface. ATA-133 (Ultra DMA Mode 6) was the final and fastest iteration of the parallel ATA standard before the industry transitioned to Serial ATA (SATA). These drives are compatible with any desktop or tower PC motherboard featuring an IDE controller — common in systems from roughly 1999 through 2006. Today they are used for retro PC builds, legacy system repairs, data recovery work, and replacement drives in older industrial or embedded systems that still rely on PATA storage.

Condition: Used
This Maxtor D540X-4K 20GB 3.5" IDE hard drive has been tested, formatted, and wiped at our facility and is in good working condition. All previous data has been securely erased. The drive shows normal wear consistent with previous use — the top label has a void sticker and there are minor scuffs on the metal casing, but no dents or damage affecting function. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Maxtor
Model:
D540X-4K
MPN:
D540X-4K
SKU:
19039
Type:
Internal Hard Drive
Storage Capacity:
20 GB
Interface:
IDE/ATA (PATA)
ATA Standard:
ATA-133
Form Factor:
3.5"
Drive Series:
DiamondMax
Power Requirements:
5V / 12V DC
Country/Region of Manufacture:
United States
Compatible With:
Desktop PCs with IDE/PATA motherboard connector
Seller Notes:
Tested, formatted, and wiped. All previous data securely erased.
Condition Notes:
This Maxtor D540X-4K 20GB IDE hard drive has been tested, formatted, and wiped. In good working condition. All previous data securely erased. Normal cosmetic wear present.
California Prop 65 Warning:
WARNING: This product can expose you to chemicals including lead and lead compounds, and DEHP (a phthalate), which are known to the State of California to cause cancer and birth defects or other reproductive harm. Go to P65Warnings.ca.gov
