Maxtor 90645D3 6.4GB 3.5" IDE Internal Desktop Hard Drive 5400 RPM Dell 9144D
The Maxtor 90645D3 is a 3.5-inch IDE (PATA) internal hard drive with 6.4 GB of storage capacity spinning at 5400 RPM. It connects via a standard 40-pin IDE interface and draws power from a standard 4-pin Molex connector, making it a direct fit for legacy desktop systems that use parallel ATA storage.
Specifications & What's Included
- Model: Maxtor 90645D3
- Dell DPN: 9144D
- Capacity: 6.4 GB
- Form Factor: 3.5"
- Interface: IDE / ATA (Parallel ATA / PATA), 40-pin
- Rotational Speed: 5400 RPM
- Cylinders: 12,495
- Heads: 16
- Sectors: 63
- HDA/Uplevel: 13A
- PCBA/Uplevel: 10A
- Unique/Uplevel: 52A
- Power: 12V / 5V (standard 4-pin Molex)
- Jumper configurations: Master/Single, Slave (per label)
- Manufactured in Thailand
- Drive only — no cables or accessories included
Applications
The Maxtor 90645D3 belongs to the mid-to-late 1990s generation of parallel ATA desktop hard drives, when IDE was the dominant desktop storage interface before SATA took over in the early 2000s. Drives like this were standard equipment in Pentium-era Windows 95, Windows 98, and early Windows 2000 desktop PCs, as well as compatible Dell and other OEM systems of the period. Today they are used primarily for restoring or maintaining legacy desktop computers, vintage PC builds, and retro computing projects where a period-correct IDE drive is needed. The 6.4 GB capacity and standard 3.5-inch form factor make it compatible with any system that accepts an IDE/ATA hard drive — including older Dells, Compaq, HP, and clone desktops from the same era.

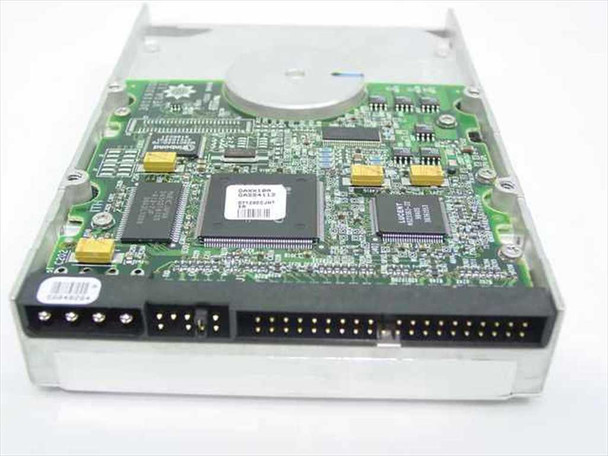

This Maxtor 90645D3 6.4GB 3.5" IDE Internal Desktop Hard Drive has been inspected and appears to be in good used condition. The drive shows normal wear consistent with prior use. The label is intact and readable, and the IDE and power connectors are present and undamaged. This drive was tested and is in good working condition. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Maxtor |
Model: |
90645D3 |
MPN: |
90645D3 |
Secondary Model: |
Dell DPN 9144D |
Type: |
Internal Hard Drive (HDD) |
SKU: |
14214 |
Storage Capacity: |
6.4 GB |
Interface: |
IDE (ATA / PATA) |
Form Factor: |
3.5" |
Rotational Speed: |
5400 RPM |
Cylinders: |
12495 |
Heads: |
16 |
Sectors: |
63 |
HDA/Uplevel: |
13A |
PCBA/Uplevel: |
10A |
Unique/Uplevel: |
52A |
Power Requirements: |
12V, 5V |
Condition: |
Used – Inspected |
Compatible With: |
Dell desktops, legacy IDE systems |
Country/Region of Manufacture: |
Thailand |
Seller Notes: |
Drive only — no cables or accessories included. |
Condition Notes: |
Maxtor 90645D3 6.4GB 3.5" IDE hard drive. Tested and in good working condition. Normal used wear. Label intact, IDE and power connectors undamaged. Please contact us with any questions. |
