Maxtor 82400D4 2.4GB 3.5" IDE Hard Drive Compaq 296679-001 270786-001
The Maxtor 82400D4 is a 3.5-inch ATA/IDE hard drive with 2.4 GB of formatted capacity. It was supplied as a Compaq-qualified spare (part number 296679-001) and carries Maxtor's own part number 270786-001. The drive is jumpered Master/Single from factory and includes Cable Select support (J48 installed).
Specifications & What's Included
- Manufacturer: Maxtor
- Model: 82400D4
- Compaq Spare Part Number: 296679-001
- Maxtor Part Number: 270786-001
- Capacity: 2.4 GB
- Interface: IDE (ATA / PATA)
- Form Factor: 3.5"
- Cylinders: 4,708
- Heads: 16
- Sectors per Track: 63
- Jumper Setting: Master/Single (J50 On); Slave (J50 Off)
- Cable Select: J48 Installed
- HDA/Uplevel: 03A
- PCBA/Uplevel: 09A
- Unique/Uplevel: 31A
- Power: 12V / 5V
- Manufacture Date: 08-25-97
- Country of Manufacture: Singapore
- Includes: Drive only — no cables or mounting hardware
Applications
Mid-to-late 1990s IDE hard drives like the Maxtor 82400D4 were the standard internal storage option for desktop PCs and workstations of the era, and were commonly used in Compaq Deskpro, Presario, and ProLiant desktop systems. ATA/IDE (also called PATA) was the dominant desktop storage interface from the early 1990s through the mid-2000s, before SATA superseded it. Drives in this capacity range are still sought today for maintaining legacy Compaq and IBM-compatible systems, retro computing builds, embedded industrial controllers, and older CNC or point-of-sale machines that require a specific IDE drive to match original firmware or partition geometry. The 2.4 GB capacity is also appropriate for vintage operating systems such as Windows 95, Windows 98, and MS-DOS that have partition-size limitations. This drive was manufactured in August 1997 and is representative of the late Diamond/DiamondMax generation of Maxtor IDE drives.

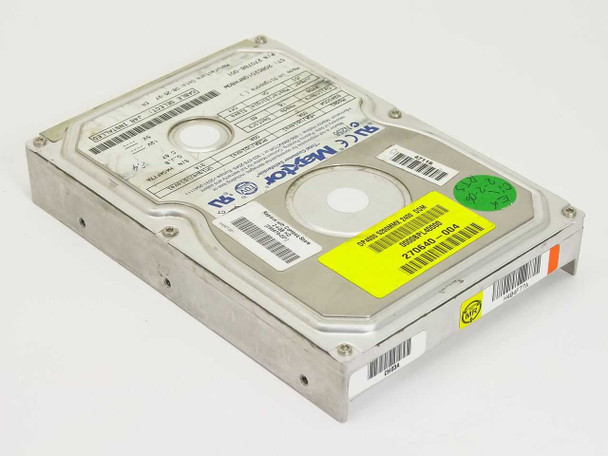

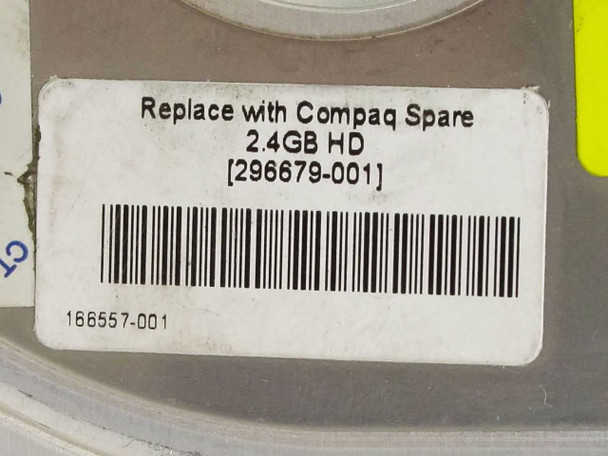

This Maxtor 82400D4 2.4GB 3.5" IDE hard drive has been tested and is in good working order. The drive is jumpered Master/Single as found. Cosmetically it shows normal light wear consistent with prior use. The Compaq spare label (296679-001) is intact on the top of the drive. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Maxtor |
Model: |
82400D4 |
MPN: |
270786-001 |
Secondary Model: |
296679-001 |
Type: |
Internal Hard Drive (HDD) |
SKU: |
15885 |
Condition: |
Used – Inspected and Tested |
Storage Capacity: |
2.4 GB |
Interface: |
IDE (ATA / PATA) |
Form Factor: |
3.5" |
Cylinders: |
4708 |
Heads: |
16 |
Sectors per Track: |
63 |
Jumper Setting: |
Master/Single (J50 On); Slave (Off); Cable Select: J48 Installed |
HDA/Uplevel: |
03A |
PCBA/Uplevel: |
09A |
Unique/Uplevel: |
31A |
Manufacture Date: |
08-25-97 |
Country/Region of Manufacture: |
Singapore |
Compatible With: |
Compaq systems requiring spare part 296679-001 |
Seller Notes: |
Drive only; no cables or accessories included. |
Power Requirements: |
12V / 5V |
Condition Notes: |
Maxtor 82400D4 2.4GB IDE hard drive, Compaq spare 296679-001. Tested and in good working order. Jumpered Master/Single. Normal cosmetic wear. Drive only, no cables included. |
