Description
Maxtor 51024U2 10.2GB IDE Hard Drive 3.5" 7200RPM DiamondMax Plus 40 ATA
The Maxtor 51024U2 is a 3.5-inch IDE (ATA/PATA) hard drive from the DiamondMax Plus 40 product line, offering 10.2GB of storage at 7200RPM. This drive was manufactured in Singapore in June 2000 and represents Maxtor's high-performance desktop storage from the early 2000s. It has been wiped, formatted, and tested at our facility — it boots to a waiting C:/ prompt and is in good working order.
Specifications & What's Included
- Model: Maxtor 51024U2
- Product Line: DiamondMax Plus 40
- Capacity: 10.2 GB
- Interface: IDE (ATA / PATA) — 40-pin connector
- Form Factor: 3.5-inch internal desktop HDD
- Rotational Speed: 7200 RPM

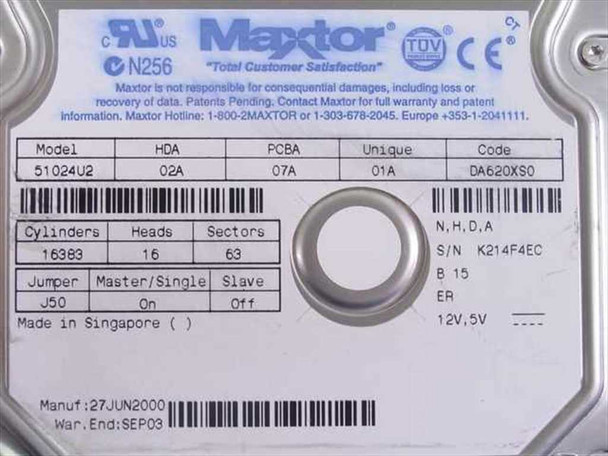

- Cylinders: 16,383 | Heads: 16 | Sectors per Track: 63
- HDA Revision: 02A | PCBA Revision: 07A | Unique: 01A
- Drive Code: DA620XS0
- Jumper Settings: Master/Single (J50 On) / Slave (J50 Off)
- Power: 12V, 5V (standard 4-pin Molex)
- Country of Manufacture: Singapore
- Manufacture Date: 27 June 2000
- Drive only — no cables or brackets included
Applications
The DiamondMax Plus 40 series was Maxtor's mainstream high-performance desktop drive line at the turn of the millennium, targeting home PCs and workstations running Windows 98, Windows ME, and Windows 2000. IDE (PATA) was the dominant internal storage interface of the era, supported natively on virtually every desktop motherboard with an ATA/33 or ATA/66 controller from the late 1990s through the mid-2000s. A 10GB drive of this generation is well-suited for vintage PC builds, retro gaming rigs, period-correct system restorations, and legacy industrial or embedded systems that require a specific IDE drive to match original hardware. It also sees use as a secondary storage drive in older machines where a modern SATA drive cannot be used without an adapter. The 7200RPM spin speed placed this drive in the performance tier of its day, above the more common 5400RPM alternatives.
This Maxtor 51024U2 DiamondMax Plus 40 10.2GB IDE hard drive has been wiped, formatted, and tested at our facility — it boots cleanly to a waiting C:/ prompt. The drive is in good working order. The label and top cover show light surface wear consistent with prior use. The 40-pin IDE connector and 4-pin power connector appear clean and undamaged. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Maxtor |
Model: |
51024U2 |
MPN: |
51024U2 |
Type: |
Internal Hard Drive (HDD) |
SKU: |
16343 |
Storage Capacity: |
10.2 GB |
Interface: |
IDE (ATA / PATA) |
Form Factor: |
3.5" |
Rotational Speed: |
7200 RPM |
Product Line / Series: |
DiamondMax Plus 40 |
HDA Revision: |
02A |
PCBA Revision: |
07A |
Unique Code: |
01A |
Drive Code: |
DA620XS0 |
Cylinders: |
16383 |
Heads: |
16 |
Sectors per Track: |
63 |
Jumper Setting: |
Master/Single (J50 On); Slave (J50 Off) |
Power Requirements: |
12V, 5V |
Country/Region of Manufacture: |
Singapore |
Manufacture Date: |
27 June 2000 |
Warranty End (Original): |
September 2003 |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Drive wiped and formatted; boots to a waiting C:/ prompt. |
Condition Notes: |
Maxtor 51024U2 10.2GB IDE hard drive wiped, formatted, and tested — boots to a C:/ prompt and is in good working order. Light surface wear on the label. IDE and power connectors clean. |
