Description

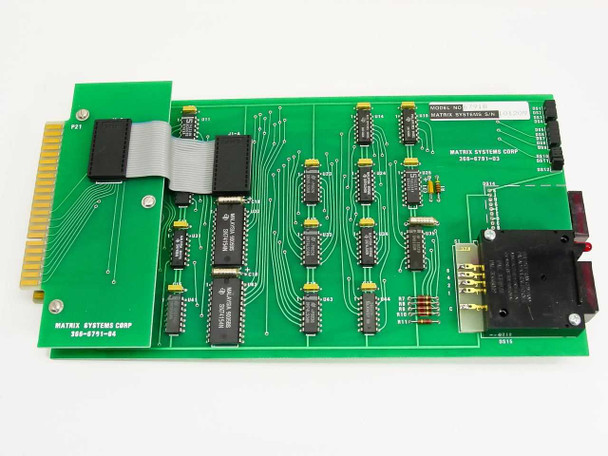

Matrix Systems Corp 6791B 6800 Series Cage Decoder Card Status Monitor 366-6791
A decoder card module for Matrix Systems 6800 Series card cages. Decodes 16-bit parallel TTL words and monitors status within the cage assembly.
Specifications & What's Included

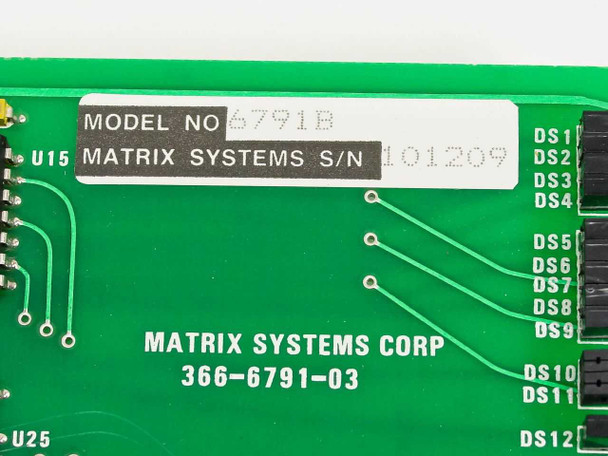

- Model: 6791B

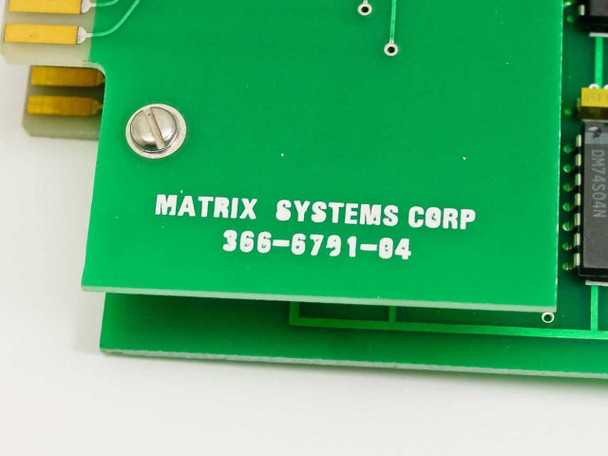

- MPN: 366-6791-03 / 366-6791-04
- Interface: 16-bit Parallel TTL
- Form Factor: Card/Module
- Compatible with Matrix Systems 6800 Series Card Cage
- Card only; no accessories included
Applications
The 6791B decoder card was used in Matrix Systems 6800 Series industrial control and telecommunications equipment to manage address decoding and cage status monitoring. This card type supported parallel TTL communications within modular card cage systems common in telecommunications switching and industrial control applications from the 1980s–1990s. It connects directly to the cage backplane and functions as part of the addressing and monitoring subsystem.
Condition: Used

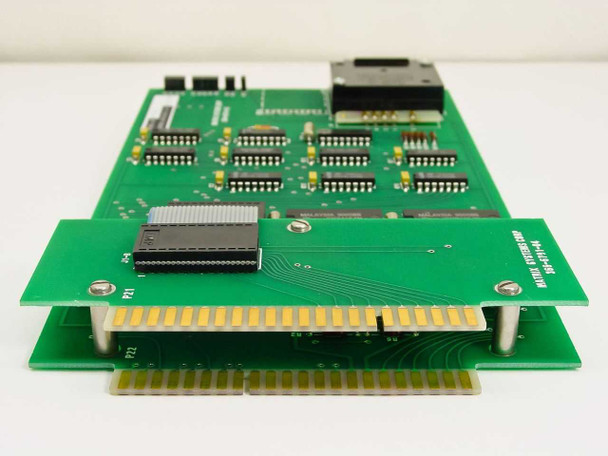

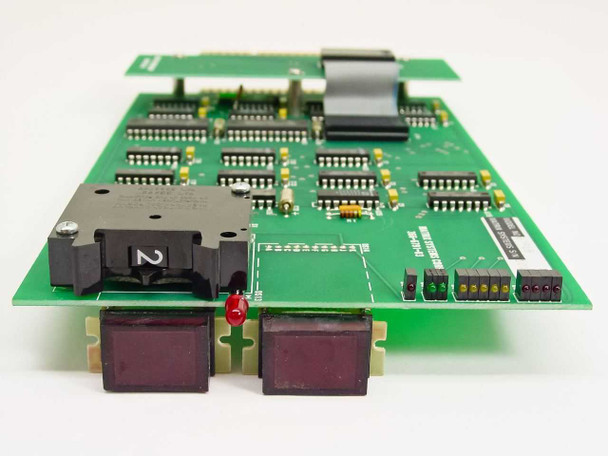

This Matrix Systems Corp 6791B 6800 Series Cage Decoder Card has been inspected and is in good condition. The board shows normal light wear consistent with prior use in a card cage environment. Both status monitor display windows are present and intact, and the gold edge connectors appear clean. No visible damage, broken components, or missing parts. Please view our photo set and contact us if you have any questions.
This Matrix Systems Corp 6791B 6800 Series Cage Decoder Card has been inspected and is in good condition. The board shows normal light wear consistent with prior use in a card cage environment. Both status monitor display windows are present and intact, and the gold edge connectors appear clean. No visible damage, broken components, or missing parts. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Matrix Systems Corp |
Model: |
6791B |
MPN: |
366-6791-03 |
Secondary Model: |
366-6791-04 |
Type: |
Decoder Card with Status Monitor |
SKU: |
39908 |
Compatible With: |
Matrix Systems 6800 Series Card Cage |
Interface Type: |
16-bit Parallel TTL |
Form Factor: |
Card / Module |
Function: |
Decodes 16-bit parallel TTL word for 6800 Series Card Cage |
Condition: |
Used – Inspected and in Good Condition |
Seller Notes: |
Card only; no accessories included. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
Matrix Systems Corp 6791B 6800 Series Cage Decoder Card. Inspected and in good condition. Board shows light normal wear; edge connectors clean, display windows intact. No visible damage. |
