Marathon JWC 48A17O226B Direct Drive Blower Motor 3/4 HP 115V 1625 RPM 48T

Marathon JWC 48A17O226B Direct Drive Blower Motor 3/4 HP 115V 1625 RPM 48T

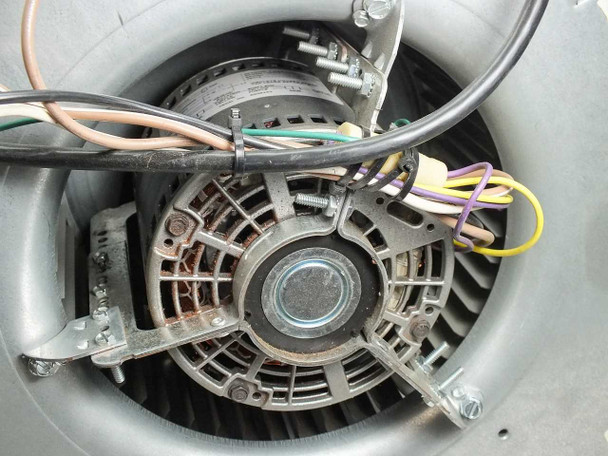

The Marathon JWC 48A17O226B is a single-phase AC direct drive centrifugal blower unit combining a 3/4 HP Marathon Electric motor with a backward-curved squirrel cage blower wheel housed in a galvanized scroll. The assembly mounts to a blue powder-coated steel panel fitted with a louvered rectangular outlet grille. Power cord terminates in bare wire leads — no plug is attached.

Specifications & What's Included

• Model: JWC 48A17O226B
• Horsepower: 3/4 HP
• Voltage: 115V AC
• Amperage: 8.7 A
• Speed: 1625 RPM
• Phase: Single Phase
• Frequency: 60 Hz
• Frame: 48T
• Service Factor: 1.0
• NEMA Code Letter: C
• Ambient Temperature Rating: 40°C
• Enclosure: Thermally Protected

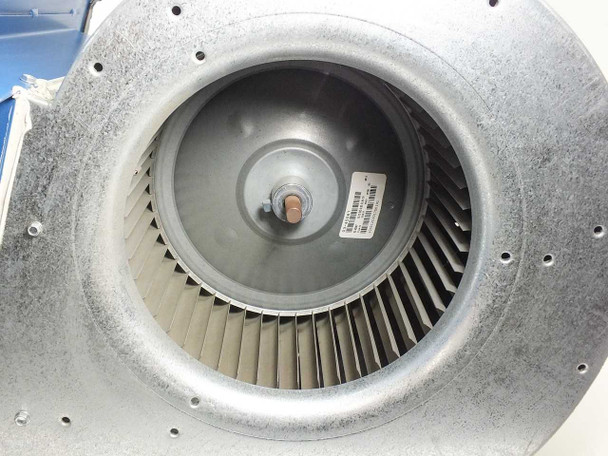

• Blower Wheel: Backward-curved centrifugal (squirrel cage) impeller

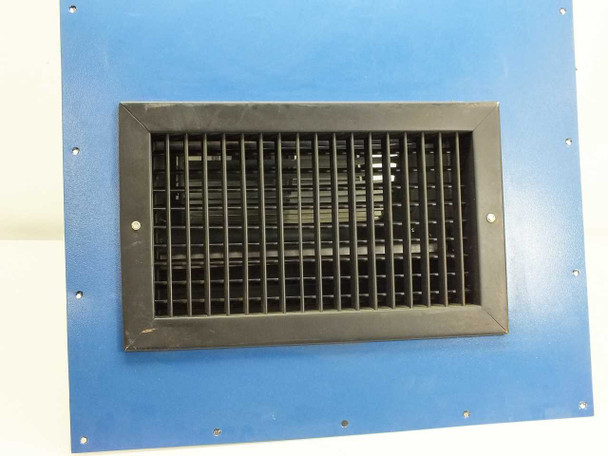

• Housing: Blue powder-coated steel panel with black louvered outlet grille
• Scroll Housing: Galvanized steel
• Power Connection: Bare wire leads — no plug installed
• Overall Dimensions: 24 x 22 x 19 inches

Applications

Direct drive centrifugal blower units like this Marathon 48A17O226B are used in a wide range of HVAC, industrial, and commercial ventilation applications. The direct drive configuration — where the blower wheel mounts directly on the motor shaft — eliminates belt and pulley wear, making these units a common choice for air handling systems, exhaust ventilation, equipment cooling, and climate control in commercial buildings, industrial facilities, and cleanroom or laboratory environments. The 48T frame is a standard NEMA motor frame, and at 3/4 HP with a 115V single-phase supply, this unit is well suited to retrofit and replacement installations where a compact, self-contained blower assembly is needed. The louvered steel outlet panel allows direct duct or plenum connection.
