Description
MagTek 21050145 Magnetic Stripe Card Reader Track 1 2 3 101mm TTL Rev G

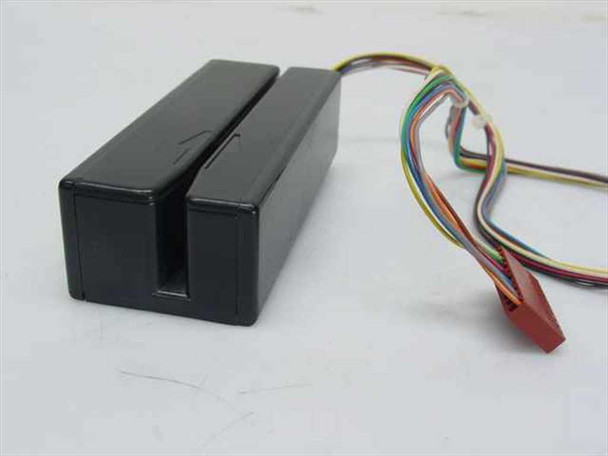

Magnetic stripe card reader with 101mm read head supporting all three tracks (Track 1, 2, and 3). TTL interface via multi-pin pigtail connector with red DIP header for embedded or inline mounting applications.
Specifications & What's Included
- Model: MagTek 21050145 (Secondary models 21006516 / 21006526)
- Tracks Supported: Track 1, Track 2, Track 3
- Read Head Length: 101mm

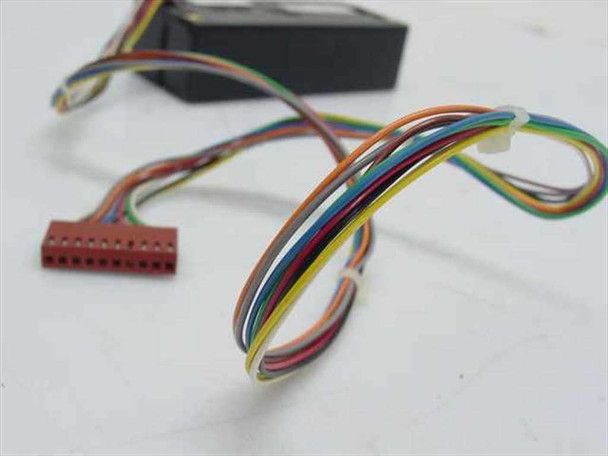

- Interface: TTL with multi-pin pigtail and red DIP connector

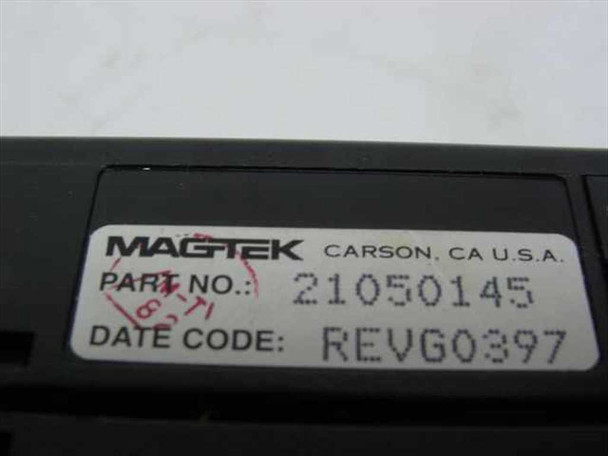

- Hardware Revision: Rev G (REVG0397, March 1997)
- Manufactured in Carson, CA, USA
- Form Factor: Inline / Embedded Mount
- Includes attached TTL pigtail cable with connector
Applications
Magnetic stripe readers of this type were used in point-of-sale systems, access control terminals, banking equipment, and telecommunications infrastructure. The TTL interface and embedded form factor suited integration into larger industrial and telecom systems from the 1990s onward. Compatible with systems supporting standard TTL-level card data signals.
Condition: Used

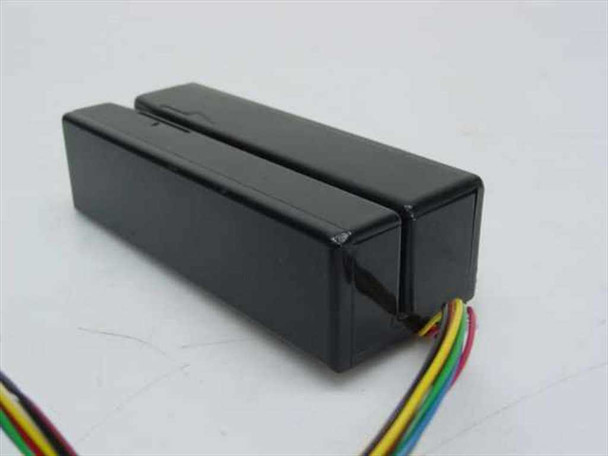

This MagTek 21050145 Magnetic Stripe Card Reader has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The black housing is intact with no cracks; the card slot is clean and clear. The attached multi-color TTL pigtail cable and red multi-pin connector are present and show no damage. Normal light surface scuffing consistent with prior installation is visible on the housing. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
This MagTek 21050145 Magnetic Stripe Card Reader has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in service. The black housing is intact with no cracks; the card slot is clean and clear. The attached multi-color TTL pigtail cable and red multi-pin connector are present and show no damage. Normal light surface scuffing consistent with prior installation is visible on the housing. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
MagTek |
Model: |
21050145 |
MPN: |
21050145 |
Secondary Model: |
21006516 / 21006526 |
Type: |
Magnetic Stripe Card Reader |
SKU: |
26494 |
Tracks Supported: |
Track 1, Track 2, Track 3 |
Read Head Length: |
101mm |
Interface: |
TTL Pigtail / Ribbon Connector |
Connector Type: |
Multi-pin pigtail with red DIP header |
Hardware Revision: |
Rev G (REVG0397) |
Date Code: |
REVG0397 (March 1997) |
Country/Region of Manufacture: |
United States (Carson, CA) |
Form Factor: |
Inline / Embedded Mount |
Color: |
Black |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes attached multi-color TTL pigtail cable with red DIP connector |
Condition Notes: |
MagTek 21050145 Magstripe Card Reader, used, pulled from a working environment. Housing intact, card slot clean, TTL pigtail cable and connector present. Light surface wear only. Good used condition. |
