Magnetran 99-00250-00 RF Transformer 10000W 13.56MHz 208VAC 3-Phase 50/60Hz
RF transformer rated at 10,000 watts operating at 13.56 MHz. Designed for three-phase 208 VAC 50/60 Hz line input with selectable tap voltages. Open frame, floor-mount construction.
Specifications & What's Included
- Power Rating: 10,000 watts @ 13.56 MHz
- Input: 208 VAC, three-phase, 50/60 Hz
- Tap Voltages: 240, 208, −10, 0, +10 (per phase)
- Form Factor: Open frame, floor mount
- Manufacturer: Magnetran / RF Power Products Inc.
- Model: 99-00250-00 | Date of Manufacture: April 1996
- Unit only; no accessories included
Applications
This transformer was used in 13.56 MHz RF plasma systems for semiconductor processing and etch applications. Commonly found in plasma etch tools and integrated with RF Power Products (RFPP) generator systems. Suitable for industrial RF power distribution in manufacturing environments requiring stable, regulated RF coupling.
Please note: We may have multiple units of this item in stock. The unit you receive may vary slightly from the one shown in the photos. All units are functionally equivalent and inspected to the same standard.

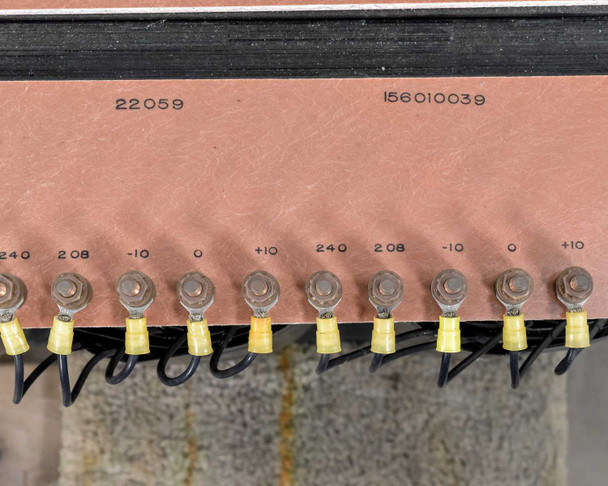

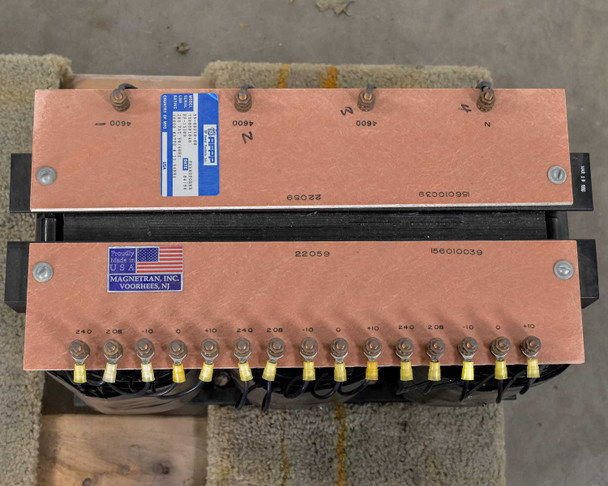

This Magnetran 99-00250-00 three-phase RF transformer has been inspected and appears to be in good condition. It was pulled from a working environment where it was previously in active use. Externally, the unit shows typical signs of prior service use — the resin-wrapped coil assemblies are intact with no visible damage, the copper terminal bus bars show moderate oxidation consistent with age and use, and the ring-terminal wiring harness is intact. The mounting base frame is solid. The tap voltage labels (240, 208, -10, 0, +10) on the terminal bus are legible. Date of manufacture per the RFPP nameplate label is April 1996. Please view our photo set and contact us if you have any questions.
