Description
Magnetic Peripherals 94093601 Removable Storage Drive w/ Power Supply 81542301

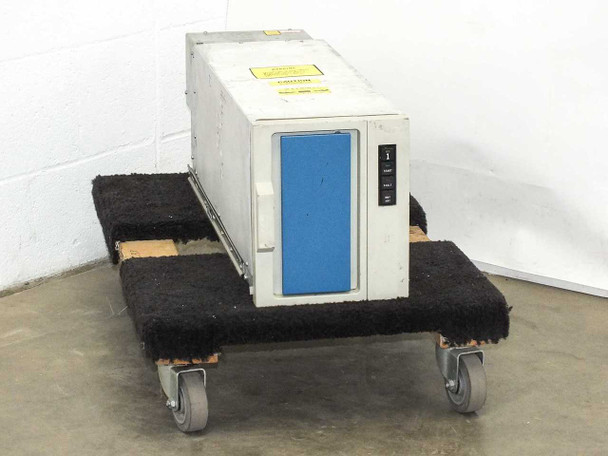

A freestanding removable storage drive system designed for Control Data Corporation mainframe and midrange systems. This unit includes the integrated 81542301 power supply and Donaldson air filter.
Specifications & What's Included
- Model: 94093601 (Series Code 21)
- Power Supply: 300W, 81542301 PSU with dual voltage input (100-120V / 208-240V, 50/60Hz)
- Drive Power Rating: 200W
- Output rails: +5.1V (5A max), -5.1V (5A max), +24V (1.75A/5A PK), -24V (1.75A/5A PK), +6V (5A/8A start, 1.7A run)

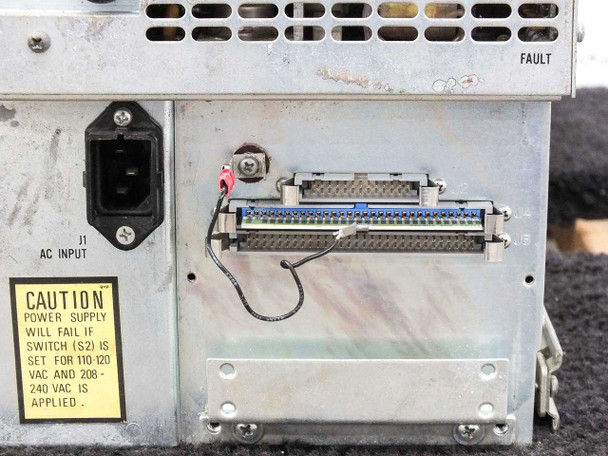

- Interface: 50-pin parallel data connector (rear)
- AC Input: IEC C14 inlet

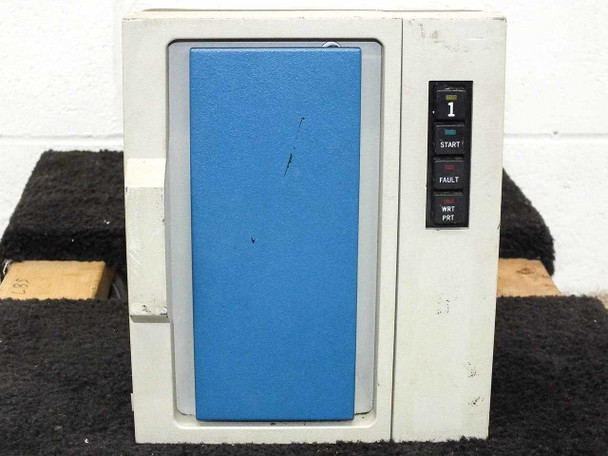

- Controls: START, FAULT, WRT PRT indicator buttons

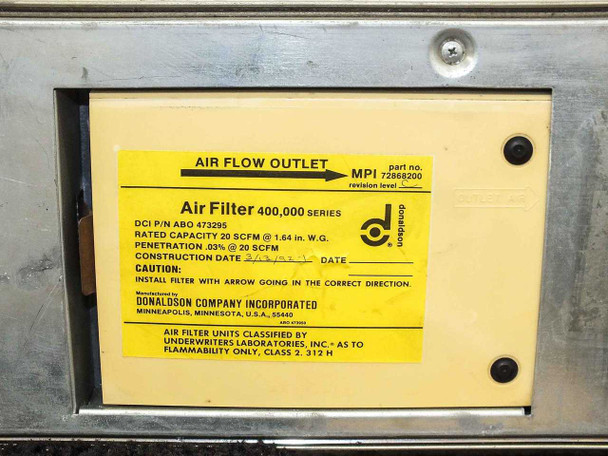

- Air Filter: Donaldson MPI 400,000 Series, 20 SCFM @ 1.64 in. W.G.
Applications
This removable storage drive was used with Control Data Corporation mainframe and midrange computer systems, providing external data storage and backup capabilities. The unit operates as a freestanding desktop cabinet and connects via its 50-pin parallel interface to compatible CDC systems.
Condition: Used
This Magnetic Peripherals 94093601 Removable Storage Drive with 81542301 Power Supply has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The cabinet exterior shows typical scuffs and surface wear consistent with prior service use, and the blue front door panel has some light scratching visible. The rear power supply section, ventilation grille, switches, and circuit breakers all appear intact and undamaged. The 50-pin data connector and IEC AC input on the rear are present and look to be in good shape. Please view our photo set and contact us if you have any questions.
This Magnetic Peripherals 94093601 Removable Storage Drive with 81542301 Power Supply has been inspected and is in good used condition. It was pulled from a working environment where it was in active use. The cabinet exterior shows typical scuffs and surface wear consistent with prior service use, and the blue front door panel has some light scratching visible. The rear power supply section, ventilation grille, switches, and circuit breakers all appear intact and undamaged. The 50-pin data connector and IEC AC input on the rear are present and look to be in good shape. Please view our photo set and contact us if you have any questions.
Warranty Information
We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose
Additional Information
Brand: |
Magnetic Peripherals Inc. |
Model: |
94093601 |
MPN: |
94093601 |
Secondary Model: |
81542301 |
SKU: |
48392 |
Type: |
Removable Storage Drive |
Series Code: |
21 |

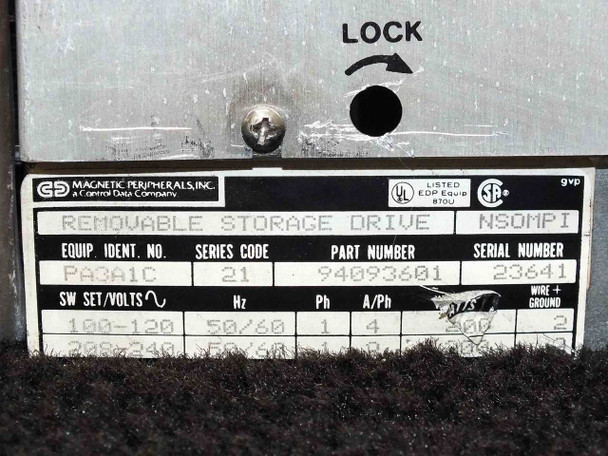

Equipment ID Number: |
PA3A1C |
Power Supply Part Number: |
81542301 |
Drive Input Voltage: |
100-120V / 208-240V, 50/60Hz |
Drive Power Rating: |
200W |
Drive Input Current (100-120V): |
4A |
Drive Phase: |
Single Phase |
Power Supply Input Voltage: |
100-120V / 208-240V, 50/60Hz |
Power Supply Power Rating: |
300W |
Power Supply Input Current (100-120V): |
7.5A |
Power Supply Input Current (208-240V): |
5A |
Power Supply Output +5.1V: |
5A maximum |
Power Supply Output -5.1V: |
5A maximum |
Power Supply Output +24V: |
1.75A / 5A PK |
Power Supply Output -24V: |
1.75A / 5A PK |
Power Supply Output +6V: |
5A/8A Start, 1.7A Run |
Air Filter Part Number: |
72868200 (Donaldson MPI) |
Air Filter DCI P/N: |
473295 |
Air Filter Series: |
400,000 Series |
Air Filter Rated Capacity: |
20 SCFM @ 1.64 in. W.G. |
Air Filter Penetration: |
0.03% @ 20 SCFM |
Front Panel Controls: |
START, FAULT, WRT PRT indicator buttons |
Drive Interface Connector: |
50-pin parallel data connector (rear) |
AC Input Connector: |
IEC C14 inlet (rear, J1) |
Condition: |
Used – Pulled from Working Environment |
Seller Notes: |
Includes integrated Magnetic Peripherals 81542301 power supply and Donaldson MPI air filter |
Country/Region of Manufacture: |
United States |
Form Factor: |
Freestanding / Desktop Cabinet |
Compatible With: |
Control Data Corporation (CDC) mainframe/midrange systems |
Condition Notes: |
Magnetic Peripherals 94093601 Removable Storage Drive with 81542301 PSU. Inspected, in good used condition. Pulled from a working environment. Cabinet shows typical surface wear. Connectors intact. |
