Magnetek 8-158964-02 Century AC Motor 1HP 1725 RPM 115/230V Single Phase R56Y
The Magnetek 8-158964-02 is a Century-series single-phase AC electric motor rated at 1 horsepower and 1725 RPM. It is dual-voltage capable, wired for either 115V or 230V single-phase operation, making it adaptable to a range of shop and industrial power configurations. The motor carries continuous duty rating with built-in thermal protection and was manufactured in the USA.
Specifications & What's Included

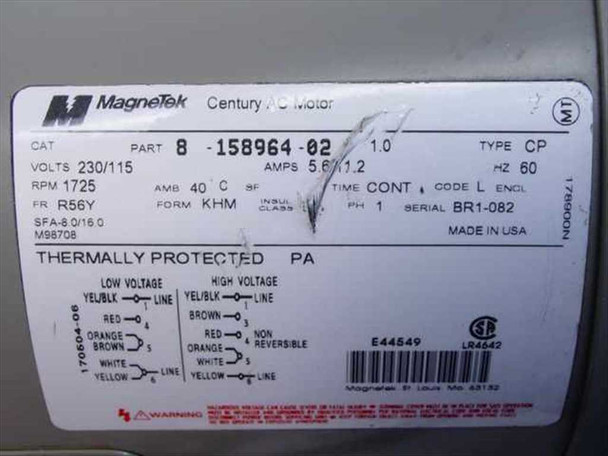

- Brand: Magnetek — Century series
- Part Number: 8-158964-02
- Motor Type: CP
- Horsepower: 1 HP
- Speed: 1725 RPM
- Voltage: 115/230V (dual voltage — field selectable)
- Phase: Single Phase
- Frequency: 60 Hz
- Current Draw: 11.2A at 115V / 5.6A at 230V
- Service Factor: 1.0
- Frame: R56Y
- Form: KHM
- Duty: Continuous (CONT)
- Insulation Class: L
- Ambient Temperature Rating: 40°C
- Enclosure: PA (thermally protected)
- Serial: BR1-082
- Country of Manufacture: USA

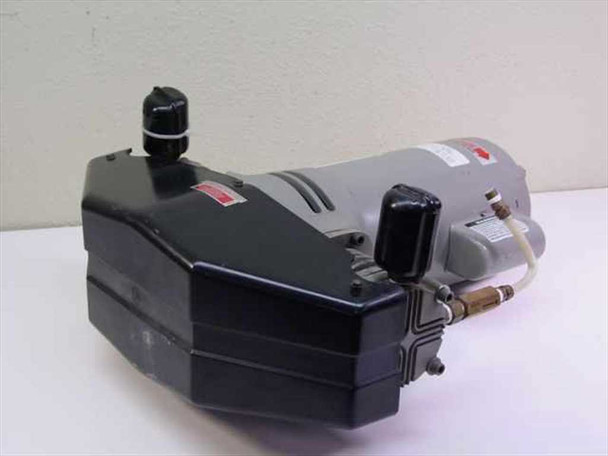

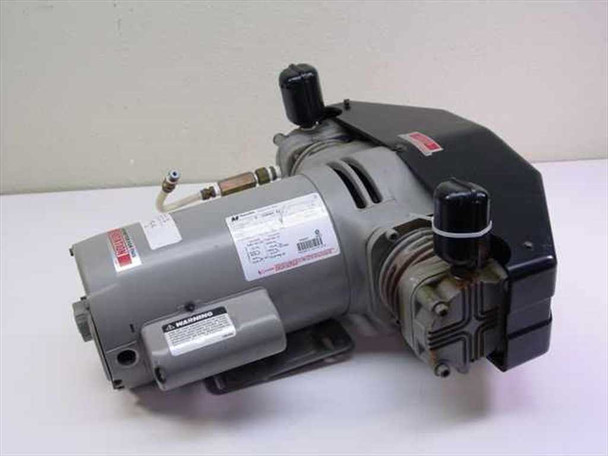

- Note: Motor is photographed mounted to a pump/compressor head — contact us to confirm exactly what is included in the sale
Applications
Magnetek's Century-series AC motors are general-purpose single-phase induction motors used widely in light industrial, commercial, and shop equipment. The R56Y frame and KHM form factor are commonly found driving air compressors, vacuum pumps, blowers, conveyors, and similar belt- or direct-drive machinery. Dual-voltage capability (115V/230V) makes this motor well suited for both standard residential-supply tools and 230V shop circuits. The continuous-duty rating and integrated thermal protection make it appropriate for applications requiring sustained run times. Magnetek's Century motor line dates to mid-twentieth-century American manufacturing and remains a well-recognized brand in the replacement motor market; these motors are still actively sought for repair and replacement of legacy industrial and HVAC equipment.
This Magnetek Century AC Motor (part 8-158964-02) has been inspected and is in good condition. The motor body and housing show light wear consistent with prior industrial use, as visible in the photos. The unit was photographed mounted to a pump/compressor assembly; buyers should confirm with us exactly what is included in the sale. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Magnetek |
Model: |
8-158964-02 |
MPN: |
8-158964-02 |
Type: |
AC Electric Motor |
Series: |
Century |
SKU: |
31281 |
Horsepower: |
1 HP |
Voltage: |
115/230V |
Phase: |
Single Phase |
Frequency: |
60 Hz |
RPM: |
1725 |
Amperage: |
5.6A (230V) / 11.2A (115V) |
Frame Size: |
R56Y |
Motor Type: |
CP |
Form: |
KHM |
Duty Cycle: |
Continuous (CONT) |
Thermal Protection: |
Thermally Protected |
Ambient Temperature: |
40°C |
Insulation Class: |
L |
Enclosure: |
PA |
Service Factor: |
1.0 |
Serial: |
BR1-082 |
Country/Region of Manufacture: |
United States |
Condition: |
Used – Inspected |
Seller Notes: |
Motor only; pump/compressor head visible in photos but not confirmed included. |
Condition Notes: |
Magnetek Century AC Motor 8-158964-02 inspected and in good used condition. Shows light industrial wear. Confirm included components with seller before purchasing. Please contact us with any questions. |
