Magna Tech MR-436-3 Magnetic Film Recorder 16mm 35mm w/ 69B Amplifier
The Magna Tech MR-436-3 is a professional magnetic film recorder designed for 16mm and 35mm motion picture film. Built by Magna Tech Electronic Co., Inc. of New York, it records and plays back magnetic stripe audio tracks synchronized with film, and includes selectable transport modes and a film-length selector for 400 ft and 1000 ft reels. This unit is offered together with the companion Magna Tech Type 69B amplifier and a set of multi-pin audio cable harnesses.
Specifications & What's Included
- Manufacturer: Magna Tech Electronic Co., Inc., New York, N.Y.
- Model: MR-436-3 (labeled "Recorder Type MR-436-3" on front panel)
- Film format compatibility: 16mm and 35mm (front-panel selector switch)
- Transport controls: HIGH SPEED, REV, STOP, FWD (front panel)
- Film length selector: 400 FT / 1000 FT toggle switch
- Rewind function: dedicated toggle switch
- Sync input selector: INT 1, INT 2, LOC
- INT ON switch on front panel

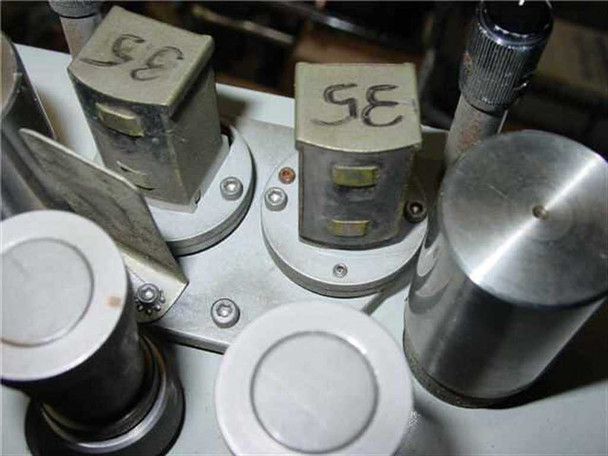

- Magnetic record/playback heads: two head assemblies labeled "35" visible on transport
- Internal motor drive assembly (visible in rear/underside view)
- Made in USA
- Included: Magna Tech Type 69B Amplifier (serial no. 1130), multiple multi-pin DIN-style audio cable harnesses, XLR connector on amplifier chassis
Applications
Magna Tech magnetic film recorders were a standard piece of professional cinema post-production equipment from the 1950s through the 1980s, used in dubbing stages, re-recording suites, and film editing facilities. The MR-436-3 records and plays back magnetically striped or full-coat magnetic film — the medium used to carry multi-track audio in sync with picture before digital audio workstations became industry standard. These machines were used alongside flatbed editing tables, Moviola upright editors, and interlock systems in Hollywood and independent film production facilities. The companion Type 69B amplifier drives the record/reproduce electronics for the magnetic heads. Today, Magna Tech recorders are sought by film archives, restoration facilities, and collectors working with legacy 16mm and 35mm magnetic film elements, as well as cinematography schools and museums preserving analog film workflows.
This Magna Tech MR-436-3 Magnetic Film Recorder has been inspected and appears to be in used condition consistent with its age. The unit shows general surface wear on the white-painted chassis, and the internal wiring and mechanical components are visible and intact. The film transport mechanism, motor assembly, and magnetic heads are present. The Type 69B amplifier and a set of multi-pin audio cable harnesses are included. This unit has not been powered up or tested at our facility, but it was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Magna Tech Electronic Co., Inc. |
Model: |
MR-436-3 |
MPN: |
MR-436-3 |
Type: |
Magnetic Film Recorder |
SKU: |
25339 |
Film Format: |
16mm, 35mm |
Included Amplifier: |
Magna Tech Type 69B |
Speed Selector: |
High Speed, REV, STOP, FWD |
Film Length Selector: |
400 FT, 1000 FT |
Film Format Switch: |
16MM / 35MM |
Sync Input: |
INT 1, INT 2, LOC (selector switch) |
Country/Region of Manufacture: |
United States |
Form Factor: |
Tabletop / Flatbed Unit |
Connector Type: |
Multi-pin DIN-style audio connectors, XLR |
Seller Notes: |
Includes Magna Tech Type 69B amplifier and multiple audio cable harnesses with multi-pin connectors. |
Condition Notes: |
This Magna Tech MR-436-3 Magnetic Film Recorder shows age-appropriate wear on the chassis. Transport mechanism, heads, and motor are present. Includes Type 69B amplifier and cable harnesses. Not tested at our facility; pulled from working use. |
