Description
Madge Smart 16/4 AT Ringnode Token Ring ISA Network Card 152-034-02 MCA

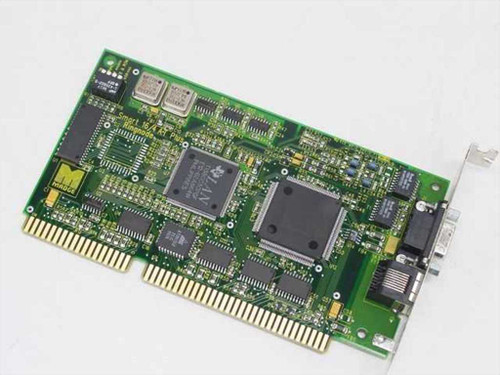

The Madge Smart 16/4 AT Ringnode is an ISA-bus Token Ring network adapter designed for IBM-compatible desktop PCs. It supports both 4 Mbps and 16 Mbps Token Ring speeds per the IEEE 802.5 standard. The card connects to Token Ring networks via an RJ-45 or DB-9 port on the bracket. The board number is 152-028-13 and the MPN is 152-034-02.
Specifications & What's Included
- Manufacturer: Madge Networks
- Model: Smart 16/4 AT Ringnode
- MPN: 152-034-02
- Board No.: 152-028-13
- Bus Interface: ISA (AT bus, full-length card)
- Network Technology: Token Ring (IEEE 802.5)
- Data Rate: 4 Mbps / 16 Mbps

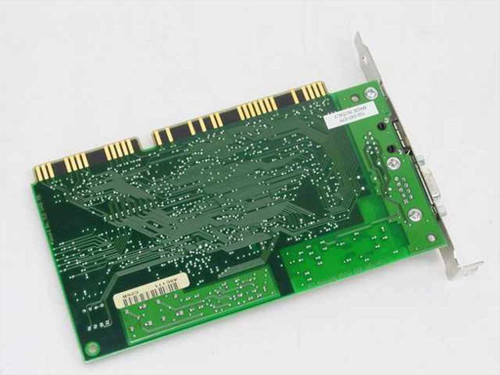

- Bracket Connectors: RJ-45 (UTP) and DB-9

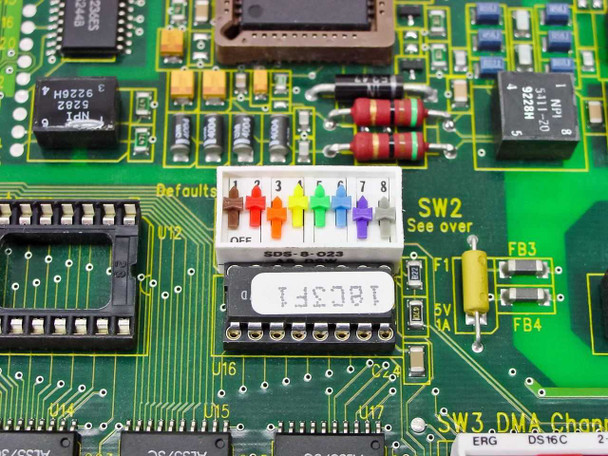

- Onboard DIP switches: SW2 (configuration) and SW3 (DMA channel selection)
- FCC Class A certification (visible on bracket label)
- PCB rating: UL 94V-0
- Card only — no software, drivers, or accessories included
Applications
The Madge Smart 16/4 AT Ringnode was designed for installation in ISA-slot desktop PCs connecting to IBM Token Ring LANs operating at 4 or 16 Mbps. Token Ring was widely deployed in corporate and government environments through the late 1980s and 1990s, particularly in IBM-centric networks running OS/2, DOS, and early Windows. Madge Networks was a leading third-party supplier of Token Ring adapters and was known for strong compatibility with IBM Token Ring infrastructure. This card is suited for maintaining or restoring legacy Token Ring network segments, supporting vintage IBM-compatible systems, or museum/collector use.
This Madge Smart 16/4 AT Ringnode Token Ring ISA network card (MPN 152-034-02) has been inspected and appears to be in good used condition. The PCB is clean with no visible damage, cracked traces, or burned components. The bracket is intact and both the RJ-45 and DB-9 connectors look undamaged. There is some light general wear consistent with prior use and handling. This card has not been powered up or tested at our facility. It was pulled from a legacy computing environment. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Madge Networks |
Model: |
Smart 16/4 AT Ringnode |
MPN: |
152-034-02 |
Secondary Model: |
152-028-13 |
Type: |
Token Ring Network Adapter Card |
SKU: |
10196 |
Bus Interface: |
ISA (AT) |
Network Technology: |
Token Ring |
Data Rate: |
4/16 Mbps |
Connector Type: |
RJ-45, DB-9 |
Form Factor: |
ISA Full-Length Card |
Board Number: |
152-028-13 |
Condition: |
Used – Inspected |
Compatible With: |
IBM-compatible PCs with ISA (AT) bus slot |
Compatible With 2: |
IBM Token Ring networks, 802.5 environments |
Country/Region of Manufacture: |
United Kingdom |
Seller Notes: |
Card only; no software or accessories included. |
FCC Class: |
Class A |
Condition Notes: |
Madge Smart 16/4 AT Ringnode ISA Token Ring card 152-034-02. PCB clean, bracket intact, RJ-45 and DB-9 connectors undamaged. Light wear from prior use. Not bench-tested. Pulled from a legacy computing environment. |
