Description

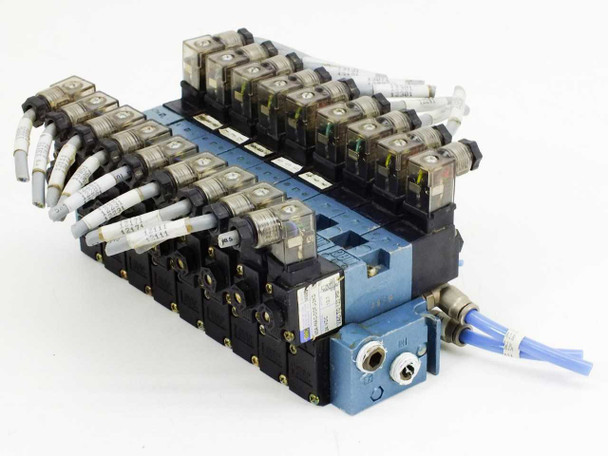

MAC 45A-NAC-DDFJ-2KD Solenoid Valve Manifold 24VDC 12.7W 120PSI 10-Valve Bank
The MAC 45A-NAC-DDFJ-2KD is a multi-station solenoid valve manifold bank from MAC Valves, a manufacturer based in Wixom, Michigan specializing in pneumatic and electropneumatic directional control valves. This assembly consists of 10 individual 45A-series solenoid valves gang-mounted on a common manifold base, allowing centralized pneumatic distribution and independent electrical control of each valve station. Each valve operates on 24 VDC and draws 12.7 watts, with a working pressure range up to 120 PSI.
Specifications & What's Included
- Model: MAC 45A-NAC-DDFJ-2KD
- Manufacturer: MAC Valves, Wixom, MI USA
- Electrical: 24 VDC
- Power per valve: 12.7 Watts
- Pressure rating: VAC to 120 PSI
- Number of valve stations: 10
- Configuration: gang-mounted manifold bank on common blue anodized base
- Valve type: solenoid-actuated directional control, electropneumatic
- Media: pneumatic (air)
- Includes: wiring harness with individual solenoid leads and blue pneumatic tubing connections
- Each valve station has individual solenoid coil connector
Applications
MAC Valves 45A-series solenoid valves are widely used in automated industrial machinery for pneumatic actuation and directional control of cylinders, actuators, and pneumatic tools. Manifold configurations like this 10-station bank are common in assembly automation, pick-and-place systems, packaging equipment, and semiconductor fabrication tooling where multiple pneumatic circuits must be controlled independently from a centralized valve island. The 24 VDC coil voltage is a standard control voltage in PLCs and industrial automation systems, making this manifold compatible with a broad range of machine controllers. MAC Valves equipment of this type has been a production standard in North American manufacturing and process automation since the 1970s and remains in active use across automotive, electronics, food processing, and general industrial applications.
This MAC 45A-NAC-DDFJ-2KD solenoid valve manifold bank has been inspected and appears to be in good used condition. The manifold and valve bodies show typical wear from prior service use, including some surface marks and light soiling on the valve housings consistent with an industrial environment. All 10 valve solenoid coils and connectors appear intact, and the blue pneumatic tubing and wiring harness are present and attached. No cracked or broken valve bodies are visible in the photos. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
MAC Valves |
Model: |
45A-NAC-DDFJ-2KD |
MPN: |
45A-NAC-DDFJ-2KD |
Type: |
Solenoid Valve Manifold |
SKU: |
46459 |
Condition: |
Used – Inspected |
Seller Notes: |
10-valve manifold bank with wiring harness and blue pneumatic tubing |
Country/Region of Manufacture: |
USA |
Voltage: |
24 VDC |
Power (Watts): |
12.7 W per valve |
Maximum Pressure: |
120 PSI (VAC to 120 PSI) |
Number of Valves: |
10 |
Configuration: |
Manifold Bank / Gang-Mounted |
Series: |
45A Series |
Valve Function: |
Directional Control Solenoid Valve |
Actuator Type: |
Solenoid (Electropneumatic) |
Media: |
Air / Pneumatic |
Form Factor: |
Manifold / Multi-station Bank |
Manufacturer Location: |
Wixom, MI USA |
Condition Notes: |
MAC 45A-NAC-DDFJ-2KD solenoid valve manifold, 10-valve bank. Inspected, appears in good used condition. Typical surface wear from service. Wiring harness and pneumatic tubing present. Please contact us with any questions. |
