LXE

LXE 200IBSL01 Integrated Base Station Transceiver RF Console Host RS-232

(No reviews yet) Write a Review
SKU:
21151
MPN:
200IBSL01
Condition:
Used
Availability:
Usually ships within 1–2 business days.
Weight:
11.00 LBS
Shipping:
Calculated at Checkout

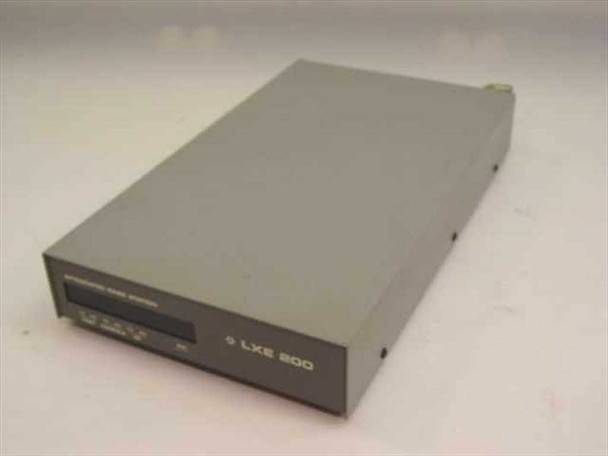

  • LXE 200IBSL01 Integrated Base Station Transceiver — three-quarter front-left view showing gray enclosure and LXE 200 label
  • LXE 200IBSL01 Integrated Base Station — rear panel showing RF coax port, Power connector, Console DB-25, and Host DB-25 ports at an angle
  • LXE 200 Integrated Base Station front panel — showing INTEGRATED BASE STATION label, TX/RX HOST, CONSOLE, RF indicator LEDs, RUN LED, and LXE 200 logo

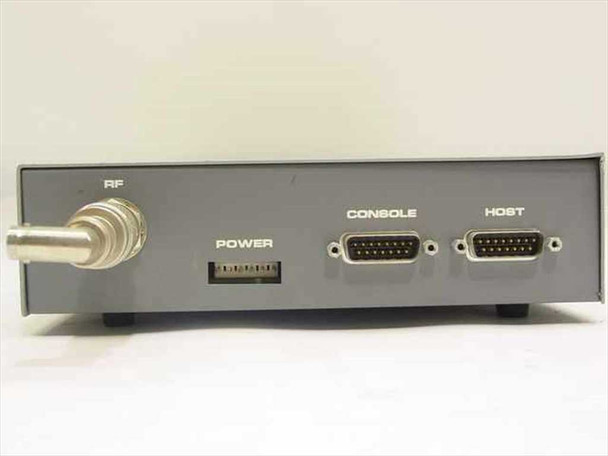

  • LXE 200IBSL01 rear panel close-up — RF coax port on left, POWER connector, CONSOLE DB-25, and HOST DB-25 ports clearly labeled

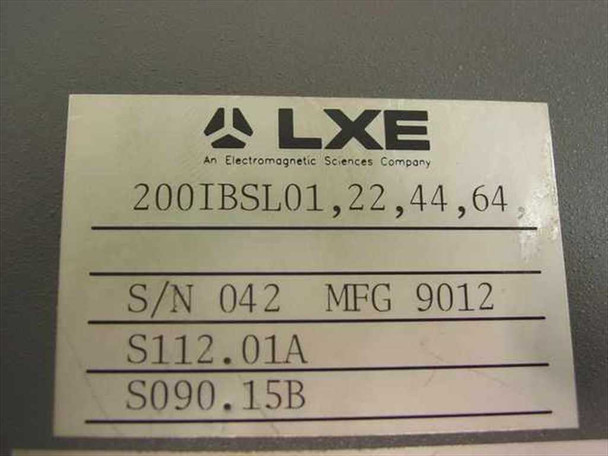

  • LXE 200IBSL01 rating label — showing model numbers 200IBSL01,22,44,64; S/N 042; MFG 9012; S112.01A; S090.15B; LXE Electromagnetic Sciences logo
$63.00
Was: $175.00
Current Stock: 1

Sold Out

Description

LXE 200IBSL01 Integrated Base Station Transceiver RF Console Host RS-232

The LXE 200IBSL01 is an Integrated Base Station Transceiver from LXE — An Electromagnetic Sciences Company — designed to serve as the fixed RF hub in LXE's 200-series wireless data-collection network. The base station connects to a host computer and an optional console terminal while communicating wirelessly with LXE 200-series mobile RF terminals and handheld scanners in the field. This is the desktop/benchtop form-factor unit housed in a compact gray metal enclosure.

Specifications & What's Included

  • Manufacturer: LXE — An Electromagnetic Sciences Company
  • Model: LXE 200 / Part Number: 200IBSL01 (also covers 200IBSL22, 44, 64 per label)
  • Software revisions (per label): S112.01A and S090.15B
  • Manufacture date: MFG 9012 (December 1990)
  • RF port: coaxial (BNC/TNC-type) on rear panel for antenna connection
  • Console port: DB-25 connector (rear panel, labeled CONSOLE)
  • Host port: DB-25 connector (rear panel, labeled HOST)
  • Power: multi-pin power header connector (rear panel, labeled POWER)
  • Front panel LED indicators: TX/RX for HOST, CONSOLE, and RF channels; RUN indicator
  • Front panel display: small alphanumeric/status display window
  • Form factor: desktop/benchtop metal enclosure
  • Unit only — no external antenna, power supply, or cables included

Applications

The LXE 200 series was an early industrial wireless LAN platform introduced in the late 1980s and early 1990s, well before 802.11 Wi-Fi became standard. LXE (Electromagnetic Sciences) was a pioneer in ruggedized RF data terminals for industrial environments. The 200 Integrated Base Station served as the fixed access point in a spread-spectrum or narrowband RF network, bridging mobile barcode scanners and vehicle-mount terminals on the warehouse or factory floor to a host computer system — typically an IBM AS/400, minicomputer, or Unix host — via the RS-232 Host port. The Console port allowed a local terminal to monitor and configure the base station. These systems were widely deployed in distribution centers, manufacturing plants, and retail warehouses throughout the early 1990s, replacing time-consuming batch scanning with real-time inventory and order data. Facilities still running legacy LXE 200-series mobile terminals require a compatible base station like this unit to maintain their wireless infrastructure.

Condition: Used
This LXE 200IBSL01 Integrated Base Station Transceiver has been inspected and appears to be in good condition. The enclosure shows light surface wear consistent with normal use, and all rear panel ports — RF coax, Console DB-25, and Host DB-25 — appear intact with no visible damage. Front panel LED indicators and labeling are clear and legible. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
LXE
Model:
200IBSL01
MPN:
200IBSL01
Secondary Model:
LXE 200
Type:
Integrated Base Station RF Transceiver
SKU:
21151
Condition:
Used – Inspected
Seller Notes:
Unit only; no external antenna or accessories included.
Country/Region of Manufacture:
United States
Form Factor:
Desktop / Benchtop
Interface Type:
RF (antenna), Console DB-25, Host DB-25, Power connector
Connector Type:
RF coax (BNC/TNC), DB-25 x2, Power header
Number of Ports:
3 (RF, Console, Host)
LED Indicators:
TX/RX Host, TX/RX Console, TX/RX RF, RUN
Compatible With:
LXE 200 series wireless terminals and handhelds
Manufacturer Full Name:
LXE — An Electromagnetic Sciences Company
Software Revision:
S112.01A / S090.15B
Manufacture Date:
December 1990 (MFG 9012)
Condition Notes:
LXE 200IBSL01 Integrated Base Station Transceiver. Inspected, in good used condition. Enclosure shows light surface wear; rear RF, Console, and Host ports intact. No damage observed. Please contact us with any questions.
