Lumenis AcuPulse 40 AES-A SA-1063020 CO2 Fractional Laser AS-IS Parts
The Lumenis AcuPulse 40 AES-A is a CO2 fractional ablative laser platform built for dermatological and aesthetic procedures. It operates at the 10,600 nm CO2 wavelength and uses fractional beam delivery to target skin resurfacing, deep wrinkle reduction, scar revision, and acne scar correction. This unit is mounted on a mobile freestanding console with locking casters and carries an articulated multi-joint laser delivery arm. It is being sold AS-IS for parts or repair only — the front cover has been removed and internal parts may be missing. Intended for qualified laser technicians only.
Specifications & What's Included
- Brand: Lumenis
- Model: AcuPulse 40 AES-A
- Part Number (MPN): SA-1063020
- Series: 001
- Laser Type: CO2 (Carbon Dioxide), Fractional Ablative
- Wavelength: 10,600 nm
- Laser Classification: Class 4 / Class IV
- Manufacture Date: November 2009
- Country of Manufacture: Israel
- Power Input: 100–240VAC, 50/60Hz (universal input)
- Power Connector: IEC C14 inlet

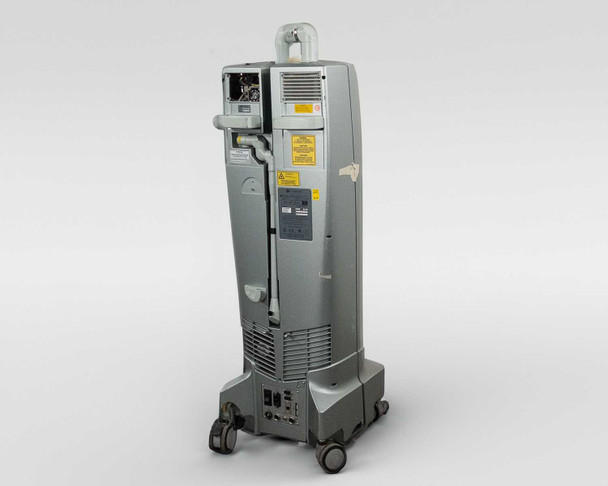

- Form Factor: Freestanding console on locking casters
- Display: Integrated front-panel touchscreen monitor

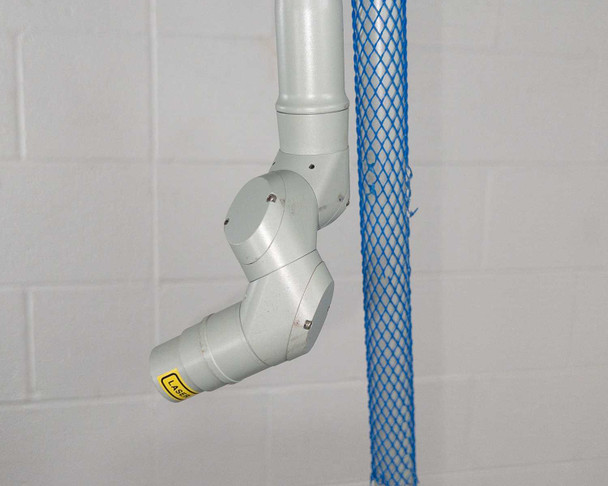

- Delivery System: Articulated multi-joint laser delivery arm (present and attached)
- Emergency Stop: Red mushroom-head E-stop button on top panel

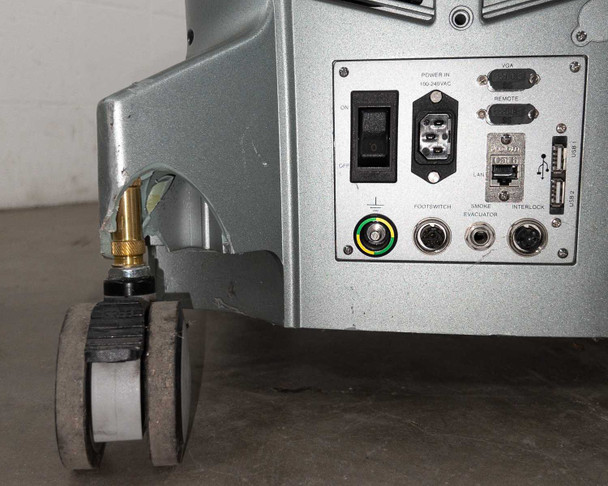

- Rear I/O: VGA output, Remote (DB9), LAN (RJ-45), USB x2
- Additional Rear Connections: Footswitch, Smoke Evacuator, Interlock

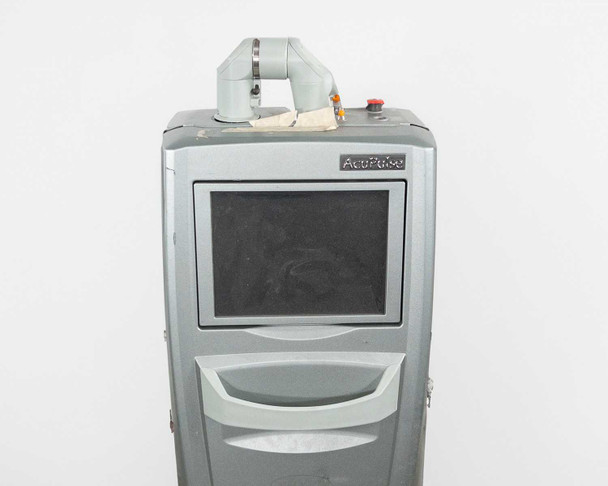

- Top panel housing shows cracking and tape residue (visible in photos)

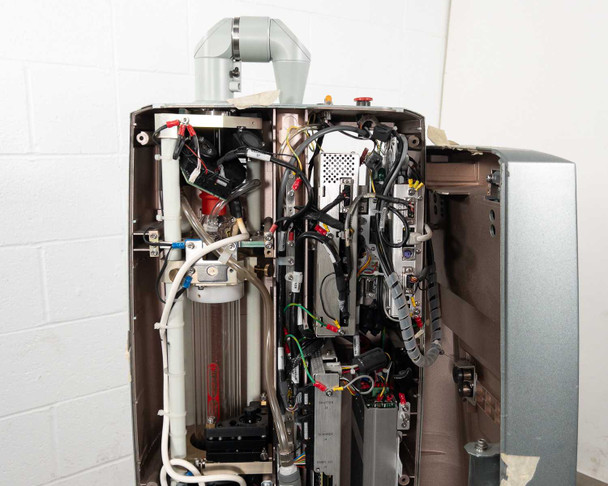

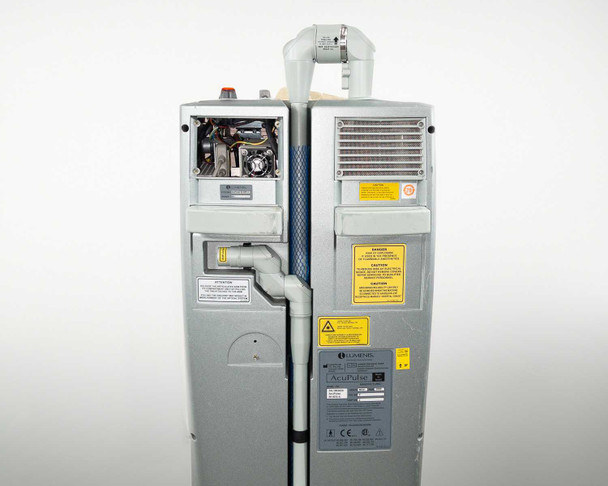

- Front cover removed; internal chassis, wiring, boards, and laser tube assembly exposed
- Internal parts may be missing — review all photos carefully
- Includes: Articulated delivery arm, caster base console
Applications
The Lumenis AcuPulse is a fractional CO2 laser platform used in dermatology clinics, plastic surgery practices, and medical spas for ablative skin resurfacing procedures. CO2 fractional lasers work by delivering thousands of microscopic columns of laser energy into the skin, creating controlled zones of ablation while leaving surrounding tissue intact — a technique that stimulates collagen remodeling and skin renewal. The AcuPulse line from Lumenis is used for treatment of photo-damaged skin, deep rhytids (wrinkles), acne scars, surgical scars, and skin laxity. Introduced in the late 2000s, the AcuPulse series was one of Lumenis's flagship fractional CO2 platforms and saw widespread clinical adoption. Units like this one — sold for parts or repair — are sought by biomedical engineers, laser technicians, and refurbishers working on Lumenis systems.
This Lumenis AcuPulse 40 AES-A CO2 Fractional Laser System is being sold AS-IS for parts or repair only. The front cover has been removed and internal parts may be missing — the photos document the exposed internal chassis, wiring, and components in detail. The unit has not been tested and no functionality is guaranteed. The articulated multi-joint laser delivery arm and the caster base are included. The top panel housing shows cracking and tape residue. This system is intended for qualified laser technicians capable of evaluating, repairing, or parting it out. Please review all photos carefully and contact us with any questions before purchasing.
Thanks for your interest. Recycled Goods Inc., Ventura, CA.
FDA Regulation and Certification: The sale of this item may be subject to regulation by the U.S. Food and Drug Administration and state and local regulatory agencies. If so, do not purchase this item unless you are an authorized purchaser. If the item is subject to FDA regulation, we will verify your status as an authorized purchaser of this item before shipping.
Upon receipt, it is the BUYER'S responsibility to have this instrument checked and certified for use by a qualified Technician prior to placing it into use or service.
Warranty Information
Additional Information
Brand: |
Lumenis |
Model: |
AcuPulse 40 AES-A |
MPN: |
SA-1063020 |
Type: |
CO2 Fractional Ablative Laser System |
SKU: |
53016 |
Series: |
001 |
Manufacture Date: |
November 2009 |
Country/Region of Manufacture: |
Israel |
Power Requirements: |
100–240VAC, 50/60Hz, IEC C14 inlet |
Laser Type: |
CO2 (Carbon Dioxide) Fractional |
Laser Class: |
Class 4 / Class IV |
Treatment Applications: |
Skin Resurfacing, Scar Revision, Wrinkle Treatment |
Form Factor: |
Freestanding Console on Locking Casters |
Display: |
Integrated Front-Panel Touchscreen Monitor |
Rear Connectors: |
VGA, Remote (DB9), LAN (RJ-45), USB x2 |
Additional Rear Ports: |
Footswitch, Smoke Evacuator, Interlock |
Power Input Connector: |
IEC C14 inlet, 100–240VAC |
Delivery Arm: |
Articulated multi-joint laser delivery arm |
Seller Notes: |
Includes articulated delivery arm and caster base. Front cover removed; internal parts may be missing. |
Condition Notes: |
Lumenis AcuPulse 40 AES-A CO2 fractional laser sold AS-IS for parts or repair. Not tested; no functionality guaranteed. Front cover removed; internal parts may be missing. Delivery arm and caster base included. Qualified technicians only. |
Delivery System: |
Articulated Multi-Joint Laser Delivery Arm |
Emergency Stop: |
Red Mushroom-Head E-Stop Button |
Wavelength: |
10,600 nm (CO2) |
