LUFRAD SLC-2-D-S Proximity Switch 10-40V DC 200mA N.C. Inductive Sensor

LUFRAD SLC-2-D-S Proximity Switch 10-40V DC 200mA N.C. Inductive Sensor

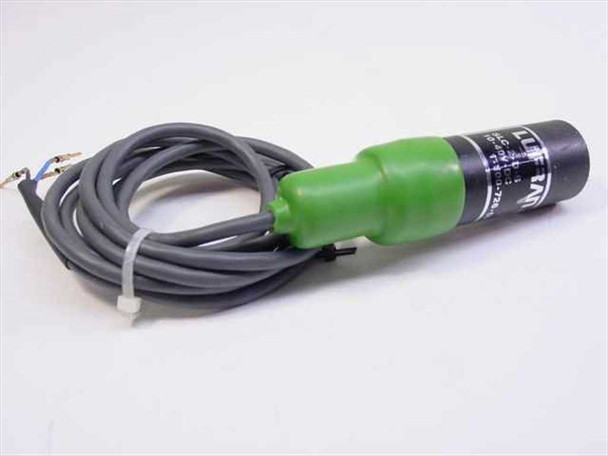

The LUFRAD SLC-2-D-S is a cylindrical inductive proximity switch rated for 10–40V DC operation with a normally closed (N.C.) output and a maximum output current of 200 mA. It features a compact black cylindrical body with a green connector collar and an attached grey pigtail cable terminating in bare wire leads for direct wiring into a control circuit.

Specifications & What's Included

• Model: SLC-2-D-S
• Brand: LUFRAD Inc.
• Sensing technology: Inductive (non-contact metal detection)
• Supply voltage: 10–40V DC
• Output current: 200 mA maximum
• Output configuration: N.C. (Normally Closed)
• Form factor: Cylindrical body with green connector collar
• Connection: Pigtail cable with bare wire leads

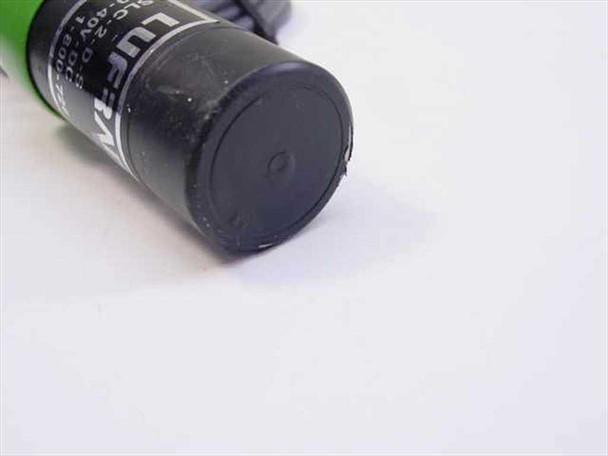

• Sensing face: Flat-face cylindrical tip

Applications

Inductive proximity switches like the LUFRAD SLC-2-D-S are standard components in industrial automation and machine control systems. They detect the presence or absence of metallic objects without physical contact, making them well-suited for position sensing, end-of-travel detection, part counting, and conveyor or feed system monitoring. Normally closed (N.C.) output models open the circuit when a target is detected, which is the preferred configuration in safety-critical or fail-safe control loops where an open circuit signals the presence of a part or a fault condition. These sensors are commonly used in manufacturing machinery, robotic work cells, packaging lines, and general factory automation wiring into PLCs, relay logic panels, and other DC control systems in the 10–40V range.
