Description
Lucius & Baer CC15V-NET 15" Industrial CRT Monitor RGB VGA 100-250V For Parts

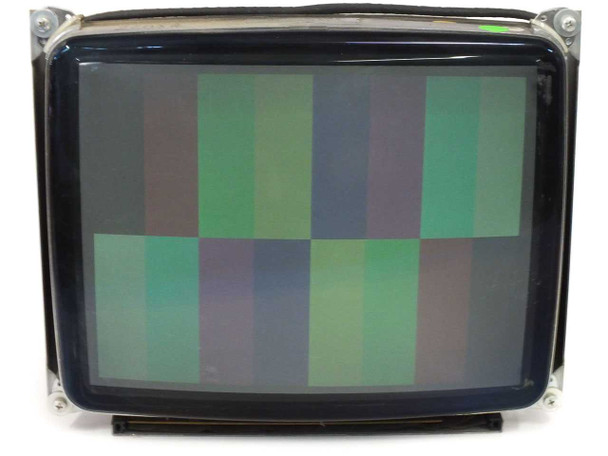

The Lucius & Baer CC15V-NET is a 15-inch industrial-grade RGB color CRT monitor designed for embedded and panel-mount applications in factory automation, machine control, and process control environments. It accepts a standard VGA analogue signal and operates on a universal power supply spanning 100–250V AC, making it suitable for both domestic and international installations. This unit has been powered on at our facility and does display an image; however, the image is noticeably dimmer than normal for a CRT of this type, and the monitor is missing parts and incomplete.
Specifications & What's Included

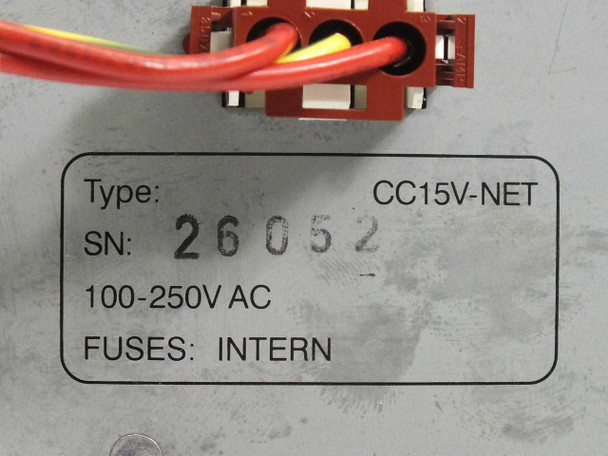

- Type: CC15V-NET
- Screen Size: 15 inch
- Display Technology: CRT (Color RGB)
- Phosphor: P22, medium short persistence
- Maximum Resolution: 1280 x 1024 (H x V)
- Dot Pitch: 0.28 mm
- Video Input: VGA analogue
- Input Impedance: 75 Ohm
- Bandwidth: 100 MHz
- Sync Input: H + V separated
- Horizontal Frequency: 30–60 kHz
- Vertical Frequency: 50–120 Hz
- Geometry Distortion: 2.0 mm max
- Linearity: 10% max horizontal
- Convergence (Center): 0.15 mm max
- Convergence (Edges): 0.3 mm max
- Mains Voltage: 100–250V AC, 50/60 Hz
- Fuses: Internal
- CE marked

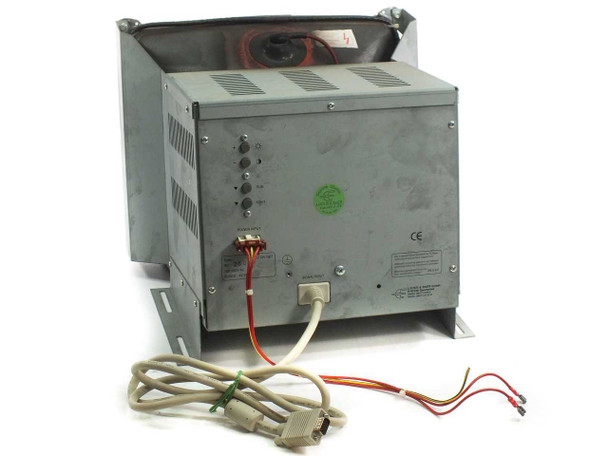

- Rear connector: DB15 HD VGA

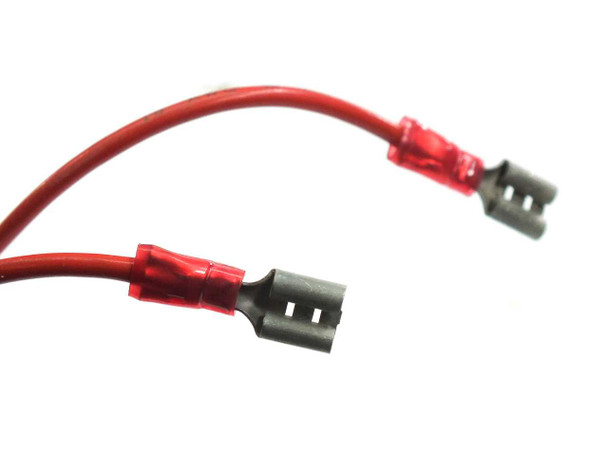

- Includes: VGA cable and red wiring harness with spade connectors
- Missing parts — sold as-is, incomplete
Applications

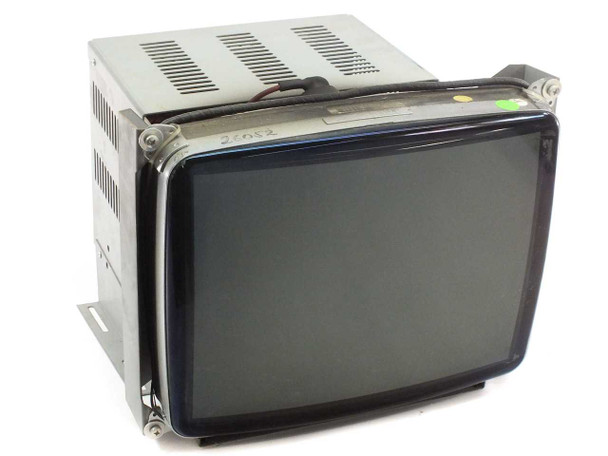

Industrial CRT monitors of this type were widely used in factory automation, CNC machine control, SCADA workstations, and process control panels throughout the 1990s and 2000s. The CC15V-NET's panel-mount metal enclosure and universal power supply made it a common choice for embedding directly into operator consoles, control cabinets, and industrial kiosks. Units of this kind are still sought after today as replacement displays for legacy CNC equipment, PLCs, and industrial control systems that were originally built around a specific CRT display and cannot be directly converted to an LCD substitute without additional interface hardware.

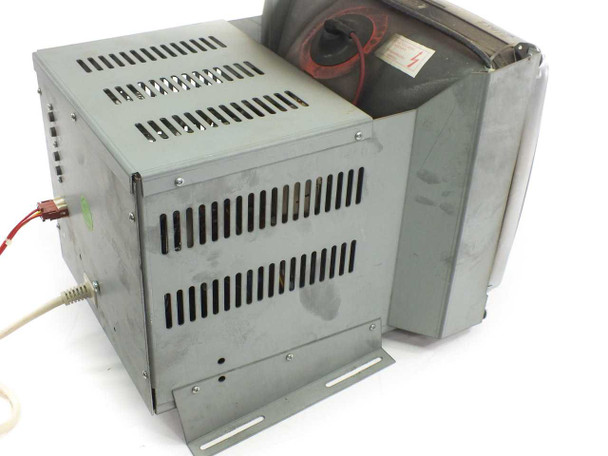

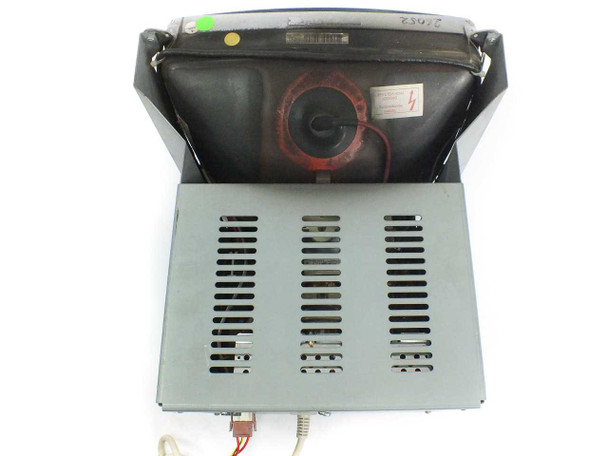

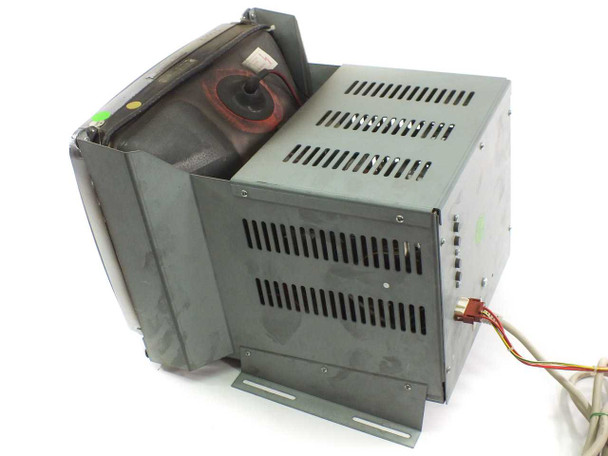

This Lucius & Baer CC15V-NET 15" Industrial CRT Monitor has been powered on and tested at our facility. The unit does display an image and functions in that regard; however, the image is noticeably dimmer than a typical CRT of this type. The monitor is being sold as-is for parts or repair because it is missing parts and is incomplete — please review our photo set carefully before purchasing. The metal enclosure and chassis show typical wear consistent with prior industrial service use. A VGA cable and a red wiring harness with spade connectors are visible in the photos and appear to be included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Lucius & Baer |
Model: |
CC15V |
MPN: |
CC15V-NET |
Type: |
Industrial CRT Monitor |
SKU: |
52351 |
Condition: |
As-Is / For Parts or Not Working |
Screen Size: |
15 inch |
Display Technology: |
CRT |
Phosphor Type: |
P22, Medium Short Persistence |
Maximum Resolution: |
1280 x 1024 (H x V) |
Dot Pitch: |
0.28 mm |
Video Input: |
VGA Analogue |
Input Impedance: |
75 Ohm |
Bandwidth: |
100 MHz |
Sync Input: |
H + V Separated |
Horizontal Frequency: |
30 - 60 kHz |
Vertical Frequency: |
50 - 120 Hz |
Geometry Distortion: |
2.0 mm max |
Linearity: |
10% max horizontal |
Convergence Center: |
0.15 mm max |
Convergence Edges: |
0.3 mm max |
Power Requirements: |
100-250V AC, 50/60 Hz |
Fuses: |
Internal |
Color: |
RGB Color |
Country/Region of Manufacture: |
Germany |
Seller Notes: |
Sold as-is; missing parts. Includes VGA cable and red wiring harness. Powers on; image dimmer than normal. |
Condition Notes: |
Lucius & Baer CC15V-NET 15" Industrial CRT Monitor powers on and displays an image, but image is dimmer than normal. Sold as-is for parts — unit is missing parts and incomplete. VGA cable and wiring harness included. Contact us with questions. |
