Lucent Pipeline 220 P22-T1-V35-ASA T1 V.35 WAN Router Dual 10BT Firewall VPN

Lucent Pipeline 220 P22-T1-V35-ASA T1 V.35 WAN Router Dual 10BT Firewall VPN

The Lucent Pipeline 220 is a WAN access router designed for small to mid-size offices requiring simultaneous T1 and V.35 serial WAN connectivity alongside integrated firewall and IPSec VPN capabilities. This unit carries the P22-T1-V35-ASA configuration code, indicating the T1 RJ-48C primary WAN port, the V.35 secondary WAN port, and the ASA (firewall/VPN) feature set. Built under the Lucent Technologies Bell Labs Innovations brand, the Pipeline 220 was one of the more capable small-office WAN routers of the mid-to-late 1990s.

Specifications & What's Included

• Model: Pipeline 220, configuration P22-T1-V35-ASA

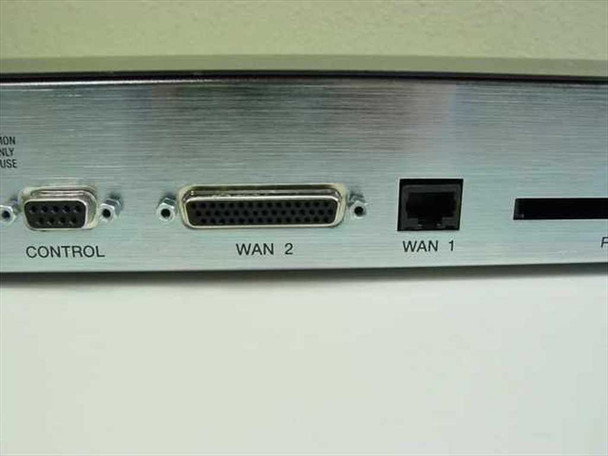

• WAN Port 1 (WAN 1): T1 — RJ-45/RJ-48C interface
• WAN Port 2 (WAN 2): V.35 serial — DB-44 connector
• LAN Ports: Dual 10Base-T Ethernet — ENET 1 and ENET 2, RJ-45
• Security: Integrated firewall and IPSec VPN (SecureConnect)
• Console/Management: CONTROL port — DB-9 serial
• Alarm: 2-position terminal block (ALARM port)
• Expansion: PCMCIA slot and DRAM card slot (rear panel)
• Power: IEC C14 inlet, fused at 2A(T) 250V; rocker power switch
• Form factor: Desktop / low-profile 1U-style chassis
• Includes: Pipeline 220 user manuals (multiple guides)
• Includes: P220 Cable Set — PN 0800-0037-001 Rev A (sealed)

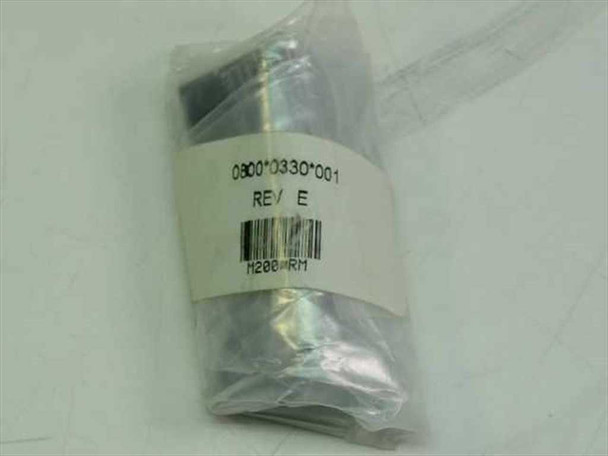

• Includes: Hardware kit — PN 0800-0330-001 Rev E (sealed)
• Includes: SecureConnect Manager User's Guide floppy disk — PN 0800-0136-001 Rev B (sealed, Lucent Technologies, requires Adobe Acrobat Reader)
• Includes: AC power cord — NEMA 5-15P to IEC C13

Applications

The Pipeline 220 was sold by Lucent Technologies (Bell Labs) as a branch-office and small-business WAN router during the mid-to-late 1990s, when T1 leased lines and ISDN were the dominant wide-area connectivity options for businesses. With two WAN interfaces — a T1 port for primary connectivity and a V.35 serial port for secondary or backup WAN links — the unit supported load-sharing and failover scenarios common in that era. The dual 10Base-T Ethernet LAN ports allowed it to serve two separate network segments or a combined LAN. The ASA feature set added packet-filtering firewall and IPSec-based VPN functionality through Lucent's SecureConnect software, enabling encrypted site-to-site tunnels at a time when VPN hardware was far from commoditized. The Pipeline series competed with products from Ascend Communications (which Lucent later acquired), Cisco, and 3Com in the small-office WAN router market. Today, Pipeline 220 units are sought for legacy network lab environments, WAN protocol testing, and collectors of late-1990s networking equipment.
