Description
Lucent MLX-28D Office Phone White 108047523 7713D02F-264 DEFINITY PBX

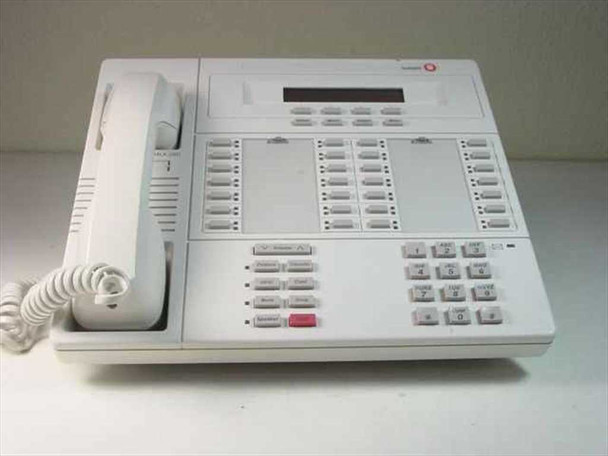

The Lucent MLX-28D is a 28-button digital display office phone designed for use with Lucent DEFINITY and MERLIN MAGIX PBX telephone systems. It features a built-in LCD display, 28 programmable line and feature buttons with paper label strips, a full 12-key dial pad, and a dedicated soft-key row (Home, Menu, Inspect, More) directly below the display. The phone uses the MLX digital interface, which connects directly to compatible Lucent/Avaya PBX systems without a separate analog adapter.
Specifications & What's Included
- Manufacturer: Lucent Technologies
- Model: MLX-28D
- Part Number: 108047523
- Model Code: 7713D02F-264
- Color: White
- Display: LCD panel
- Programmable Buttons: 28 line/feature buttons with label strips
- Soft Keys: Home, Menu, Inspect, More
- Function Keys: Volume (up/down), Feature, Transfer, HF/AI, Conf, Mute, Drop, Speaker, Hold
- Dial Pad: Standard 12-key numeric pad
- Interface: MLX digital (for DEFINITY / MERLIN MAGIX systems)
- HAC: Yes — Hearing Aid Compatible (marked on label)
- Includes: Phone unit and handset with coiled cord
Applications
The MLX-28D was designed as a mid-to-high-capacity desktop phone for Lucent's DEFINITY Generic 1, Generic 3, and MERLIN MAGIX PBX platforms, which were widely deployed in business offices throughout the 1990s and into the 2000s. The "28D" designation indicates 28 programmable buttons plus a display — suited for receptionists, managers, and power users who needed direct access to many extensions or features. These phones use the proprietary MLX digital line protocol and connect via a single modular cable to an MLX port on the PBX; they do not work as standalone analog phones. Avaya acquired Lucent's enterprise communications division and continued supporting these systems, so the MLX-28D also appears in Avaya DEFINITY and MERLIN MAGIX environments. Replacement and expansion units remain in demand for businesses still running these legacy PBX systems.
This Lucent MLX-28D digital display office phone has been pulled from a working office environment where it was previously in use. It has been visually inspected and appears to be in good used condition. The white housing shows light surface wear consistent with typical office use. The handset and coiled cord are included and appear intact. The 28 programmable buttons, soft keys, and dial pad are all present and show no obvious damage. The unit has not been powered up or tested at our facility. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Lucent |
Model: |
MLX-28D |
MPN: |
108047523 |
Secondary Model: |
7713D02F-264 |
SKU: |
30449 |
Type: |
Digital Display Office Phone |
Number of Buttons: |
28 |
Display: |
LCD Display |
Color: |
White |
Compatible System: |
Lucent DEFINITY, MERLIN MAGIX PBX |
Phone Line Interface: |
Digital (MLX) |
HAC: |
Yes — Hearing Aid Compatible |
Features: |
Volume control, Hold, Mute, Speaker, Transfer, Conference, Drop, HF/AI |
Seller Notes: |
Phone only — handset and coiled cord included; no power supply or patch cable. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This Lucent MLX-28D office phone was pulled from a working environment and is in good used condition. Housing shows light wear. Handset and coiled cord included. Not powered or tested at our facility. |
