Little Giant VCC-20ULS 554200 Condensate Pump 115V 60Hz 1Ph Gas Furnace HVAC

Little Giant VCC-20ULS 554200 Condensate Pump 115V 60Hz 1Ph Gas Furnace HVAC

The Little Giant VCC-20ULS is a single-phase condensate removal pump designed to collect and discharge condensate water from high-efficiency gas furnaces, air handlers, and other HVAC equipment that produces condensate as a byproduct of operation. The pump uses a float-activated switch to automatically pump accumulated condensate up and away from the appliance to a suitable drain, even when gravity drainage is not available. It carries a UL listing (23H1 Condensate Pump) and is thermally protected against overheating.

Specifications & What's Included

• Manufacturer: Little Giant Pump Company (a subsidiary of Tecumseh Products Co.), Oklahoma City, OK
• Catalog Number: 554200
• Model: VCC-20ULS
• Voltage: 115V AC
• Frequency: 60 Hz
• Current: 1.5 A
• Phase: 1 Phase (Single Phase)
• Thermal Protection: Yes — Thermally Protected
• Certifications: UL Listed 23H1 Condensate Pump
• Not a submersible pump
• Not investigated for use in swimming pool areas
• Date Code: AEM 11708487

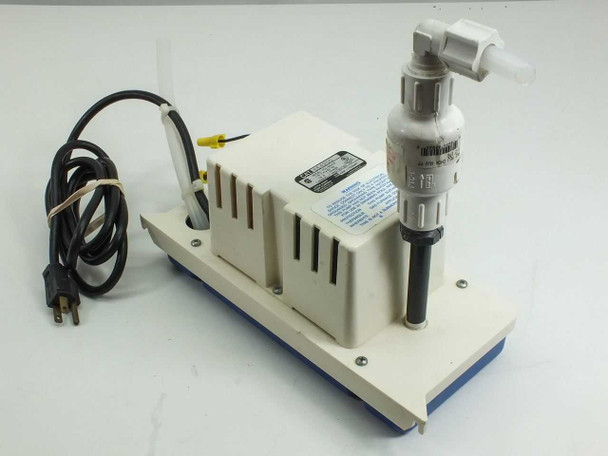

• Includes: pump unit with blue reservoir base, white motor housing, discharge fitting with 90-degree PVC elbow, float assembly with wire and yellow wire nut connector, clear inlet/outlet tubing, and 3-prong power cord

Applications

Condensate pumps like the Little Giant VCC-20ULS are used wherever a high-efficiency furnace, air conditioner, fan coil unit, or dehumidifier generates liquid condensate that cannot drain by gravity to a floor drain. The pump sits in a utility room, mechanical closet, or near the appliance and automatically pumps condensate water to a nearby sink, standpipe, or exterior discharge point. The VCC-20ULS is specifically rated and labeled for gas furnace condensate applications — a common requirement with 90%+ AFUE condensing furnaces that produce substantial acidic condensate. These pumps are also used with central air conditioning air handlers, ductless mini-split systems, and commercial refrigeration units. Little Giant has been a leading manufacturer of condensate removal pumps for the HVAC and plumbing trades for decades, and the VCC series is a widely recognized model line in the field.
