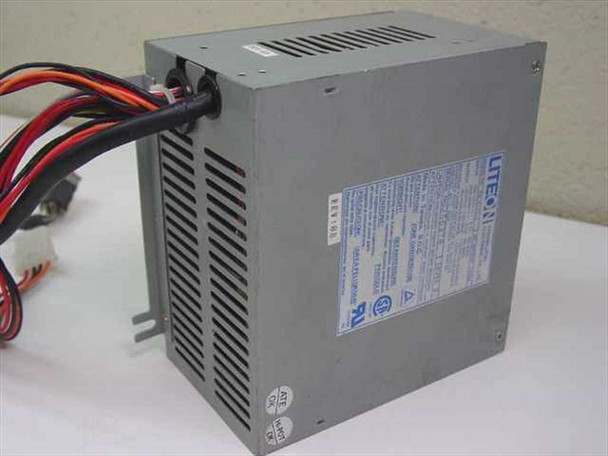

LiteOn PA-4111-1 110W Proprietary Desktop Power Supply Dell 333s/L 100-240V

LiteOn PA-4111-1 110W Proprietary Desktop Power Supply Dell 333s/L 100-240V

The LiteOn PA-4111-1 is a 110W proprietary internal desktop power supply manufactured by Taiwan Liton Electronic Co., Ltd. It was originally fitted in Dell 333s/L small desktop systems and uses a proprietary connector configuration specific to that platform — not a standard ATX pinout. The unit features universal voltage input, accepting both 100–127V and 200–240V AC supply, making it suitable for use in North American and international-voltage environments.

Specifications & What's Included

• Model: PA-4111-1
• Manufacturer: Taiwan Liton Electronic Co., Ltd. (LiteOn)
• DC Output: 110W maximum combined
• Input: 100–127V~ / 4.5A / 50–60Hz
• Input: 200–240V~ / 2.5A / 50–60Hz
• Output +5V: 1–13A MAX
• Output +12V: 0–3.5A MAX
• Output -5V: 0–0.4A MAX
• Output -12V: 0–0.4A MAX
• Ambient temperature rating: 50°C MAX
• Efficiency Level: 3
• Connector: Proprietary Dell multi-pin main connector + 4-pin Molex peripheral connectors + auxiliary connectors
• Dual IEC AC inlet sockets on rear panel
• Rear-mounted cooling fan
• Certifications: TÜV Rheinland, CSA
• Country of Manufacture: Taiwan, R.O.C.
• Includes: Power supply unit with all original attached cables

Applications

The PA-4111-1 is a direct replacement power supply for Dell 333s/L small desktop systems. Dell's early-to-mid 1990s compact desktop line used proprietary internal power supplies with non-standard connector layouts, meaning this unit is not a drop-in replacement for standard ATX systems — it is purpose-built for the Dell 333s/L chassis. These units are sought by technicians and collectors maintaining legacy Dell desktop hardware, where the original PSU has failed and a like-for-like replacement is needed. The universal voltage input range also makes it usable in regions with 200–240V mains supply.
