Description
Lite-On PA3270-1 AC Adapter 6.2V 2.5A 12V 0.35A Dual Output Notebook P/N 471014000002
The Lite-On PA3270-1 is a dual-output external AC adapter made by Taiwan Liton Electronic Co., Ltd. It accepts a wide-range universal AC input and delivers two regulated DC outputs simultaneously, making it suitable for powering notebook computers and indoor devices that require both a primary logic voltage and a secondary rail. The label specifies it is approved for MITAC notebook products and is rated for indoor use only.
Specifications & What's Included
- Manufacturer: Lite-On / Taiwan Liton Electronic Co., Ltd.
- Model: PA3270-1
- Part Number: 471014000002
- AC Input: 100–240V~, 0.8A, 50/60Hz (universal)
- DC Output — Mode 1: 6.2V @ 2.5A
- DC Output — Mode 1: 12V @ 0.35A
- DC Output — Mode 2: 6.2V @ 0A, 12V @ 0A
- Charger Output: 5.9V max @ 0.4A (Mode 1) / 1.4A (Mode 2)

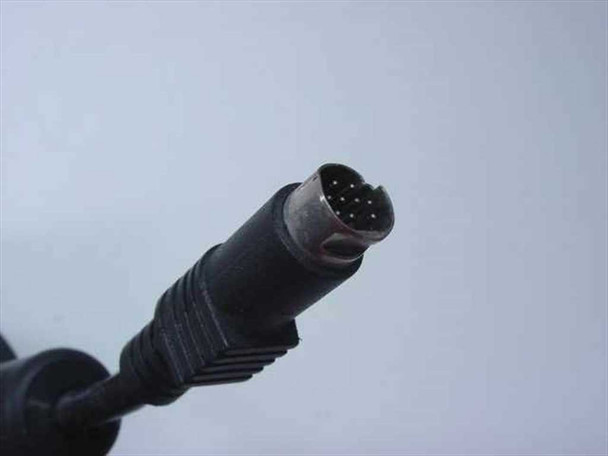

- Output Connector: Multi-pin mini-DIN style (~12-pin)
- AC Inlet: IEC C8 (figure-8 / non-polarized) — AC cord not included
- Safety Certification: GS (TÜV)
- Country of Manufacture: Taiwan
- Housing: Ribbed black plastic, vented for cooling
- Includes: AC adapter unit only — no AC power cord, no manual
Applications
The PA3270-1 was designed for use with MITAC-approved notebook computers and indoor electronic devices requiring dual DC supply rails. MITAC International was a major Taiwanese OEM notebook and computing hardware manufacturer active from the 1980s through the 2000s, producing systems under their own name as well as for branded partners. Multi-output AC adapters like this one are common in older notebook designs where a single brick must supply separate voltages for the system logic, display, and battery charging circuits. The wide-range 100–240V AC input means the adapter works on both North American and international mains power. This type of adapter remains useful as a direct replacement part for legacy MITAC-platform notebooks or any compatible device that uses the same multi-pin connector and voltage profile.
This Lite-On PA3270-1 dual-output AC adapter has been inspected and is in good condition. The housing is intact with no cracks; the output cable and multi-pin connector show light handling wear consistent with normal use. The IEC AC inlet on the rear is clean and undamaged. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Lite-On |
Model: |
PA3270-1 |
MPN: |
PA3270-1 |
Part Number: |
471014000002 |
Type: |
AC Adapter / Power Supply |
SKU: |
26045 |
AC Input Voltage: |
100-240V AC, 50/60Hz |
AC Input Current: |
0.8A |
DC Output 1 Voltage: |
6.2V |
DC Output 1 Current (Mode 1): |
2.5A |
DC Output 2 Voltage: |
12V |
DC Output 2 Current (Mode 1): |
0.35A |
Charger Output (Mode 2): |
5.9V max, 1.4A |
Number of Outputs: |
2 (dual output) |
Output Connector: |
Multi-pin (mini-DIN style, ~12-pin) |
Compatible With: |
MITAC-approved notebook/indoor products |
Safety Certification: |
GS (TÜV) |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
AC adapter only — no AC power cord included. |
Condition Notes: |
This Lite-On PA3270-1 AC adapter has been inspected and is in good condition. Housing is intact; output cable and multi-pin connector show light handling wear. Please contact us with any questions. |
