Description
Linksys PSCEPP ParaSCSI Plus Parallel to SCSI Converter EPP 1MB/s w/ Disk
The Linksys PSCEPP ParaSCSI Plus is an external parallel-to-SCSI converter that connects SCSI devices to a PC through the standard parallel printer port — no SCSI host adapter card required. It bridges the parallel port (DB-25) to a SCSI-1 or SCSI-2 bus, letting a desktop PC access scanners, hard drives, tape drives, Zip drives, and CD-ROM drives without opening the case.
Specifications & What's Included
- Model: Linksys PSCEPP (ParaSCSI Plus)

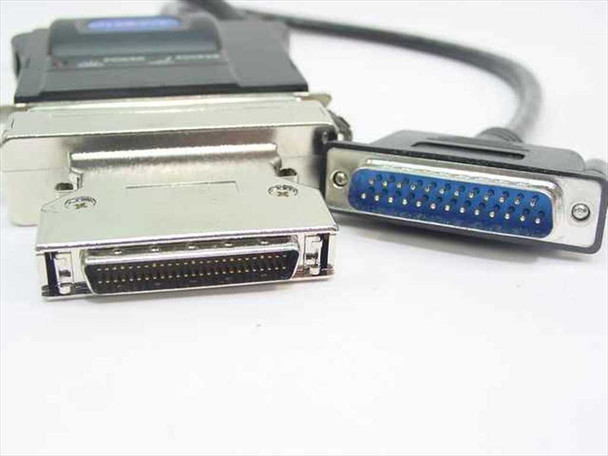

- Host connection: DB-25 parallel port
- Device connection: SCSI-1 / SCSI-2 via 50-pin Centronics connector
- Max transfer rate: 1 MB/s in EPP (Enhanced Parallel Port) mode
- Daisy-chains up to 7 SCSI-1 or SCSI-2 devices
- Operating modes: unidirectional nibble, byte, and bi-directional EPP
- Automatically detects presence of an Enhanced Parallel Port
- Parallel printer port pass-through: yes — simultaneous printer use retained
- Power: external AC adapter (included)
- Indicators: Power and Access LEDs on converter body

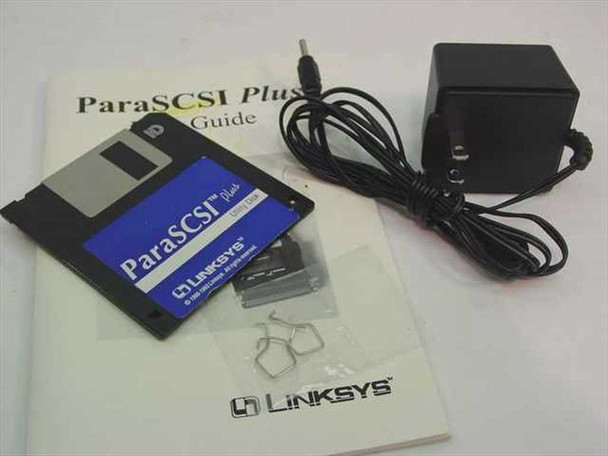

- Includes: converter unit, parallel cable (DB-25), SCSI cable, power adapter, ParaSCSI Plus utility floppy disk (3.5"), CD-ROM drivers (data and audio modes), user guide
- Packaging: original retail box (opened)
Applications
The ParaSCSI Plus was designed in the mid-to-late 1990s for PC users who needed to attach external SCSI peripherals — scanners, removable drives, CD-ROM drives, tape backup units — without installing an internal SCSI card. It was particularly useful on laptops, slim desktop PCs, or any system where adding a card was not practical. The parallel port was the one external interface common to virtually every PC of that era, and adapters like this one made it serve double duty as a SCSI host. Daisy-chaining support for up to seven devices made it flexible enough for small desktop SCSI chains. While largely superseded by USB and FireWire for external storage, these adapters remain in use for legacy SCSI device support on older systems and for retro computing and data recovery purposes.
This Linksys PSCEPP ParaSCSI Plus Parallel-to-SCSI Converter comes in its original retail box, which has been opened. The complete set is present: the converter unit, parallel and SCSI cables, power adapter, ParaSCSI Plus utility floppy disk, and user guide are all included as shown in the photos. The unit and all accessories show typical light shelf wear consistent with open-box storage. No heavy damage or missing components were noted. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Linksys |
Model: |
PSCEPP |
MPN: |
PSCEPP |
SKU: |
21115 |
Type: |
Parallel-to-SCSI Converter Adapter |
Interface: |
Parallel Port (EPP) to SCSI-1 / SCSI-2 |
Host Interface: |
Parallel Port (DB-25) |
Device Interface: |
SCSI-1 / SCSI-2 (50-pin Centronics) |
Max Data Transfer Rate: |
1 MB/s (EPP mode) |
Max Devices Supported: |
Up to 7 SCSI devices (daisy-chain) |
Parallel Port Pass-Through: |
Yes — simultaneous printer port use retained |
EPP Auto-Detection: |
Yes — automatically detects Enhanced Parallel Port |
Included Software: |
ParaSCSI Plus Utility Disk (3.5" floppy); CD-ROM drivers |
CD-ROM Driver Modes: |
Data and audio modes |
Form Factor: |
External adapter with cable |
Packaging: |
Original retail box (opened) |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Includes converter unit, SCSI cable, parallel cable, power adapter, utility floppy disk, and user guide. Original retail box (opened). |
Condition Notes: |
Linksys PSCEPP ParaSCSI Plus Parallel-to-SCSI Converter in original opened retail box. Complete set included: converter, cables, power adapter, utility floppy, and user guide. Light shelf wear only. Please contact us with any questions. |
