Description
Linksys EW20HUB Ethernet 20-Port Workgroup Hub 20x RJ45 1x BNC 10Mbps

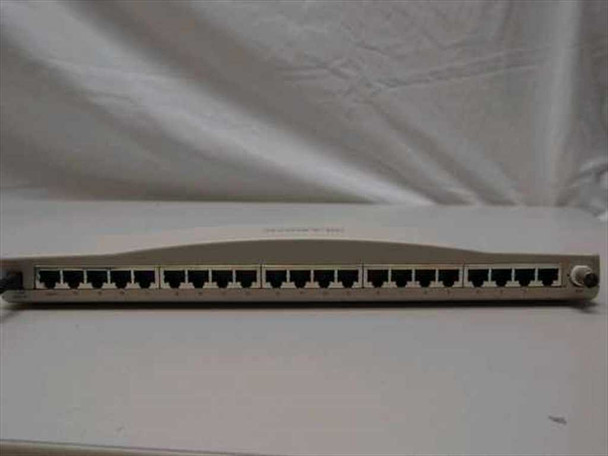

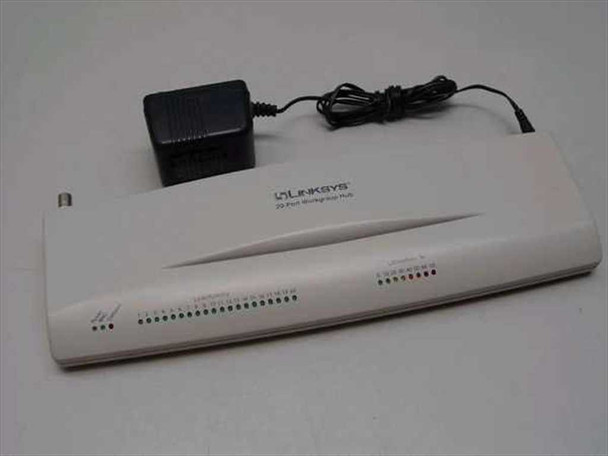

The Linksys EW20HUB is a desktop 10Mbps Ethernet workgroup hub providing 20 RJ45 (10Base-T) ports and one BNC (10Base-2/coaxial) port for connecting mixed twisted-pair and coax Ethernet segments. It operates as an unmanaged hub, broadcasting all traffic to every connected port in a shared-bandwidth configuration. Front-panel LED indicators display power status, collision activity, BNC data movement, per-port link/activity, and a utilization percentage gauge ranging from 5% to 70%.
Specifications & What's Included
- Model: Linksys EW20HUB
- Type: Unmanaged Ethernet Workgroup Hub
- Total Ports: 21 (20x RJ45 + 1x BNC)
- RJ45 Ports: 20 × 10Base-T (twisted-pair)
- BNC Port: 1 × 10Base-2 (coaxial)
- Network Speed: 10 Mbps
- Form Factor: Desktop

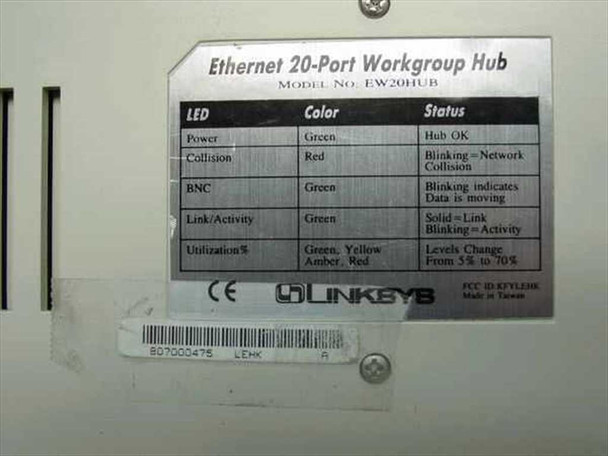

- LED Indicators: Power (green), Collision (red), BNC activity (green), Link/Activity per port (green), Utilization% (green/yellow/amber/red, 5%–70%)
- Power: 15V DC, 800mA via external AC adapter

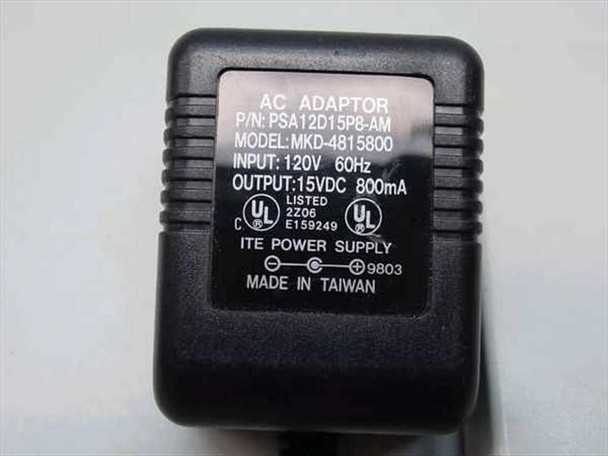

- Included AC Adapter: MKD-4815800 (P/N: PSA12D15P8-AM), input 120V 60Hz, output 15VDC 800mA, UL listed
- Country of Manufacture: Taiwan
- FCC ID: KYLE HK
- CE marked
Applications
The EW20HUB dates from the mid-to-late 1990s, the era when 10Base-T over unshielded twisted pair was the dominant small-office and workgroup networking standard. Hubs like this one were the standard way to connect a small number of PCs, printers, and servers before managed switches became affordable. The BNC port allowed connection to legacy 10Base-2 coaxial (thinnet) segments, making this unit useful as a bridge between older coax-wired segments and newer RJ45 runs — a common requirement during the transition away from coaxial Ethernet in the late 1990s. Today these hubs are primarily sought for legacy network environments, retro computing setups, period-correct lab reconstructions, and vintage networking demonstrations. Because all ports share a single 10 Mbps collision domain, throughput per device drops with more active nodes, which is typical of hub architecture as opposed to switched networking.
This Linksys EW20HUB Ethernet 20-Port Workgroup Hub has been inspected and appears to be in good used condition. It was pulled from a working environment where it was previously in use. The unit shows light surface wear consistent with normal use. The original AC adapter (MKD-4815800, 15VDC 800mA) is included. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Linksys |
Model: |
EW20HUB |
MPN: |
EW20HUB |
Type: |
Ethernet Workgroup Hub |
SKU: |
15473 |
Number of Ports: |
21 (20x RJ45 + 1x BNC) |
Port Speed: |
10 Mbps (10Base-T / 10Base-2) |
Connector Type: |
RJ45, BNC |
Network Standard: |
10Base-T, 10Base-2 |
Management Type: |
Unmanaged |
Form Factor: |
Desktop |
Power Requirements: |
15V DC 800mA (AC adapter included) |
AC Adapter Model: |
MKD-4815800 (P/N: PSA12D15P8-AM) |
AC Adapter Input: |
120V 60Hz |
Country/Region of Manufacture: |
Taiwan |
FCC ID: |
KYLE HK |
LED Indicators: |
Power, Collision, BNC, Link/Activity, Utilization% |
Seller Notes: |
Includes original AC adapter (MKD-4815800, 15VDC 800mA). |
Condition Notes: |
This Linksys EW20HUB 20-Port Ethernet Workgroup Hub is in good used condition, pulled from a working environment. Includes original AC adapter. Light surface wear consistent with normal use. |
