Description
Linksys EEHUB16 16-Port Enterprise Ethernet 10Base-T Hub AUI BNC RJ-45

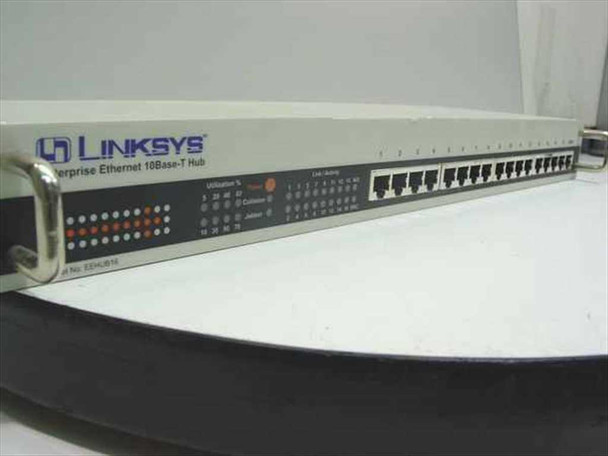

The Linksys EEHUB16 is a 16-port unmanaged Ethernet hub operating at 10 Mbps over 10Base-T (IEEE 802.3). It provides 16 RJ-45 ports for twisted-pair connections plus a BNC coax port for 10Base-2 (thin Ethernet) connectivity and an AUI (DB-15) port for external transceiver uplinks, making it a versatile device for mixed-media legacy Ethernet environments. The front panel features a multi-segment LED utilization bar graph (5–70%) along with Power, Collision, and Jabber status indicators for basic network monitoring.
Specifications & What's Included
- Model: Linksys EEHUB16
- Network Standard: 10Base-T, IEEE 802.3
- Data Rate: 10 Mbps
- Number of Ports: 16 × RJ-45 (10Base-T)
- Uplink – BNC coax port (10Base-2 / thin Ethernet)
- Uplink – AUI DB-15 port (external transceiver, with Disable Transceiver/SQE switch)

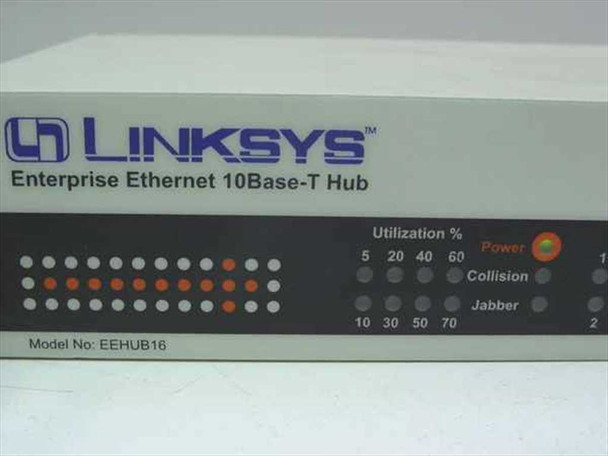

- Front panel: LED utilization bar graph (5, 10, 20, 30, 40, 50, 60, 70%), Power LED, Collision LED, Jabber LED
- Power input: 90–250V AC, 50–60Hz (IEC C14 inlet)

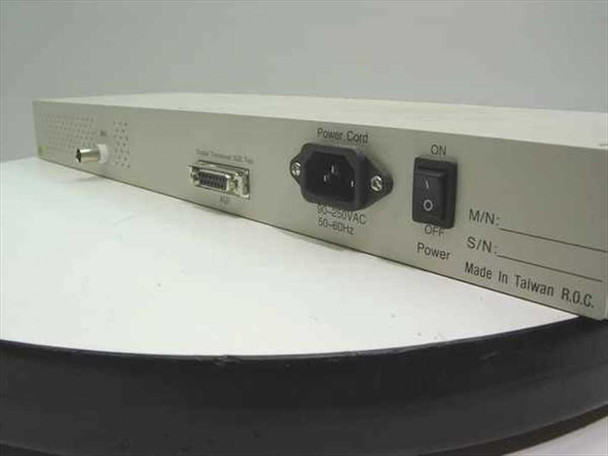

- Rear power switch: rocker on/off
- Form factor: 1U rackmount
- Country of manufacture: Taiwan, R.O.C.
- Hub only — no power cord, cables, or rack hardware included
Applications
The EEHUB16 dates from the mid-to-late 1990s, when 10Base-T shared Ethernet hubs were the standard building block of office and enterprise LAN wiring closets. In a hub topology all ports share a single collision domain at 10 Mbps, which distinguishes it from a modern switch. The combination of RJ-45, BNC, and AUI ports made it practical in transitional networks that still had coaxial 10Base-2 segments or external AUI transceivers (fiber, thicknet). Today these hubs are sought by vintage networking enthusiasts, retro computing hobbyists maintaining period-correct 1990s LAN setups, and anyone needing simple 10Base-T connectivity for legacy equipment such as older workstations, industrial controllers, or test instruments that lack support for Fast Ethernet or auto-negotiation. The built-in utilization and collision LEDs provide a passive view of traffic load without requiring any management software.
This Linksys EEHUB16 16-Port Enterprise Ethernet 10Base-T Hub has been pulled from a working environment where it was previously in use. It has been visually inspected and photographed. The unit shows normal cosmetic wear consistent with prior rack or office use. The front-panel LEDs, RJ-45 ports, BNC connector, and AUI port all appear intact with no visible damage. It has not been powered up or tested at our facility. Please review all photos and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Linksys |
Model: |
EEHUB16 |
MPN: |
EEHUB16 |
SKU: |
20620 |
Type: |
Ethernet Hub |
Number of Ports: |
16 |
Network Standard: |
10Base-T (IEEE 802.3) |
Data Rate: |
10 Mbps |
Port Type: |
RJ-45 |
Uplink Ports: |
BNC (10Base-2), AUI (15-pin DB-15) |
Management Type: |
Unmanaged |
Form Factor: |
1U Rackmount |
Power Requirements: |
90-250V AC, 50-60Hz |
Country/Region of Manufacture: |
Taiwan |
Seller Notes: |
Hub only — no power cord, cables, or rack ears included. |
Condition Notes: |
This Linksys EEHUB16 16-Port 10Base-T Hub was pulled from a working environment. Visually inspected; shows normal cosmetic wear. Not powered or tested at our facility. Please view photos and contact us with questions. |
