Description
Leybold Trivac D8B Dual Stage Rotary Vane Vacuum Pump 8m³/h 0.001mbar 3/4HP
The Leybold Trivac D8B is an oil-sealed dual stage rotary vane mechanical vacuum pump capable of reaching an ultimate pressure of 1×10⁻⁴ mbar. It is driven by a Marathon Electric single-phase motor and mounted on a common base plate. The unit includes a gasballast valve for handling condensable vapors and an oil sight glass for monitoring lubrication level.
Specifications & What's Included
- Manufacturer: Leybold Vacuum USA, Export, PA
- Model: Trivac D8B
- Catalog Number: 91255-2
- Secondary Part Number: 30000487175
- Pump Type: Oil-sealed dual stage rotary vane mechanical vacuum pump
- Volume Flow Rate: 8 m³/h
- Ultimate Pressure: 1×10⁻⁴ mbar (0.0001 mbar)
- Gasballast valve: Yes (present on pump body)
- Oil sight glass: Present (oil visible)

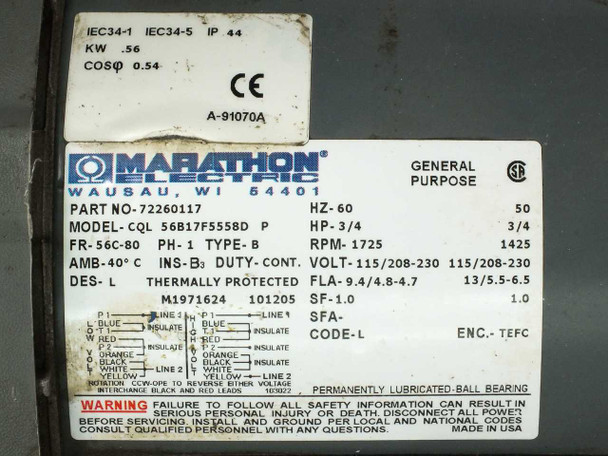

- Motor Brand: Marathon Electric, Wausau, WI
- Motor Model: CQL 56B17F5558D P
- Motor Part Number: 72260117
- Motor Frame: 56C
- Motor Power: 3/4 HP (0.56 kW)
- Motor Insulation Class: B, Type: General Purpose
- Motor Enclosure: TEFC (Totally Enclosed Fan Cooled)
- Motor Bearing: Permanently lubricated ball bearing
- Phase: Single Phase
- 60 Hz: 115 / 208–230V AC, 9.4 / 4.8–4.7A, 1725 RPM
- 50 Hz: 115 / 208–230V AC, 13 / 5.5–6.5A, 1425 RPM
- IP Rating: IP 44 (IEC 34-1, IEC 34-5)
- Country of Manufacture: United States (Assembled in USA)
- Includes: Pump and motor assembly on base plate — no accessories, cables, or fittings included
Applications
The Leybold Trivac D series is a long-established line of compact oil-sealed rotary vane pumps widely used as roughing and backing pumps in laboratory and light industrial vacuum systems. The dual-stage design allows the D8B to reach deeper ultimate pressures than a single-stage pump of comparable displacement — making it suitable for applications that require pressures in the 10⁻³ to 10⁻⁴ mbar range. Typical uses include backing turbomolecular pumps and diffusion pumps, vacuum coating and thin-film deposition systems, freeze drying (lyophilization), vacuum ovens and furnaces, analytical instrumentation, and general laboratory vacuum service. The gasballast feature allows the pump to handle water vapor and other condensable gases without contaminating the oil, which is especially useful in drying and distillation applications. The Trivac D8B has been a standard workhorse pump in semiconductor research, surface science, and materials processing labs for decades.
This Leybold Trivac D8B dual stage rotary vane vacuum pump has been inspected and photographed. The pump body and motor show general use wear consistent with lab or industrial service — the white pump housing has marks, scuffs, and handwritten notations on the top, and the base plate shows paint wear and surface oxidation. The Marathon Electric motor body has some paint weathering and the lead wires are bare/stripped at the end rather than terminated with a connector. The oil sight glass is visible on the front panel and shows oil present. The pump has not been powered up or tested at our facility, but it was pulled from a working environment where it was previously in use. Please view our photo set and contact us if you have any questions.
Warranty Information
Additional Information
Brand: |
Leybold |
Model: |
Trivac D8B |
MPN: |
91255-2 |
Secondary Model: |
30000487175 |
Type: |
Dual Stage Rotary Vane Mechanical Vacuum Pump |
SKU: |
51628 |
Motor Brand: |
Marathon Electric |
Motor Model: |
CQL 56B17F5558D P |
Motor Part Number: |
72260117 |
Motor Power: |
3/4 HP (0.56 kW) |
Motor Frame: |
56C |
Motor Enclosure: |
TEFC (Totally Enclosed Fan Cooled) |
Motor Insulation Class: |
B |
Phase: |
Single Phase |
Voltage: |
115/208-230V AC |
Frequency: |
50/60 Hz |
Current (60 Hz): |
9.4 / 4.8-4.7 A |
Current (50 Hz): |
13 / 5.5-6.5 A |
Motor Speed (60 Hz): |
1725 RPM |
Motor Speed (50 Hz): |
1425 RPM |
Power Requirements: |
115/208-230V AC, Single Phase, 50/60 Hz |
Volume Flow Rate: |
8 m³/h |
Ultimate Pressure: |
1 x 10⁻⁴ mbar (0.0001 mbar) |
Number of Stages: |
2 (Dual Stage) |
Pump Mechanism: |
Rotary Vane |
Pump Type: |
Oil-Sealed Mechanical Vacuum Pump |
Lubrication: |
Oil-Sealed (oil level window visible on front) |
Gasballast: |
Yes (Gasballast valve present) |
IP Rating: |
IP 44 |
IEC Standard: |
IEC 34-1, IEC 34-5 |
Country/Region of Manufacture: |
United States |
Seller Notes: |
Pump unit with Marathon electric motor on base plate. No accessories included. |
Condition Notes: |
This Leybold Trivac D8B vacuum pump shows general use wear — scuffs and markings on the pump housing, paint wear on the base, and bare wire leads on the motor. Not tested at our facility; pulled from a working environment. |
