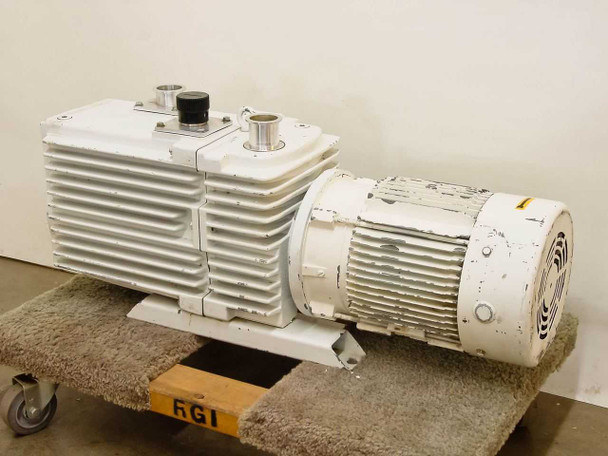

Leybold-Heraeus D60AC Trivac Two-Stage Rotary Vane Vacuum Pump 208V 3Ph 698189
The Leybold-Heraeus D60AC is a two-stage rotary vane vacuum pump from the Trivac series, designed for demanding industrial and scientific vacuum applications. It is driven by an integral three-phase motor and is capable of achieving deep vacuum levels suited to processes requiring a reliable, oil-sealed mechanical pump. This unit has been tested and found to be in good working condition at 208V AC, 3-phase.
Specifications & What's Included
- Make: Leybold-Heraeus
- Model: D60AC (Trivac series)
- Catalog No.: 698189
- Pump Type: Two-stage rotary vane, oil-sealed
- Drive: Integral three-phase electric motor
- Operating Voltage: 208V AC, 3-phase (tested at this voltage)
- Recommended Pump Oil: HE-200 (per nameplate)
- Mounting: Floor/base-mounted unit on wheeled caster dolly
- Inlet/Outlet: NW/KF flange fittings visible on top of pump body
- Country of Manufacture: USA (per nameplate)
- Note: Oil has been drained prior to shipping — must be refilled with HE-200 or equivalent before operation
- Note: During testing at 208V the pump appeared slightly underpowered; it may be optimized for a higher supply voltage. No motor nameplate specs were available to confirm the full voltage range — verify against your supply before use.
Applications
The Leybold Trivac D-series two-stage rotary vane pumps are workhorses of industrial and scientific vacuum systems, widely used as roughing pumps or backing pumps in a broad range of applications. They are commonly found in semiconductor fabrication, thin-film coating (PVD/CVD), electron microscopy, freeze drying/lyophilization, mass spectrometry, vacuum furnaces, and general laboratory vacuum lines. In these roles they evacuate a chamber or back a high-vacuum pump (such as a turbomolecular or diffusion pump) down to the medium-vacuum range. The D60AC's relatively large displacement makes it suitable for higher-throughput processes where fast pumpdown of larger chambers is needed. Leybold-Heraeus, headquartered in Germany, has been a leading manufacturer of vacuum equipment since the mid-20th century; the Trivac series has been a standard in vacuum labs and production lines for decades.
This Leybold-Heraeus D60AC Trivac rotary vane vacuum pump has been tested and found to be in good working condition at 208V AC 3-phase. During testing, the pump seemed slightly underpowered at 208V and may perform better at a higher voltage — there are no motor specs on the unit to confirm the full voltage range, so buyers should verify this against their intended supply voltage before use. The motor housing shows paint chipping and wear consistent with industrial use. Oil has been drained from the pump prior to shipping; it must be refilled with the appropriate vacuum pump oil (HE-200 or equivalent) before operating. Please review our photos for a full view of cosmetic condition, and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Leybold-Heraeus |
Model: |
D60AC |
MPN: |
698189 |
Type: |
Two-Stage Rotary Vane Vacuum Pump |
SKU: |
39230 |
Seller Notes: |
Pump only on wheeled base. Oil drained prior to shipping — must be refilled before use. |
Country/Region of Manufacture: |
United States |
Form Factor: |
Floor/Base-Mounted with Caster Dolly |
Power Requirements: |
208V AC, 3-Phase |
Voltage: |
208V AC |
Phase: |
3-Phase |
Pump Type: |
Two-Stage Rotary Vane |
Pump Series: |
Trivac |
Recommended Oil: |
HE-200 |
Catalog Number: |
698189 |
Condition Notes: |
Leybold-Heraeus D60AC Trivac vacuum pump tested working at 208V 3-phase. Seemed slightly underpowered at 208V — may need higher voltage. Oil drained for shipping; refill before use. Motor housing shows paint chipping. Good working condition. |
