Leybold D60AC TRIVAC Rotary Vane Vacuum Pump 36.7 CFM 208-460V 3-Phase 2HP 60Hz

Leybold D60AC TRIVAC Rotary Vane Vacuum Pump 36.7 CFM 208-460V 3-Phase 2HP 60Hz

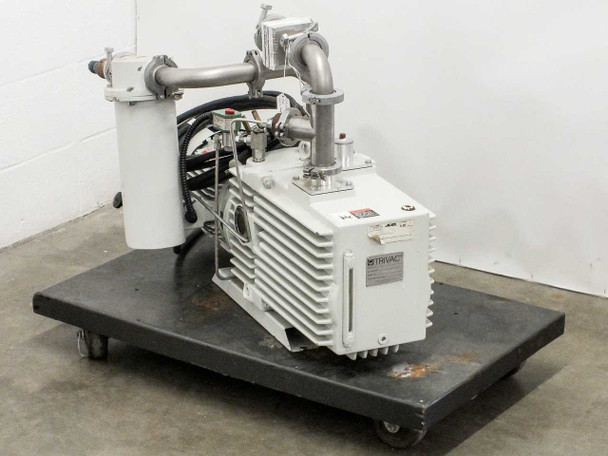

The Leybold D60AC is a two-stage rotary vane vacuum pump from Leybold's TRIVAC series — a long-running line of industrial and laboratory vacuum pumps built for demanding, continuous-duty applications. This unit powered on and produced a strong vacuum during our brief test. It currently has no oil and will need to be filled before further operation. A rebuild kit is recommended to return the pump to full manufacturer specifications.

Specifications & What's Included

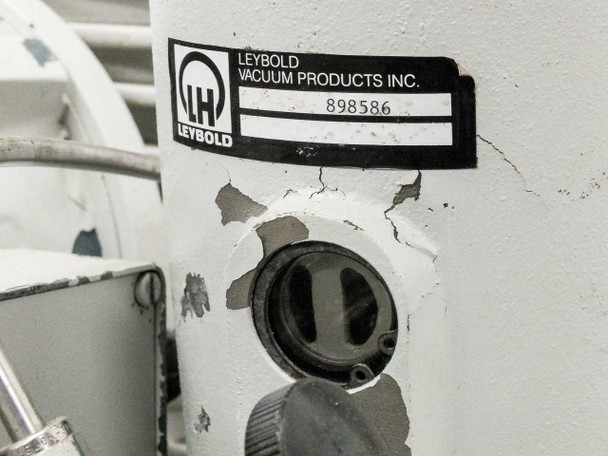

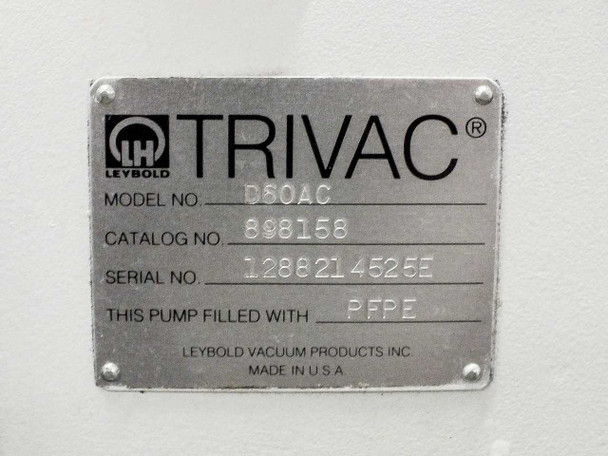

• Make: Leybold Vacuum Products Inc.
• Model: D60AC (TRIVAC series)
• Catalog Number: 898158
• Pump displacement / flow rate: 36.7 CFM
• Pump fill fluid: PFPE (perfluoropolyether — suitable for chemically aggressive or corrosive process gases)

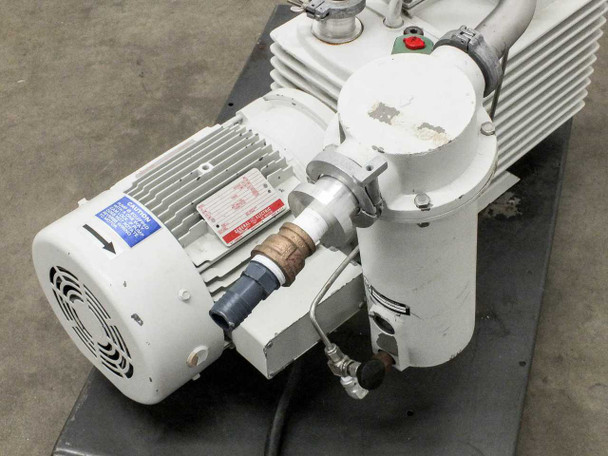

• Motor: General Electric TRICLAD AC Motor, Model 5K184FX3631A
• Motor type: TEFC (Totally Enclosed Fan Cooled)
• Motor power: 2 HP
• Motor speed: 1105 RPM
• Voltage (60Hz): 208-230V / 416-460V (dual voltage)
• Amperage (60Hz): 8.2–9A (208-230V) / 4.1–4.5A (416-460V)
• Voltage (50Hz): 200-220V / 380V (per secondary nameplate)
• Amperage (50Hz): 11.5A / 4.7A (per secondary nameplate)
• Phase: 3-Phase
• Motor service factor: 1.2
• Country of manufacture: United States

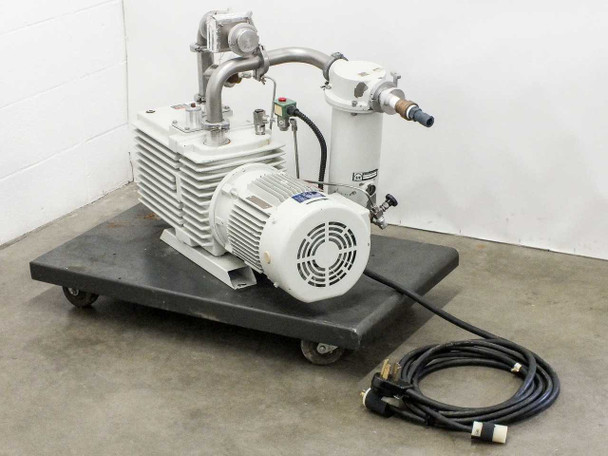

• Includes: pump and motor assembly mounted on wheeled dolly, power cable
• Does not include oil — pump must be filled before operation
• Rebuild kit recommended to return to full manufacturer specifications

Applications

The Leybold TRIVAC D-series rotary vane vacuum pumps are widely used as backing or roughing pumps in semiconductor processing, thin-film coating (PVD/CVD), R&D vacuum systems, mass spectrometry, freeze drying, and general industrial vacuum applications. The TRIVAC D60AC's PFPE fill makes it particularly suited for processes involving aggressive or corrosive gases — such as plasma etch, chemical vapor deposition, and other chemically demanding semiconductor or industrial processes — where a standard hydrocarbon oil would degrade. The TRIVAC series has been a staple of laboratory and industrial vacuum systems since the 1970s and remains in widespread use today. Two-stage rotary vane pumps like this one are capable of reaching rough/medium vacuum levels (typically into the low mTorr range) and serve as the primary backing pump in diffusion pump or turbomolecular pump systems that require deeper vacuum. This unit's dual-voltage, dual-frequency motor also makes it usable with both North American (60Hz) and international (50Hz) power systems.
