Leybold D2.5E Trivac E Two-Stage Rotary Vane Vacuum Pump 2.5m3/h 220-240V
The Leybold D2.5E is a two-stage, oil-sealed rotary vane vacuum pump from Leybold Vakuum's Trivac E series. It achieves an ultimate pressure of ≤ 2 × 10⁻³ mbar, making it suitable for roughing and backing applications in laboratory and industrial vacuum systems. This unit has been powered on and tested at our facility and is in good working order.
Specifications & What's Included
- Manufacturer: Leybold Vakuum GmbH, Cologne, Germany
- Pump Series: Trivac E – Two-Stage Oil-Sealed Rotary Vane Pump
- Model: D2.5E (also written D2,5E / D 2,5 E)

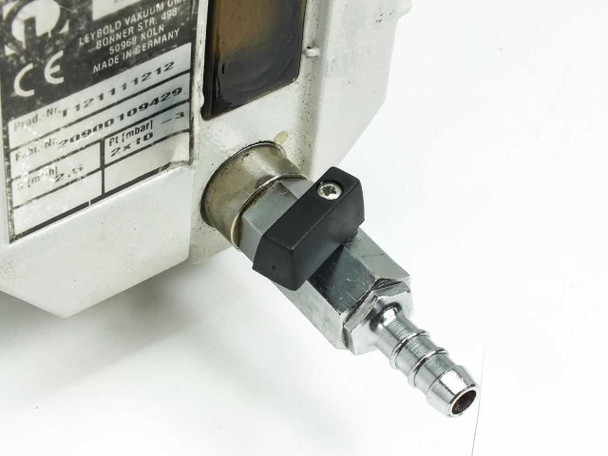

- Part Number: T121111212
- Equipment Number: 20900109429
- Pumping Speed: 2.5 m³/h
- Ultimate Pressure: ≤ 2 × 10⁻³ mbar
- Vacuum Inlet / Outlet Port Size: DN 16 ISO-KF (DN16KF)
- Motor Manufacturer: Hanning Elektro-Werke
- Motor Model: E7B4B3-7-224
- Supply Voltage: 220–240V AC
- Frequency / Current / Speed (50Hz): 50 Hz / 1.8A / 1400 RPM
- Frequency / Current / Speed (60Hz): 60 Hz / 1.4A / 1600 RPM
- Motor Power: 280W (50Hz) / 300W (60Hz) — 0.38–0.40 HP
- Motor Insulation Class: F
- Motor IP Rating: IP54
- Motor Capacitor: 10 µF, 400V
- Certifications: CE, VDE 0530
- Gas ballast valve present (rotary knob, positions 0/1)
- Spring-loaded exhaust valve assembly visible on top
- Power cable: Carol 14/3 SJOW water-resistant (Made in USA)
- Includes pump as shown — no oil bottle or additional accessories
Applications
The Trivac E series is Leybold's compact, single-phase rotary vane pump line designed for benchtop and small-system vacuum applications. The D2.5E is widely used as a roughing pump and backing pump in laboratory settings including electron microscopy, mass spectrometry, vacuum coating, freeze-drying, and analytical instrumentation. Its two-stage design allows it to reach pressures in the 10⁻³ mbar range without a Roots booster, making it a versatile standalone rough-vacuum source. These pumps are also common in academic research labs, semiconductor process development, and OEM integration into vacuum systems where a compact, single-phase pump is required. The Trivac E line was manufactured in Germany by Leybold Vakuum GmbH and has been a long-standing workhorse in European and global lab environments from the 1990s onward. An oil level check and oil change are always recommended when returning an oil-sealed rotary vane pump to service.
This Leybold D2.5E Trivac E two-stage rotary vane vacuum pump has been powered on and tested at our facility and is in good working order. As with any oil-sealed rotary vane pump returning to service, an oil level check and oil change are recommended before use. The pump shows normal wear consistent with used lab equipment. Please review all photos and contact us with any questions.
Warranty Information
Additional Information
Brand: |
Leybold |
Model: |
D2.5E |
MPN: |
T121111212 |
Secondary Model: |
D2,5E / D 2,5 E |
SKU: |
46220 |
Type: |
Two-Stage Oil-Sealed Rotary Vane Vacuum Pump |
Pump Series: |
Trivac E |
Pumping Speed: |
2.5 m³/h |
Ultimate Pressure: |
≤ 2 × 10⁻³ mbar |
Voltage: |
220-240V AC |
Frequency: |
50/60 Hz |
Current: |
1.8A @ 50Hz / 1.4A @ 60Hz |
Power: |
280W (50Hz) / 300W (60Hz) |
Motor Power (HP): |
0.38 – 0.40 HP |
Motor Speed: |
1400 RPM (50Hz) / 1600 RPM (60Hz) |
Motor Model: |
Hanning E7B4B3-7-224 |
Motor Insulation Class: |
F |
Motor IP Rating: |
IP54 |
Inlet/Outlet Port Size: |
DN 16 ISO-KF (DN16KF) |
Number of Stages: |
2 |
Lubrication Type: |
Oil-Sealed |
Country/Region of Manufacture: |
Germany |
Form Factor: |
Benchtop |
Power Requirements: |
220-240V AC, 50/60Hz, 1.8A/1.4A |
Certifications: |
CE, VDE 0530 |
Seller Notes: |
Pump only — no oil bottle or accessories included beyond what is shown in photos. |
Condition Notes: |
This Leybold D2.5E Trivac E vacuum pump has been powered on and tested good. An oil level check and oil change are recommended before use. Shows normal wear. Please view photos and contact us with questions. |
