Description
Leybold SOGEVAC SV65 BI FC Vacuum Pump 960465V3001 200-240V 3-Phase 1.5kW
The Leybold SOGEVAC SV65 BI FC is a single-stage rotary vane vacuum pump manufactured by Oerlikon Leybold Vacuum France. The SV65 BIFC model features a built-in integrated frequency converter (the Leroy Somer VARMECA drive), which provides variable speed control and motor protection in a compact, self-contained package. This unit was manufactured in 2015 and carries NRTL (C/US) and CE certification. It was pulled from a working laboratory environment and has not been powered up or tested at our facility.
Specifications & What's Included
- Manufacturer: Oerlikon Leybold Vacuum France

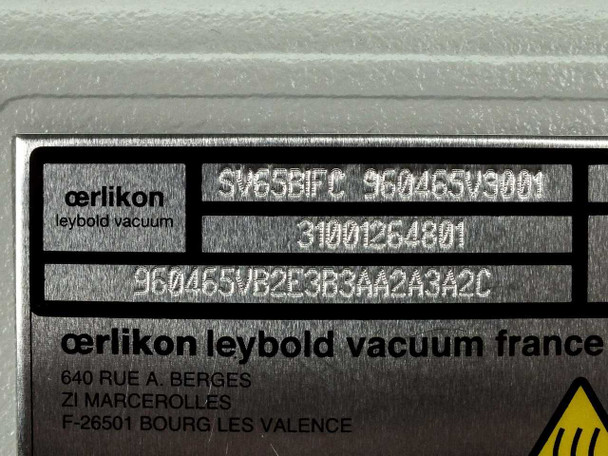

- Part Number: 960465V3001
- Model: SOGEVAC SV65 BI FC (SV65BIFC)
- Type: Single-Stage Rotary Vane Vacuum Pump with Integrated Frequency Converter
- Manufacture Year: 2015
- Input Voltage: 200–240V AC (operating range 180–264V)
- Phase: Three-Phase
- Frequency: 50/60 Hz
- Power: 1.5 kW
- Current: 12A
- Max Operating Pressure (continuous duty): 1000 mbar
- Motor: Leroy Somer 3~LS90L
- Motor Speed: 1390 rpm (50Hz) / 1690 rpm (60Hz)
- Motor Insulation Class: F
- Motor Protection: IP40 / IK08
- Integrated Drive/Controller: Leroy Somer VARMECA VFD
- Recommended Oil: Di Ester Oil ISO VG32 – LVO200
- Certifications: CE, NRTL (C/US, RUAA)
- Country of Manufacture: France
- Overall Dimensions: 21" x 14" x 14"
- Includes: Pump with integrated motor/drive, power cable (as shown); inlet port cap in place
Applications
The SOGEVAC SV65 series are industrial-grade single-stage rotary vane pumps widely used in laboratory, research, and industrial process environments. Typical applications include vacuum drying ovens, freeze dryers, coating and thin-film deposition systems, semiconductor process chambers, analytical instrumentation, and general laboratory vacuum needs. The
This Leybold SOGEVAC SV65 BI FC rotary vane vacuum pump (960465V3001) has not been powered up or tested at our facility. It was pulled from a working laboratory where it had been in active service. The pump body and motor are intact with no visible damage; the oil sight glass, brass oil drain fitting, and inlet/exhaust port caps are all present as shown. Some minor surface soiling is visible around the oil area, consistent with normal use. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Leybold |
Model: |
SOGEVAC SV65 BI FC |
MPN: |
960465V3001 |
Secondary Model: |
SV65BIFC |
Type: |
Single-Stage Rotary Vane Vacuum Pump |
SKU: |
51606 |
Seller Notes: |
Pump only — power cable included as shown in photos. |
Country/Region of Manufacture: |
France |
Manufacturer: |
Oerlikon Leybold Vacuum France |
Manufacture Year: |
2015 |
Form Factor: |
Floor / Benchtop |
Power Requirements: |
200-240V AC, 3-Phase, 50/60Hz |
Voltage: |
200-240V AC (operating range 180-264V) |
Current Rating: |
12A |
Power Rating: |
1.5 kW |
Frequency: |
50/60 Hz |
Phase: |
Three Phase |
Motor: |
Leroy Somer 3~LS90L |
Motor Speed (50Hz): |
1390 rpm |
Motor Speed (60Hz): |
1690 rpm |
Motor Insulation Class: |
F |
Motor Protection Rating: |
IP40 / IK08 |
Drive / Controller: |
Leroy Somer VARMECA integrated VFD |
Recommended Oil: |
Di Ester Oil ISO VG32 – LVO200 |
Certifications: |
CE, NRTL (C/US) |
Overall Dimensions: |
21" x 14" x 14" |
Compatible With: |
Oerlikon Leybold SOGEVAC SV40/65 BIFC series |
Application: |
Laboratory, industrial, semiconductor, coating processes |
Condition Notes: |
This Leybold SOGEVAC SV65 BI FC vacuum pump (960465V3001) has not been tested at our facility. Pulled from a working lab. Pump body, motor, and fittings intact; minor surface soiling near oil area. Please view photos and contact us with questions. |
