Leybold SOGEVAC SV65 BI FC Vacuum Pump 960465V3001 200-240V 3-Phase 1.5kW
The Leybold SOGEVAC SV65 BI FC is an oil-sealed rotary vane vacuum pump designed for industrial and laboratory vacuum applications. The "BI" designation indicates a built-in oil mist filter, and "FC" indicates an integrated frequency converter (Varmeca variable-frequency drive) mounted directly on the motor, allowing variable-speed operation and soft-start capability without an external VFD. Manufactured in France by Oerlikon Leybold Vacuum, this is a 2012-production unit.
Specifications & What's Included
- Manufacturer: Leybold (Oerlikon Leybold Vacuum France)

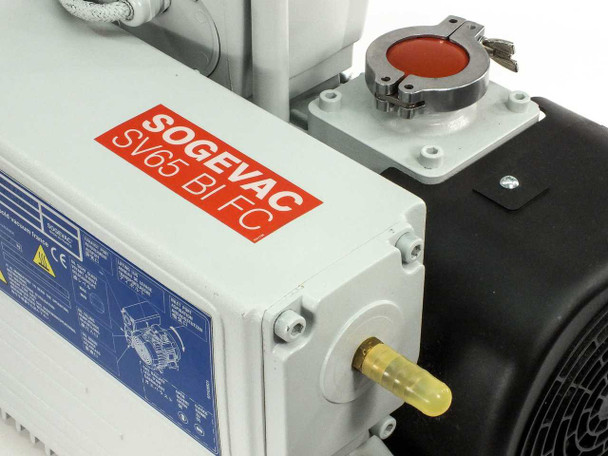

- Model: SOGEVAC SV65 BI FC

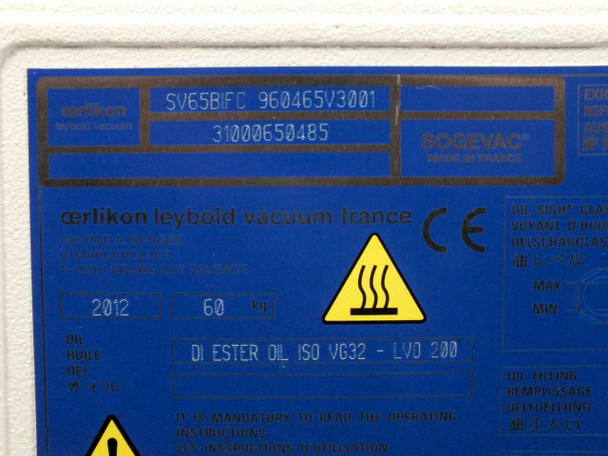

- Part Number: 960465V3001
- Year of Manufacture: 2012
- Type: Oil-sealed rotary vane vacuum pump with integrated frequency converter

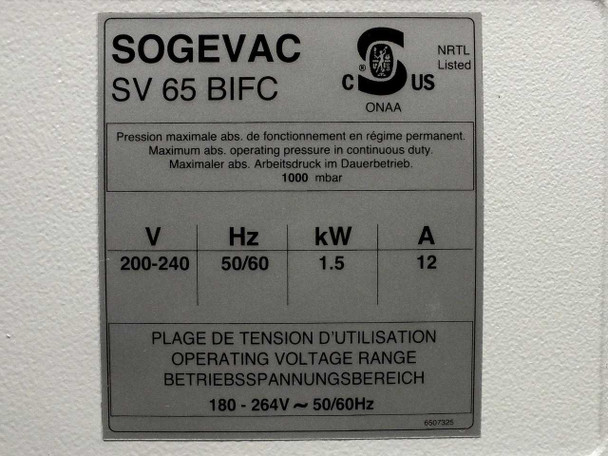

- Input Voltage: 200–240V AC, 3-Phase
- Operating Voltage Range: 180–264V AC, 50/60 Hz
- Power Rating: 1.5 kW
- Current Rating: 12 A
- Frequency: 50/60 Hz
- Maximum Absolute Operating Pressure (continuous duty): 1000 mbar
- Motor: Leroy Somer 3~LS90L, IP 40, IK08, Class F insulation
- Motor Speed: 1390 RPM @ 50 Hz / 1690 RPM @ 60 Hz
- Lubrication: Oil-sealed; specified oil Di Ester ISO VG32 – LVO 200

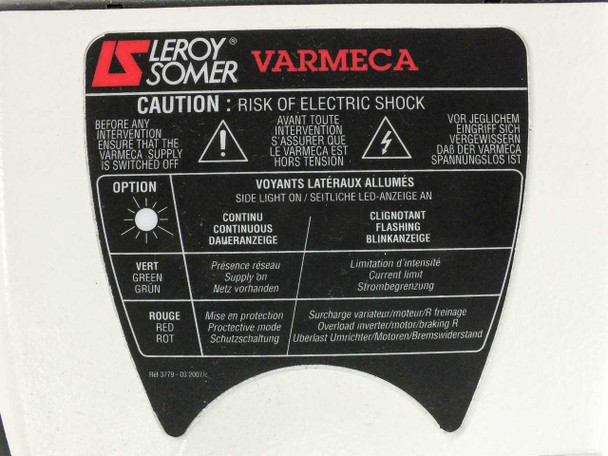

- Integrated Drive: Leroy Somer Varmeca frequency converter with LED status indicators
- Certifications: CE, NRTL Listed (cULus, ONAA)
- Dimensions: 21" x 14" x 14"
- Includes: Power cable and DB9 connector (as shown in photos)
Applications
The SOGEVAC SV series is Leybold's line of single-stage oil-sealed rotary vane pumps, widely used as backing pumps and roughing pumps in scientific and industrial vacuum systems. The SV65 is sized for medium-throughput applications and is commonly found in semiconductor research and production environments, thin-film deposition systems (PVD/CVD), freeze drying, leak detection equipment, analytical instrumentation, and general laboratory vacuum lines. The integrated FC frequency converter drive allows the pump speed to be adjusted to match process demands and provides a soft start that reduces mechanical stress on startup — a feature particularly valued in continuous-duty lab and production settings. The SOGEVAC BI variant incorporates an internal oil mist separator, reducing oil carryover into the exhaust and minimizing the need for external filtration.

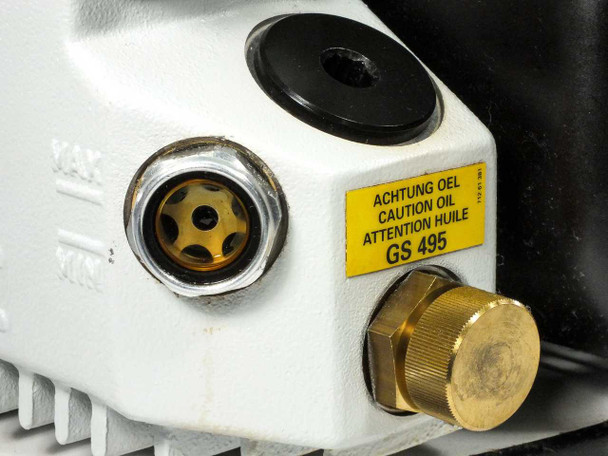

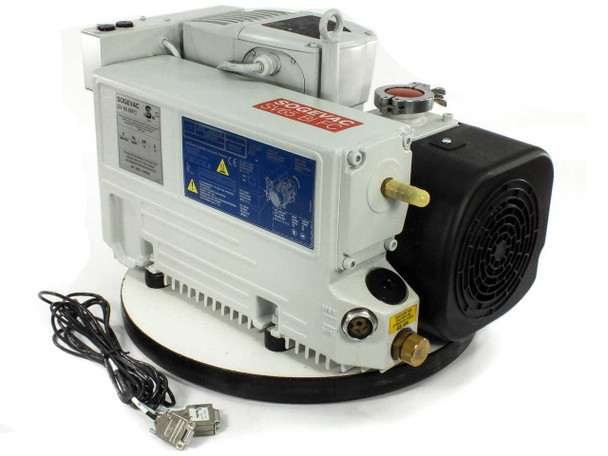

This Leybold SOGEVAC SV65 BI FC rotary vane vacuum pump has not been powered up or tested at our facility. It was pulled from a working laboratory where it was previously in active service. The pump shows normal cosmetic wear consistent with lab use — the gray housing is clean overall with minor scuffing, the motor and cooling fan assembly appear intact, and the oil sight glass and brass fittings are present. The Varmeca frequency converter drive, power cable, and DB9 connector are included as shown in the photos. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
Leybold |
Model: |
SOGEVAC SV65 BI FC |
MPN: |
960465V3001 |
Secondary Model: |
SV65BIFC |
SKU: |
51607 |
Type: |
Oil-Sealed Rotary Vane Vacuum Pump |
Voltage: |
200-240V AC |
Phase: |
3-Phase |
Frequency: |
50/60 Hz |
Power Rating: |
1.5 kW |
Current Rating: |
12 A |
Motor: |
Leroy Somer 3~LS90L |
Motor Speed (50Hz): |
1390 RPM |
Motor Speed (60Hz): |
1690 RPM |
Motor Enclosure: |
IP 40, IK08, Class F |
Drive Type: |
Frequency Converter (FC) / Varmeca Drive |
Lubrication: |
Oil-sealed; Di Ester Oil ISO VG32 - LVO 200 |
Year of Manufacture: |
2012 |
Certifications: |
CE, NRTL Listed (cULus ONAA) |
Country/Region of Manufacture: |
France |
Dimensions: |
21" x 14" x 14" |
Form Factor: |
Benchtop / Floor-Standing |
Seller Notes: |
Pump only — includes power cable and DB9 connector as shown in photos. |
Condition Notes: |
This Leybold SOGEVAC SV65 BI FC vacuum pump (960465V3001) has not been tested at our facility. Pulled from a working lab. Shows normal cosmetic wear; housing, motor, and fittings appear intact. Includes power cable and DB9 connector. |
