Lexmark 69G3199 RIP Board Optra 4049 Laser Printer Controller Card EC 530697

Lexmark 69G3199 RIP Board Optra 4049 Laser Printer Controller Card EC 530697

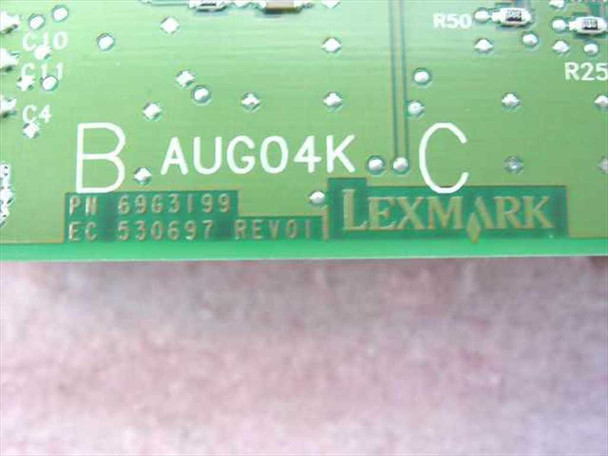

The Lexmark 69G3199 is the RIP (Raster Image Processor) and formatter controller board for the Lexmark Optra 4049 series laser printer. This board handles the core print-processing functions of the printer — receiving print data from the host, rasterizing it, and driving the laser engine — making it the central logic card of the 4049 platform. Part number 69G3199 is printed directly on the PCB, along with engineering change code EC 530697 REV01.

Specifications & What's Included

• Manufacturer Part Number (MPN): 69G3199
• Engineering Change / Revision: EC 530697 REV01
• Compatible Printer Models: Lexmark Optra 4049-RAO, 4049-RBO, 4049-12L, 4049-12R
• Board type: RIP / Formatter Controller PCB

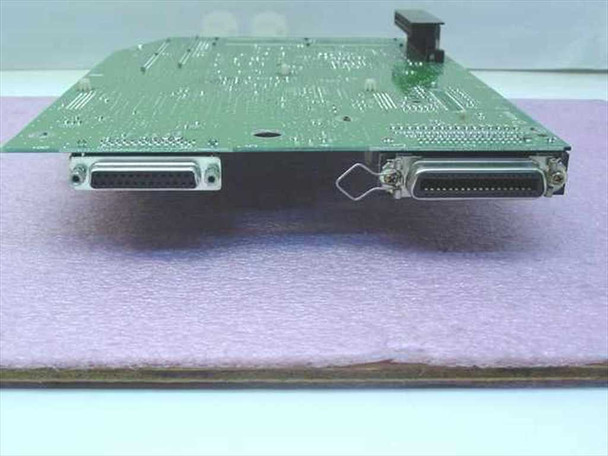

• Connectors visible: dual parallel (DB25-style) interface ports on rear bracket edge

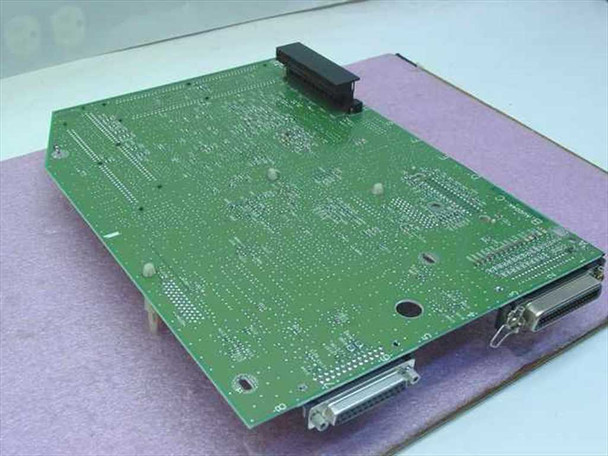

• Additional edge connector: black multi-pin connector on board top edge (engine interface)
• Flat/ribbon cable connector: present on board surface (paper-path / sensor interface)

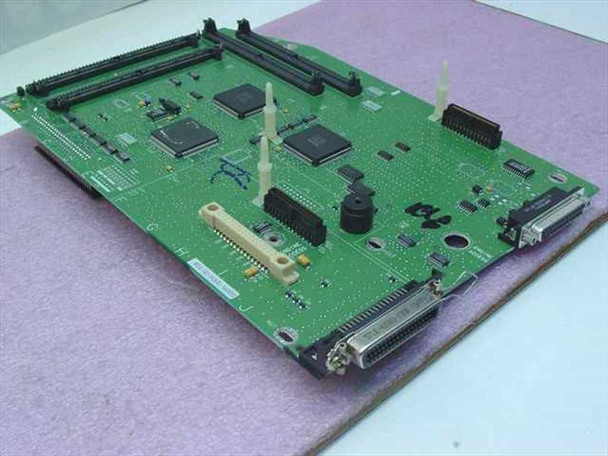

• Multiple large ICs on top side (main processor and support logic)
• Board only — no cables or mounting hardware included

Applications

The Lexmark Optra 4049 was a mid-1990s workgroup laser printer in Lexmark's Optra series — one of Lexmark's first major printer families after the company was spun off from IBM in 1991. The 4049 platform was positioned as a departmental printer for office and light-production environments, available in several configurations (RAO, RBO, 12L, 12R) that varied in paper handling and finishing options. The RIP/formatter board is the component most commonly needed for repair when a 4049 stops processing print jobs or loses communication with the host — the engine itself often remains functional while the controller has failed. Replacement formatter boards for these printers are increasingly scarce as the platform ages, making a good-condition pull like this one a practical find for anyone maintaining 4049 hardware in a legacy print environment.
