Lexel

Lexel 95-5 Ion Laser 109-001-L2 w/Model 295 Power Supply 8W CW Argon For Parts

(No reviews yet) Write a Review
SKU:
39732
MPN:
Model 95-5
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
204.00 LBS
Shipping:
Calculated at Checkout

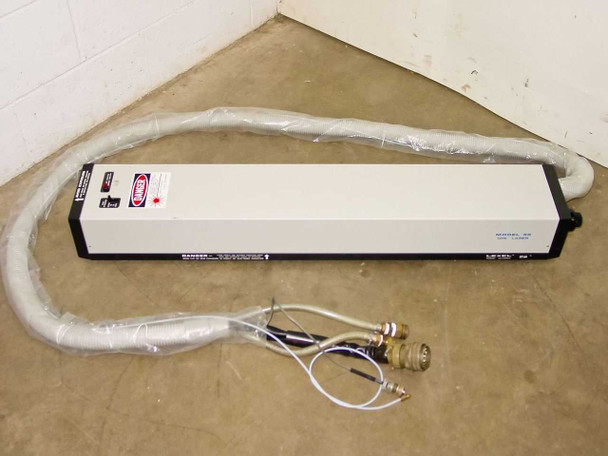

  • Lexel Model 95-5 Argon Ion Laser head in white enclosure with water cooling hose and multi-pin connector cable — full unit overview
  • Lexel Model 95 Ion Laser nameplate closeup showing 'MODEL 95 ION LASER' in blue text and 'LEXEL Fremont, California' branding
  • Lexel 95-5 laser water cooling fittings and multi-pin mil-spec electrical connector with blue contact insert visible
  • Lexel 95-5 output end panel showing Vertical & Wavelength and Horizontal tuning knobs with white cooling hose attached
  • Lexel 95-5 laser output aperture panel with beam attenuator (Closed/Open), Laser Radiation Emission Indicator, and DANGER Class IV 8W CW Argon warning label
  • Lexel 95-5 output aperture end showing laser output lens with violet anti-reflection coating and 'Avoid Exposure' warning label
  • Lexel Laser Inc. certification label showing Model 95-5, Serial 95-170 H, Part No. 109-001-L2 P-6, manufactured June 1988 in Fremont CA
  • Lexel 95-5 laser head with top cover removed showing internal laser tube (Lexel 5085Ar), optics, and internal components
  • Lexel Laser Inc. label on internal laser tube showing Model 5085Ar, Serial 9747 Argon, Part No. 0300-4040 Q-2, made in USA
  • Curtis 420-LNA hour meter (275 VDC, 0–5000 hours scale) mounted inside Lexel 95-5 laser head chassis
  • Lexel Model 95-5 Argon Ion Laser w/Model 295 Power Supply - Blows Fuse - As Is
  • Lexel Model 95-5 Argon Ion Laser w/Model 295 Power Supply - Blows Fuse - As Is
  • Lexel Model 95-5 Argon Ion Laser w/Model 295 Power Supply - Blows Fuse - As Is
$550.00
Was: $1,100.00
Current Stock: 1

Sold Out

Description

Lexel 95-5 Ion Laser 109-001-L2 w/Model 295 Power Supply 8W CW Argon For Parts

Lexel 95-5 Argon Ion laser head with matching Model 295 power supply. 8-watt CW output at 208 VAC, 3-phase, 45A. Manufactured in Fremont, California in June 1988.

Specifications & What's Included

  • Laser Type: Argon Ion (Ar+), Class IV
  • Output Power: 8 Watts CW
  • Tube Model: 5085Ar
  • Power Requirements: 208 VAC, 3-Phase, 45A, 50/60 Hz
  • Water-cooled with fittings and hose included
  • Beam attenuator and laser radiation emission indicator
  • Hour meter: Curtis 420-LNA (0–5000 hours)
  • Serial Number: 95-170 H

Applications

Argon ion lasers of this type were used in spectroscopy, holography, flow cytometry, and as pump sources for dye lasers. The Lexel 95-5 series remains in use and sought for restoration in research and industrial applications requiring UV-visible wavelength output in the 457–515 nm range.

Condition: For Parts or Not Working
This Lexel Model 95-5 Argon Ion Laser with Model 295 Power Supply is being sold AS-IS for parts or repair. When we powered it on, it blew a fuse, and we were not able to test it beyond that point. The cause of the fault has not been diagnosed. The unit may contain many usable components — including the laser tube (Lexel 5085Ar, P/N 0300-4040), optics, water cooling fittings, multi-pin connector harness, output attenuator, and tuning optics — making it a potentially valuable source of parts. The laser head cosmetically appears intact with normal age-related wear; the top cover was opened for internal photos so buyers can assess internal component condition. Please review our full photo set carefully and contact us with any questions before purchasing.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Lexel Laser
Model:
95-5
MPN:
109-001-L2
Secondary Model:
Model 295 Power Supply
Secondary MPN:
112-002-07
Tube Model:
5085Ar
Tube Part Number:
0300-4040 Q-2
SKU:
39732
Type:
Argon Ion Laser
Laser Type:
Argon Ion (Ar+)
Laser Class:
Class IV
Output Power:
8 Watts CW Argon
Power Requirements:
208 VAC, 3-Phase, 45A, 50/60 Hz
Voltage:
208 VAC
Phase:
Three Phase
Current Rating:
45 Amperes
Frequency:
50/60 Hz
Manufacture Date:
June 1988
Serial Number (Laser Head):
95-170 H
Country/Region of Manufacture:
United States
Manufacturer Location:
Fremont, California
Form Factor:
Benchtop / External Power Supply
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes laser head (109-001-L2) and Model 295 power supply (112-002-07). Blows fuse on power-up; sold AS-IS for parts.
Beam Attenuator:
Yes — Closed/Open attenuator on output end
Emission Indicator:
Yes — Laser Radiation Emission Indicator on front panel
Wavelength Adjustment:
Yes — Vertical & Wavelength / Horizontal tuning knobs
Hour Meter:
Curtis 420-LNA, 275 VDC, 0–5000 Hours
Cooling:
Water-cooled (water fittings and hose included)
Compatible With:
Lexel Model 295 Ion Laser Power Supply
Application:
Spectroscopy, holography, flow cytometry, pumping dye lasers
Certification:
Conforms to 21 CFR Chapter 1, Subchapter J (Radiation Control for Health and Safety Act of 1968)
Condition Notes:
Lexel 95-5 Argon Ion Laser w/ Model 295 PSU sold AS-IS for parts. Blows fuse on power-up; untested beyond that. Fault not diagnosed. May have many usable components. Please view photos and contact us with questions.
