Lepel T-5-3-KC-JB-W RF Generator 12.5 KVA 230-460V 3-Phase T50462

Lepel T-5-3-KC-JB-W RF Generator 12.5 KVA 230-460V 3-Phase T50462

The Lepel T-5-3-KC-JB-W is a 12.5 KVA high-frequency RF generator manufactured by Lepel High Frequency Laboratories, Inc. of New York. It is a vacuum tube-based induction heating power supply designed to convert three-phase line power into high-frequency RF energy for use with an external induction work coil. The unit is housed in a gray steel cabinet mounted on a mobile stainless steel rolling cart with casters, and uses a combination of water cooling (internal tank coil and output circuit) and forced-air ventilation to manage heat at operating power levels.

Specifications & What's Included

• Manufacturer: Lepel High Frequency Laboratories, Inc., New York
• Model: T-5-3-KC-JB-W (also shown as T53KCJBW)
• Type: T50462 (T-504-62 per nameplate)
• Power Rating: 12.5 KVA
• Input Voltage: 230–460V AC
• Input Current: 31A (at 230V) / 15.5A (at 460V)
• Phase: 3-Phase
• Frequency: 60 Hz (60 Cycle)
• Cooling: Water-cooled internal tank coil and output circuit; top-mounted forced-air cooling fan with mesh guard

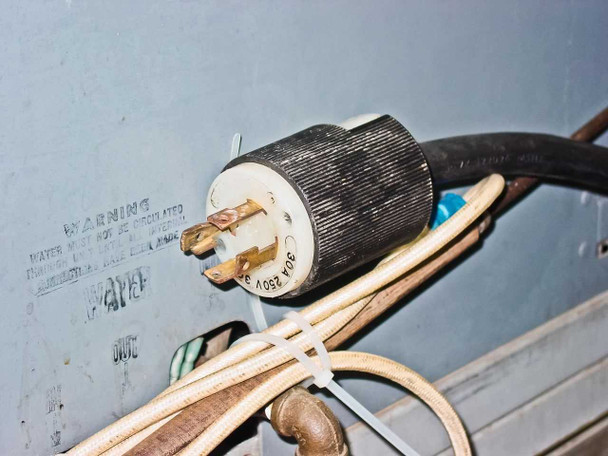

• Power input plug: 30A 250V twist-lock (visible on cable)

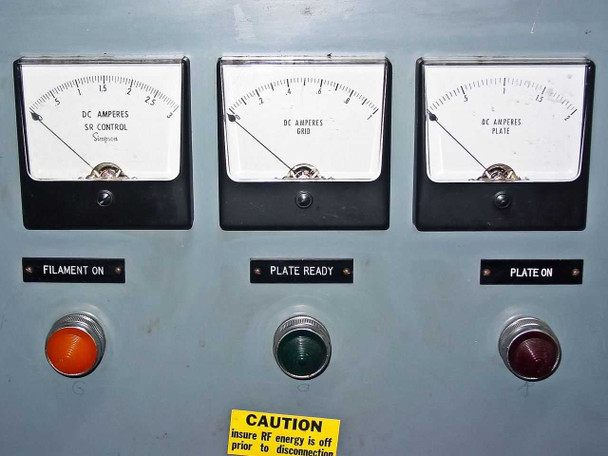

• Front panel meters: DC Amperes SR Control (Simpson), DC Amperes Grid, DC Amperes Plate
• Front panel indicators: Filament On, Plate Ready, Plate On pilot lights

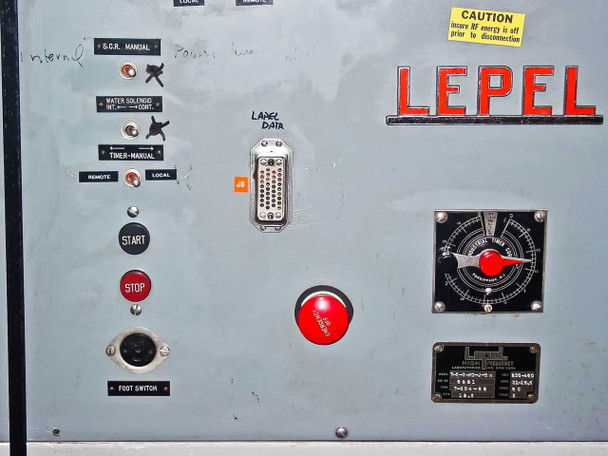

• Front panel controls: Power/output dial (0–100 scale), Grid control knob, SCR Manual switch, Water Solenoid switch (Int./Cont.), Timer-Manual switch, Remote/Local selector
• Remote interface: Multi-pin LABEI/Data connector on front panel
• Start/Stop pushbuttons and foot switch jack on front panel
• Large red emergency stop button on front panel

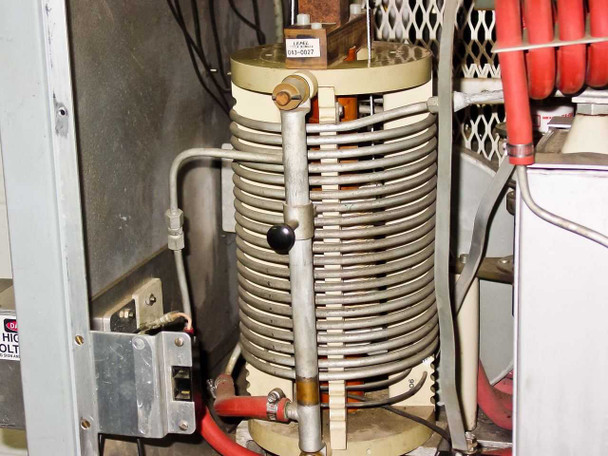

• Internal tank inductor: Large water-cooled helical coil (Lepel label tag visible)

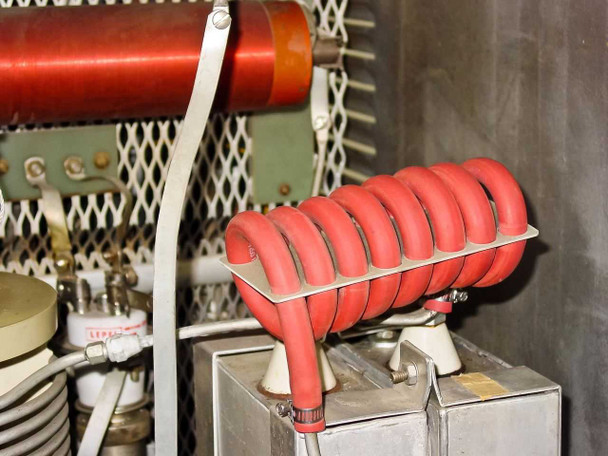

• Internal RF output coil: Red-insulated helical inductor on ceramic standoffs

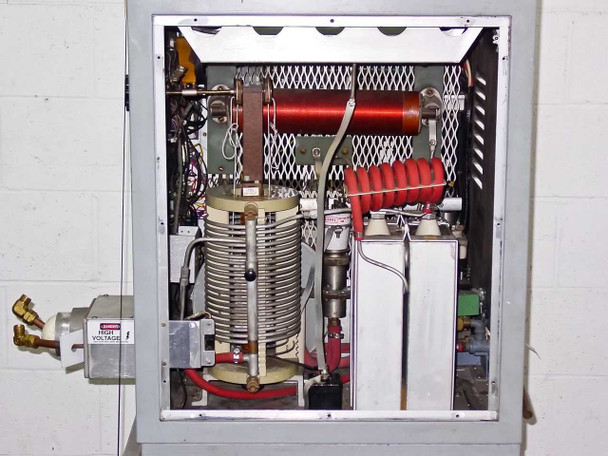

• Internal power section: Main circuit breaker, contactors, multiple power transformers, filter chokes, capacitor bank, Eagle Signal timer, relay board, fuse holders, and terminal strips
• High-voltage output connection box on side panel with brass water-cooled fittings; Danger High Voltage label

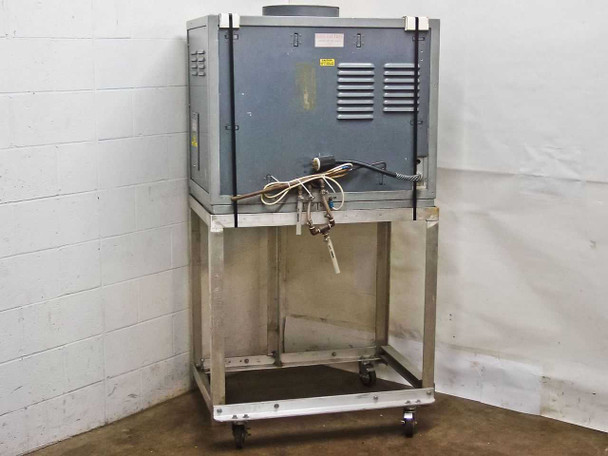

• Mounted on rolling stainless steel cart with casters
• Includes: water cooling inlet/outlet plumbing fittings with braided stainless flex lines and copper tubing; input power cable
• Warning label:
  Condition: Used
  This Lepel T-5-3-KC-JB-W High Frequency RF Generator (12.5 KVA) was pulled from a working industrial environment where it had been previously in use. It has not been powered up or tested at our facility. The cabinet and front panel show normal wear for equipment of this age, including surface oxidation and minor scuffing on the gray enclosure; the front panel controls, meters, and indicator lights appear intact. Internally, the water-cooled tank coil, RF output coil, power transformers, capacitor bank, and wiring are all present and appear complete, with no obviously missing or severely damaged components visible. Water cooling plumbing fittings and the input power cable are included. Please review all photos carefully and contact us with any questions before purchasing.
