Lenco PSW-468 Video Switcher 28-Port BNC Coax Rackmount AV Switch Unit

(No reviews yet) Write a Review
SKU:
22014
MPN:
PSW-468
Condition:
Used
Availability:
Usually ships within 1-2 business days.
Weight:
11.00 LBS
Shipping:
Calculated at Checkout

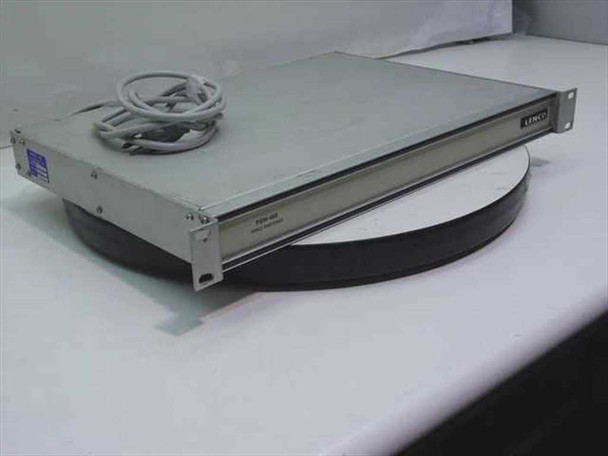

  • Lenco PSW-468 Video Switcher – top and front angle view showing 1U rackmount chassis with power cable coiled on top
  • Lenco PSW-468 Video Switcher – close-up of front panel label reading PSW-468 VIDEO SWITCHER
  • Lenco PSW-468 Video Switcher – close-up of front panel LENCO brand nameplate
  • Lenco PSW-468 Video Switcher – rear panel showing full row of BNC coaxial ports and power cable
  • Lenco PSW-468 Video Switcher – rear panel detail showing BNC ports, DB9 remote control connector, Ext Trig input, and Audio Control Out
$45.00
Was: $90.00
Current Stock: 1

Sold Out

Description

Lenco PSW-468 Video Switcher 28-Port BNC Coax Rackmount AV Switch Unit

The Lenco PSW-468 is a 1U rackmount video switcher designed for routing composite video signals across multiple BNC coaxial connections. It features a rear-panel array of BNC ports for connecting video sources and outputs, a DB9 serial remote control port for external system control, an external trigger input, and an audio control output — making it suited for multi-source AV distribution and switching applications in broadcast, production, or institutional environments.

Specifications & What's Included

  • Model: Lenco PSW-468
  • Type: Video Switcher
  • Form Factor: 1U Rack Mount
  • BNC Coaxial Ports: 28 (rear panel)
  • Signal Type: Composite video via BNC/coaxial
  • Remote Control Port: DB9 serial connector (rear panel)
  • External Trigger Input: Present (rear panel, labeled Ext. Trig.)
  • Audio Control Output: Present (rear panel, labeled Audio Control Out)
  • Includes: Rackmount brackets (attached), power cable
  • Country of Manufacture: United States (per rear panel label)

Applications

Rackmount video switchers like the Lenco PSW-468 are used in broadcast facilities, institutional AV systems, surveillance installations, and video production environments where multiple composite video sources need to be routed or selected. The BNC coaxial format was the standard for professional composite video distribution from the 1980s through the early 2000s, used in cameras, VTRs, monitors, distribution amplifiers, and waveform monitors. The DB9 remote control port allowed integration with automation systems or external controllers, a common requirement in broadcast master control and multi-room AV setups. Units of this type are still sought by facilities maintaining legacy analog video infrastructure or as cost-effective switching solutions in education, security, and archival digitization workflows.

Condition: For Parts or Not Working
This Lenco PSW-468 Video Switcher has not been tested and is being sold as-is for parts or repair. It was pulled from a working environment prior to removal, but we cannot confirm its current functional status. The chassis is in fair cosmetic condition with surface scuffs and marks on the top panel; the front panel label is clean and legible. All rear BNC ports appear physically intact, and the DB9 remote control connector and audio control output are present. Rackmount brackets and a power cable are included. Please view our photo set and contact us if you have any questions.
View AllClose

Warranty Information

We stand behind every item we sell with a 30-day money-back guarantee. If your item arrives not as described, you may return it within 30 days for a full refund. Please inspect your purchase upon arrival and contact us with any questions.
View AllClose

Additional Information

Brand:
Lenco
Model:
PSW-468
MPN:
PSW-468
Type:
Video Switcher
SKU:
22014
Condition:
As-Is / For Parts or Not Working
Seller Notes:
Includes rackmount brackets and power cable. Sold as-is, untested.
Country/Region of Manufacture:
United States
Form Factor:
Rack Mount, 1U
Number of Ports:
28
Connector Type:
BNC
Interface Type:
BNC Coaxial, DB9 Remote Control, Audio Control Out
Signal Type:
Composite Video / Coax
Remote Control:
Yes – DB9 Serial Remote Control Port
Audio:
Audio Control Out
Compatible With:
Standard BNC coaxial video equipment, broadcast AV systems
Condition Notes:
Lenco PSW-468 Video Switcher sold as-is for parts or repair. Not tested — functional status unknown. Pulled from a working environment. Chassis shows surface wear. Includes rackmount brackets and power cable.
View AllClose
