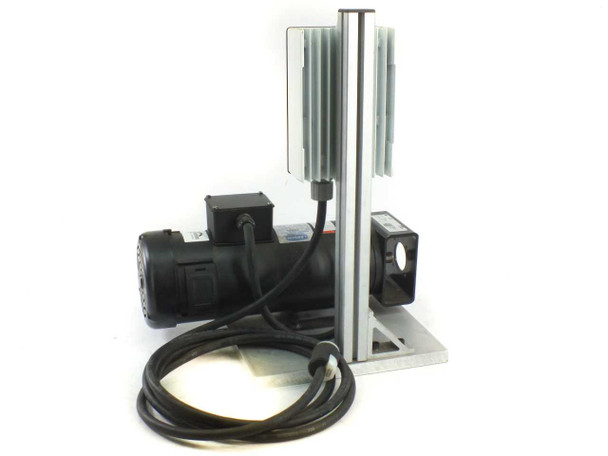

This is a complete pump drive system consisting of a Leeson CI4D6FZ1B direct current permanent magnet motor, a Seepex MD 006-12 progressive cavity pump, and a Baldor BCWD140 NEMA 4X/IP65 DC motor speed control — all mounted on a common aluminum base plate. The motor and controller were pulled from a working environment and have been tested at our facility: the system powers on at 115 VAC, the indicator lights come on, and the motor begins to rotate at approximately 20% speed on the controller. The unit was briefly run at 60% speed for a few seconds without fluid. Please note the coupling between the motor shaft and the pump shows visible deterioration and should be inspected before returning the system to service.

Specifications & What's Included

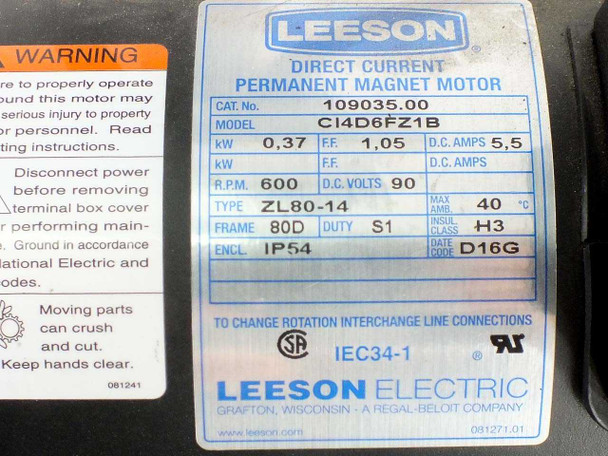

• Motor — Leeson Electric, Direct Current Permanent Magnet
• Cat No.: 109035.00
• Model: CI4D6FZ1B
• Type: ZL80-14
• Power: 0.37 kW
• DC Voltage: 90 VDC
• DC Amps: 5.5 A
• Speed: 600 RPM
• Frame: 80D
• Duty: S1
• Insulation Class: H3
• Enclosure: IP54
• Date Code: D16G
• Standards: IEC 34-1, UL Listed, CSA

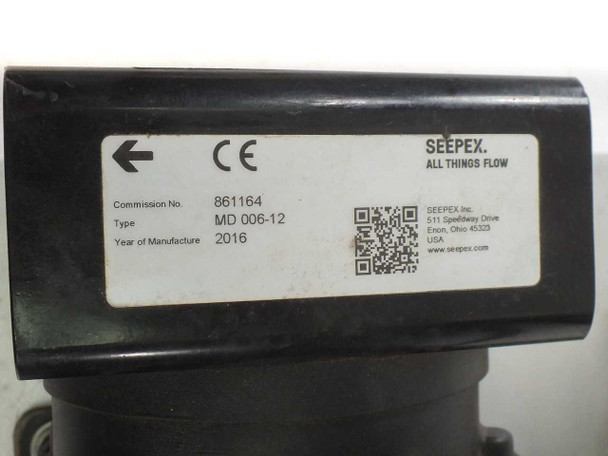

• Pump — Seepex, Progressive Cavity
• Model: MD 006-12
• Commission No.: 861164
• Year of Manufacture: 2016
• Manufacturer: Seepex Inc., Enon, Ohio, USA
• Speed Controller — Baldor (ABB), DC Motor Speed Control
• Model: BCWD140 (CN3009A38)
• Enclosure: NEMA 4X / IP65
• Input: 115 & 208/230 VAC, 50/60 Hz
• Rating: 1 HP at 10.2 A (115 VAC) / 2 HP at 10.2 A (208/230 VAC)
• Max AC Line Current: 15 Amps
• Controls: rotary speed knob (0–100%), FWD/BRK/REV selector, START/RUN pushbuttons, ON/STOP/OL indicators
• Certifications: RoHS Compliant, Hi-Pot Tested, UL Listed (Ind. Cont. Eq., 23XA)
• System
• Mounting: aluminum base plate with vertical post
• Note: Rubber coupling between motor shaft and pump shows visible cracking and deterioration — inspect and replace as needed before returning to service

Applications

Leeson permanent magnet DC motors paired with Seepex progressive cavity pumps are commonly used in industrial fluid transfer, chemical dosing, food processing, and wastewater treatment applications where precise, variable-speed flow control is needed. The Seepex MD series is a compact progressive cavity pump designed for gentle, low-shear transfer of viscous, abrasive, or shear-sensitive media — making this type of system well-suited for metering pumps in laboratory pilot lines, small-batch chemical processing, and OEM machine integration. The Baldor BCWD140 NEMA 4X enclosure makes the speed controller suitable for wet, washdown, or outdoor environments where a standard open enclosure would not be appropriate. Variable-speed DC drive systems like this allow operators to dial in precise flow rates and torque levels without the need for mechanical gearing changes. The 2016 manufacture date on the Seepex pump places this system in relatively recent service.
