Description
Leader Electronics A48121500 AC Adapter 12VAC 1500mA 0000157 3-Pin Plug 120VAC
The Leader Electronics A48121500 is a Class 2 AC transformer/adapter that converts standard 120VAC 60Hz wall power to a 12VAC 1500mA output. It uses a proprietary 3-pin output connector (part number 0000157), making it a replacement or spare specifically for equipment designed around this non-standard plug configuration. The unit was manufactured by Leader Electronics Inc. (LEI) in Taiwan in September 1996.
Specifications & What's Included
- Model: A48121500
- Part Number: 0000157
- Transformer Class: Class 2
- Input: 120VAC, 60Hz, 24W
- Output: 12VAC, 1500mA

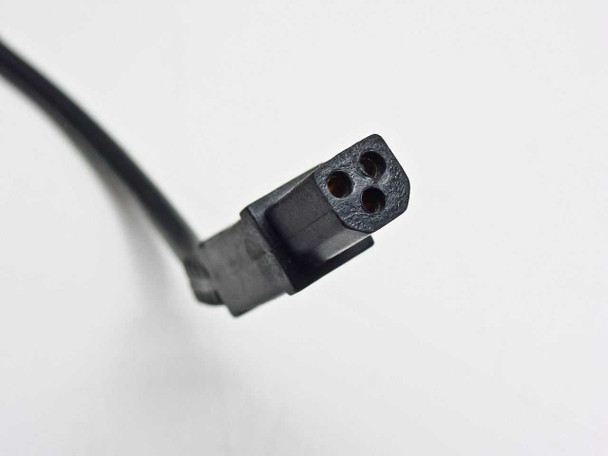

- Output Connector: Proprietary 3-pin plug
- Input Plug: 2-prong US wall plug (NEMA 1-15 style, direct plug-in)
- Certifications: UL Listed (File 12J2, E82456)
- Manufactured: September 1996, Taiwan
- Manufacturer: Leader Electronics Inc. (LEI)
Applications
Class 2 AC adapters like the A48121500 are used to power low-voltage consumer and light commercial electronics that require an AC output rather than the more common DC output. The 12VAC output is typical of devices such as answering machines, cordless phone base stations, and certain audio or small appliance equipment from the 1990s. The proprietary 3-pin output connector is the key identification detail — this adapter is intended as a direct replacement for original equipment that ships with this specific plug. Because the output is 12VAC (not 12VDC), it is not interchangeable with standard 12V DC power supplies and must be matched carefully to the target device.
This Leader Electronics A48121500 AC adapter has been tested and is in working order. The unit has a proprietary 3-pin output plug. Cosmetically it shows light surface wear consistent with normal use, and the cable and plug are intact with no visible damage. Please view our photo set and contact us if you have any questions. Please note: We have multiple units in stock — yours may not be the one shown in the photos, however, it will be similar in condition and function.
Warranty Information
Additional Information
Brand: |
Leader Electronics Inc. |
Model: |
A48121500 |
MPN: |
A48121500 |
Secondary Model: |
0000157 |
Type: |
AC Adapter / Class 2 Transformer |
SKU: |
42532 |
Input Voltage: |
120VAC |
Input Frequency: |
60Hz |
Input Power: |
24W |
Output Voltage: |
12VAC |
Output Current: |
1500mA |
Output Connector: |
Proprietary 3-pin plug |
Input Connector: |
2-prong US wall plug (NEMA 1-15) |
Transformer Class: |
Class 2 |
Certifications: |
UL Listed (12J2, E82456) |
Country/Region of Manufacture: |
Taiwan |
Manufacture Date: |
September 1996 (LEI-1 96 SEP) |
Condition: |
Used – Inspected and Tested |
Seller Notes: |
Includes attached output cable with proprietary 3-pin connector. Tested and in working order. |
Condition Notes: |
Leader Electronics A48121500 AC adapter tested and in working order. Proprietary 3-pin output plug. Light cosmetic wear consistent with normal use. Cable and connectors intact. |
