360 Systems RC-210/220 Remote Control Card 360-002 Rev C LCD Display Board

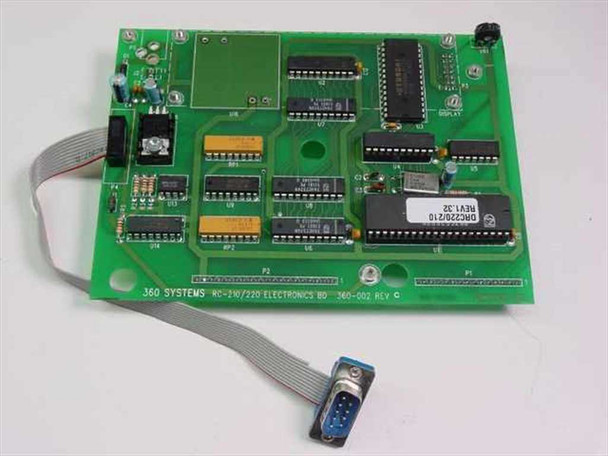

This is the 360 Systems RC-210/220 Electronics Board, part number 360-002 Rev C — the main control PCB for the 360 Systems RC-210 and RC-220 remote control units. The board carries a vacuum fluorescent LCD display module and a full complement of logic ICs, and connects via a DB9 ribbon cable to the host system. A stickered sub-module marked GRC220/219 Rev 1.32 is also present on the component side.
Specifications & What's Included
- Manufacturer: 360 Systems
- Compatible models: RC-210, RC-220 remote control units
- Board part number: 360-002 Rev C
- Sub-module: GRC220/219 Rev 1.32

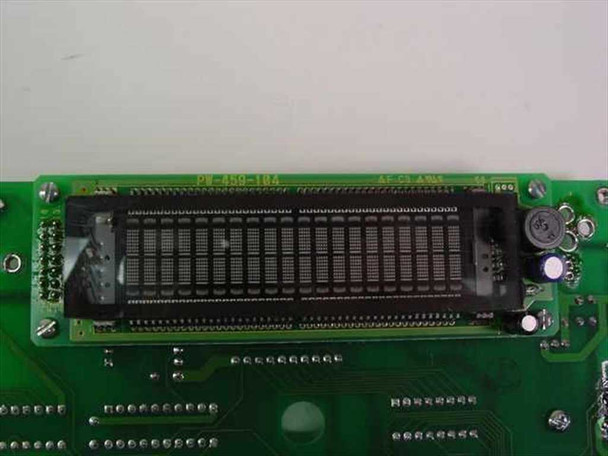

- LCD display module: PW-459-104 (vacuum fluorescent display, mounted on board)

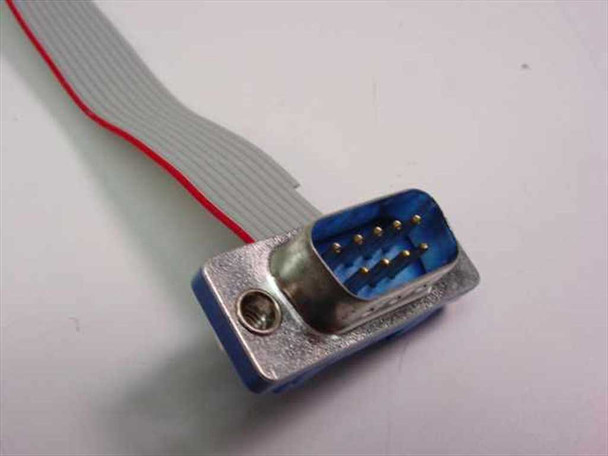

- Connector: DB9 (9-pin male) via flat ribbon cable, attached
- Additional ribbon cable: blue flat cable with connector at top edge of board
- Pin headers: multiple through-hole pin headers on solder side for internal interconnects
- Form factor: standalone PCB / card module
- Includes: PCB with LCD display module and DB9 ribbon cable — no enclosure or mounting hardware
Applications
360 Systems produces professional broadcast and audio automation equipment, and the RC-210 and RC-220 are remote control units designed for use with their digital audio and automation systems. This electronics board is the core control PCB that drives the front-panel LCD display and handles communication between the remote control unit and its host system over the DB9 serial interface. It would be sought as a replacement or repair part for an existing RC-210 or RC-220 unit, or for use in servicing and maintaining 360 Systems broadcast automation installations. 360 Systems equipment has been widely used in radio broadcast facilities, post-production studios, and commercial audio automation environments since the 1980s and 1990s.
This 360 Systems RC-210/220 Remote Control Card (board 360-002 Rev C) was pulled from a working operational environment where it was previously in service. It has not been powered up or tested at our facility. The board appears to be in good used condition with no obvious physical damage visible. The LCD display module (PW-459-104) and DB9 ribbon cable are attached and present. Normal handling wear may be present. Please review all photos carefully and contact us with any questions before purchasing.
Warranty Information
Additional Information
Brand: |
360 Systems |
Model: |
RC-210/220 |
MPN: |
360-002 Rev C |
Secondary Model: |
GRC220/219 Rev 1.32 |
Type: |
Remote Control Electronics Card / PCB |
SKU: |
29646 |
Compatible With: |
360 Systems RC-210, RC-220 Remote Control Units |
LCD Module Part Number: |
PW-459-104 |
Connector Type: |
DB9 (9-pin) via ribbon cable |
Form Factor: |
Card / PCB Module |
Includes: |
PCB with LCD display module and DB9 ribbon cable |
Seller Notes: |
Includes PCB with LCD display module, DB9 ribbon cable attached. Board only — no enclosure or mounting hardware. |
Country/Region of Manufacture: |
United States |
Condition Notes: |
This 360 Systems RC-210/220 Remote Control Card (360-002 Rev C) was pulled from a working environment and has not been tested at our facility. Board appears in good used condition; LCD module and DB9 ribbon cable included. |
