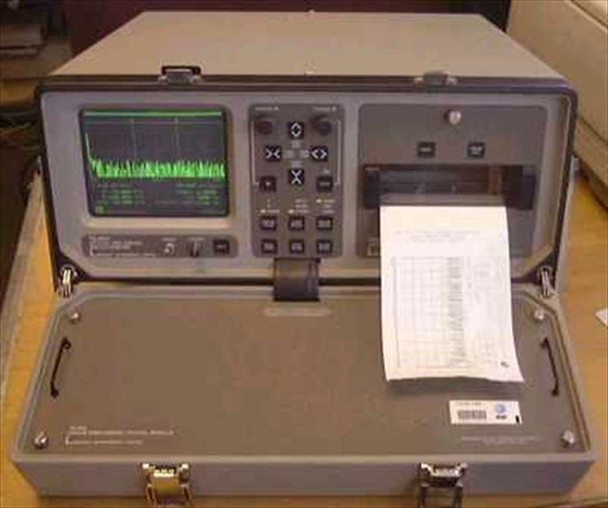

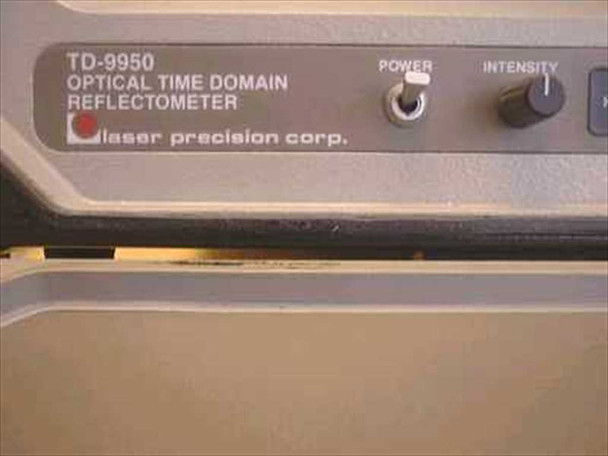

The Laser Precision Corp TD-9950 is a portable Optical Time-Domain Reflectometer (OTDR) designed for testing and characterizing single-mode fiber optic cables. It measures fiber loss, locates cable faults, and analyzes splice quality by sending a short light pulse into the fiber and measuring the backscattered and reflected signal over time. The TD-9950 features a built-in 480x512 CRT display, a real-time display mode, and a built-in thermal printer for on-the-spot documentation of test results.

Specifications & What's Included

• Model: Laser Precision Corp TD-9950
• Type: Optical Time-Domain Reflectometer (OTDR)
• Wavelength: 1550 nm (single mode, via TD-954 module)
• Distance Accuracy: +/- 0.01%
• Display: CRT, 480 x 512 resolution
• Display Mode: Real-time display

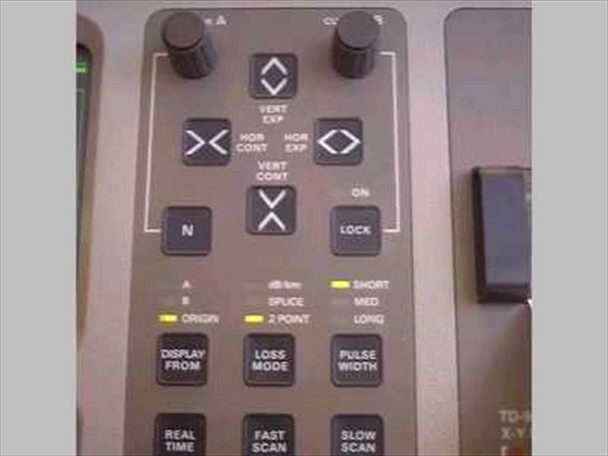

• Averaging: N-point averaging
• Analysis: Splice loss analysis, 2-point loss measurement, cable fault pinpointing
• Refractive Index: 5-digit manual entry
• Video Output: Standard NTSC

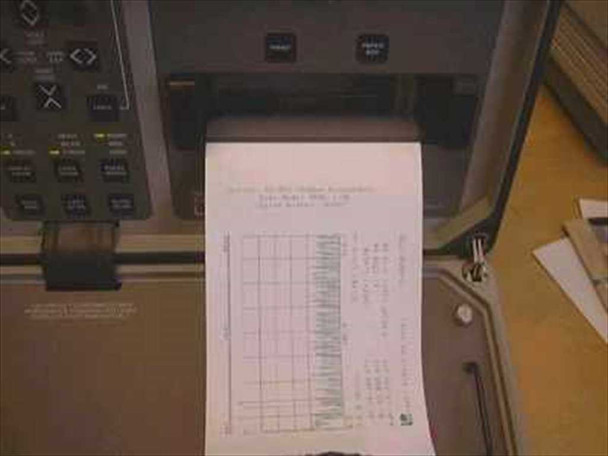

• Built-in thermal printer: Yes — tested and fully functional
• Included Module: TD-954 Single Mode Optical Module (1550 nm)
• Compatible Accessory: TD-952 X-Y Plotter (not included)
• Form Factor: Portable benchtop with integrated hard-shell carrying case
• No manual or peripherals included

Applications
