Shell and Tube Heat Exchanger 72in Flange-to-Flange Steam Boiler 13.5in Flange

(No reviews yet) Write a Review
SKU:
43704
Condition:
Used
Availability:
Currently out of stock — contact us for availability.
Weight:
625.00 LBS
Shipping:
Calculated at Checkout

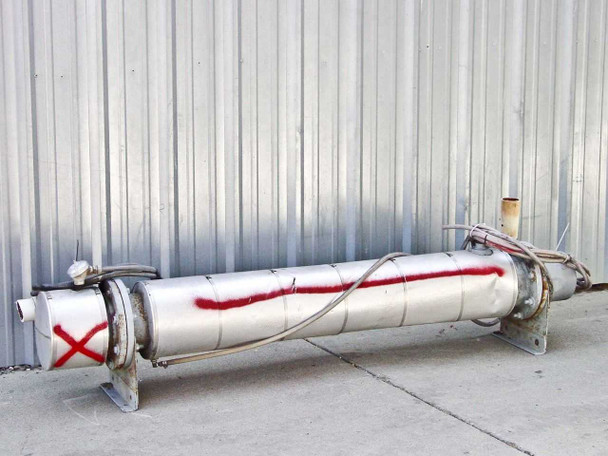

  • Shell and tube heat exchanger full side view — insulated shell with steel mounting feet, red spray-paint X mark, braided flex hoses attached at each end
  • Shell and tube heat exchanger opposite side view — insulated metal shell, flanged ends, flex hoses and conduit running along top, steel support feet
  • Close-up of one flanged end head showing large inlet/outlet nozzle, gray braided flex hoses, and PVC pipe elbow — heavy surface rust and oxidation on flange and end cap
  • Tube sheet face with tape measure showing approximately 28 tubes arranged in pattern, each approximately 1 in OD — significant rust and oxidation on tube sheet surface
  • Full tube sheet face viewed straight-on — approximately 28 tube openings visible, heavy rust and oxidation on face and around tubes, 8 flange bolt holes visible
  • Tape measure across shell nozzle opening showing approximately 3.5 in inner diameter — rust and mineral deposits visible inside nozzle

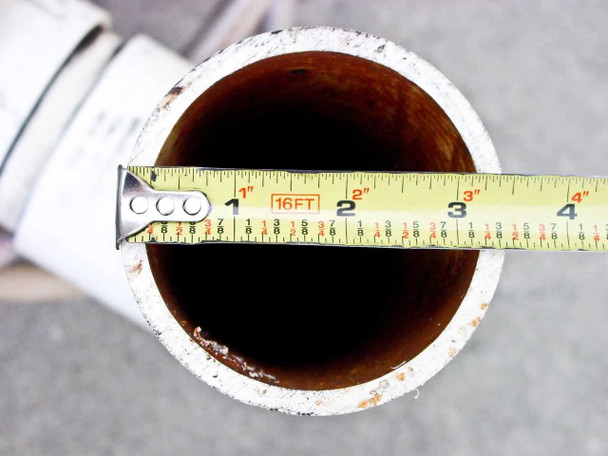

  • Tape measure across shell nozzle opening from above showing approximately 4 in inner diameter — rust and corrosion on interior surface
  • Key Instruments flow meter rotameter mounted on exchanger body — scaled 1–5 GPM and 60–300 GPH, braided flex hose connection at bottom
  • Close-up of PVC pipe fitting markings: 406-030, NSF-pw PVCI, SCH 40 D2466, GF2D2 — Schedule 40 PVC, NSF potable water rated
  • Bundle of braided flex hoses and brass ball valve fittings — one hose end showing internal rust and corrosion, hose clamps and connectors visible
  • Flange connection detail showing heavy rust, oxidation, and peeling paint on flange face, bolts, and gasket area

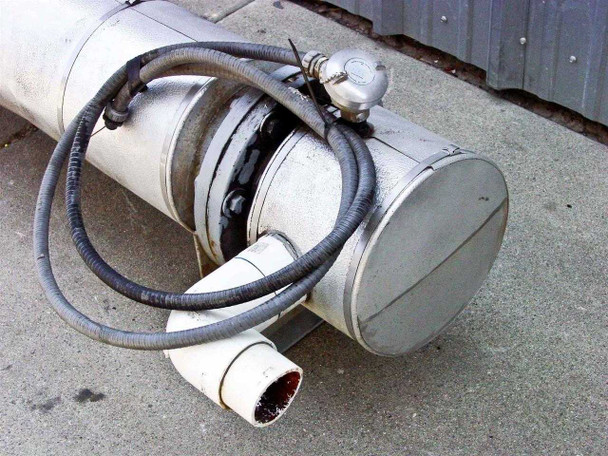

  • One end of heat exchanger showing end cap/head, gray liquid-tight flex conduit with wiring, PVC elbow outlet below, and small instrument fitting on top — surface rust and wear
  • Thermocouple Technology Inc. (TTEC) thermocouple junction box label — reads Thermocouple Technology Inc., phone (215) 529-9394, Quakertown PA 18951
  • Close-up of liquid-tight conduit fittings where flex conduit enters shell, orange/red signal wire visible between conduits — oxidation and wear on fittings
  • Flange bolt detail showing heavy surface rust on bolts, flange face, and shell exterior around the bolted flange connection

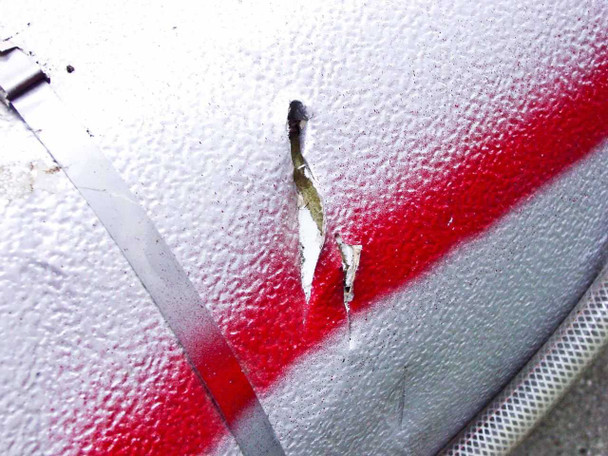

  • Close-up of outer insulation jacket on shell showing a tear/cut in the metal cladding with yellow insulation material exposed beneath, red spray-paint stripe visible
  • Large flanged end nozzle viewed face-on — heavy rust and oxidation on flange face and interior, standing water/moisture visible inside, 8 bolt holes, PVC elbow fitting at top

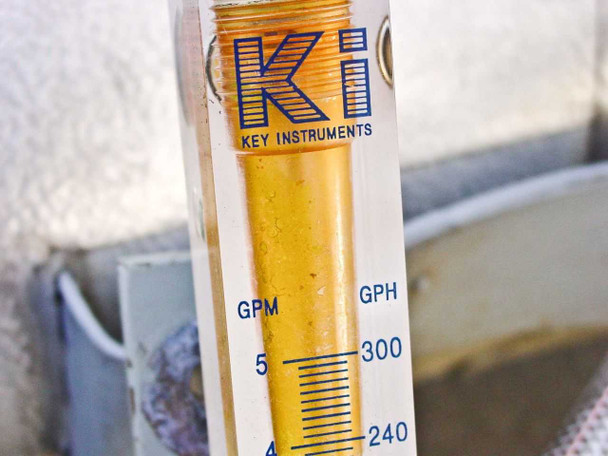

  • Close-up of Key Instruments rotameter float tube showing scale detail — 4–5 GPM (240–300 GPH) range visible, amber float, KEY INSTRUMENTS branding clearly legible
$1,490.00
Was: $2,000.00

This item is temporarily unavailable. Please view our recommended, in-stock alternatives directly below.

Description

Shell and Tube Heat Exchanger 72in Flange-to-Flange Steam Boiler 13.5in Flange

This is a large horizontal shell-and-tube heat exchanger designed for steam boiler and industrial process heating applications. The unit features an insulated shell with a metal outer jacket, flanged end connections, and a multi-tube bundle, and it ships with several ancillary components including a flow meter, thermocouple, braided flex hoses, and PVC fittings. No manufacturer nameplate is legible on the shell.

Specifications & What's Included

  • Type: Shell and tube heat exchanger, horizontal orientation
  • Overall dimensions: approximately 92 in L x 24 in W x 22 in H
  • Flange-to-flange length: 72 in
  • Flange outside diameter: 13.5 in
  • Tube bundle outer diameter: 8.5 in
  • Number of tubes: approximately 28 (visible on tube sheet face)
  • Tube OD: approximately 1 in (measured in photos)
  • Shell nozzle inner diameter: approximately 3.5–4 in (measured with tape measure)
  • Flange bolt pattern: 8-bolt configuration
  • Shell: insulated with metal outer cladding jacket
  • Mounting: horizontal, steel support feet welded to shell
  • Included — Key Instruments rotameter/flow meter: 1–5 GPM / 60–300 GPH range
  • Included — Thermocouple Technology Inc. (TTEC) thermocouple junction, Quakertown, PA
  • Included — braided flex hoses with brass ball valve fittings
  • Included — PVC SCH 40 fittings and elbows (NSF-pw rated, ASTM D2466, Part No. 406-030)
  • Liquid-tight flex conduit and wiring present on one end head

Applications

Shell-and-tube heat exchangers are the most widely used type of heat exchanger in industrial process applications. They transfer thermal energy between two fluid streams — one flowing through the tube bundle and the other through the surrounding shell — without the two fluids coming into direct contact. In steam boiler systems, they are commonly used to heat process water, generate hot water from steam, recover heat from condensate, or preheat feedwater. They also appear in HVAC systems, chemical processing plants, food and beverage facilities, power generation, and oil and gas operations. The horizontal, flanged design of this unit is typical of fixed-tube-sheet exchangers used in continuous-duty process heating loops, where the unit is piped in-line with existing process connections. The attached flow meter and thermocouple suggest this exchanger was previously instrumented and monitored as part of a controlled heating or cooling loop.

Condition: Used
This shell and tube heat exchanger has been pulled from a working industrial environment and shows moderate to heavy wear consistent with prior service use. The flanges, tube sheet face, and flange bolts display significant surface rust and oxidation, and the outer insulation cladding has a tear exposing the underlying insulation material. One large nozzle shows standing water/moisture inside the opening, and several braided flex hose ends show internal corrosion. The unit has not been bench-tested or pressure-tested at our facility. Included accessories — a Key Instruments rotameter (1–5 GPM / 60–300 GPH), a Thermocouple Technology Inc. (TTEC) thermocouple, braided flex hoses, and PVC SCH 40 fittings — are sold as-is with the unit. Please review all 18 photos carefully for a full picture of the cosmetic condition before purchasing. Please view our photo set and contact us if you have any questions.
