The LAP CAD-PRO is an industrial laser projector system made by LAP GmbH Laser Applikationen of Lüneburg, Germany. It projects visible laser lines onto the surface of workpieces, tools, or assembly fixtures, allowing operators to align, position, and lay out components without physical templates. The system is controlled via a connected PC and the included IR remote. This complete set was manufactured in December 2015 and was previously used for solar panel layout.

Specifications & What's Included

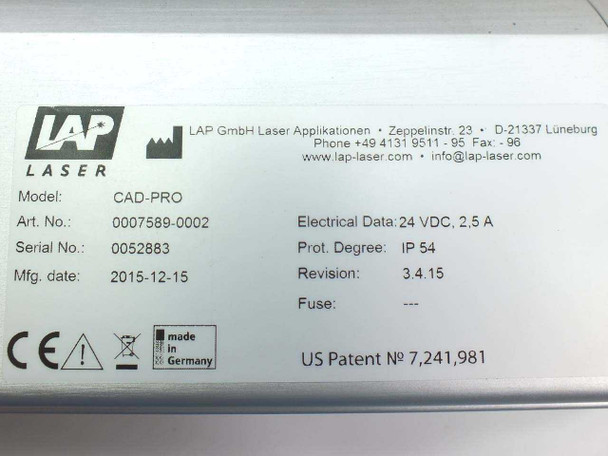

• Laser Projector — Model: CAD-PRO, Art. No.: 0007589-0002
• Projector power: 24 VDC, 2.5 A
• Protection degree: IP 54
• Firmware/Revision: 3.4.15
• Manufacture date (projector): December 15, 2015
• Distribution Box — Model: Distr. Box CAD-PRO (1-2), Art. No.: 0005432-0002
• Distribution box power input: 100–120VAC, 60 Hz, 240VA
• Distribution box internals: Siemens SITOP PSU, DIN-rail circuit breakers, terminal wiring
• Distribution box connectors: XS1, XS2 (industrial multi-pin), 1X8
• Manufacture date (distribution box): December 17, 2015
• Manufacturer: LAP GmbH Laser Applikationen, Germany — US Patent No. 7,241,981

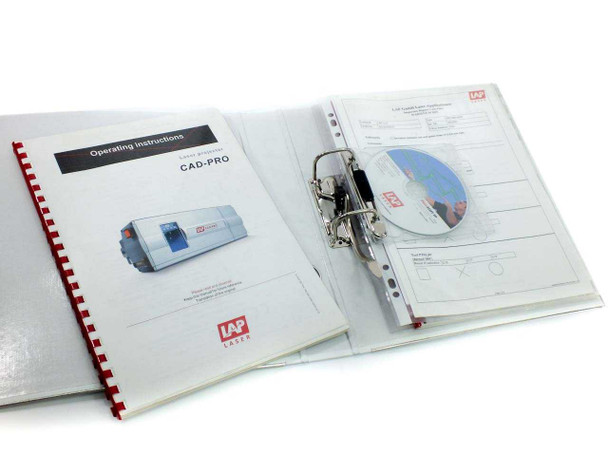

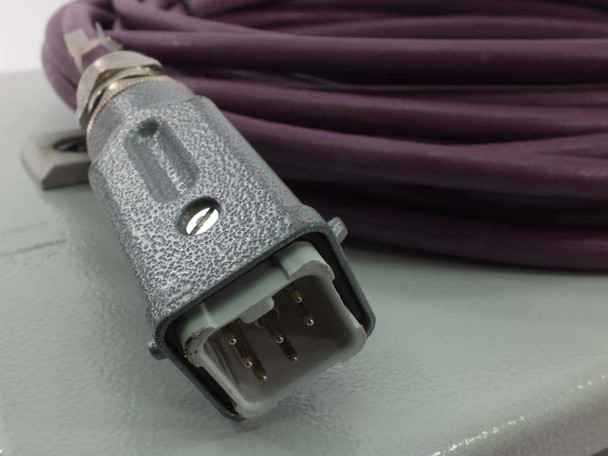

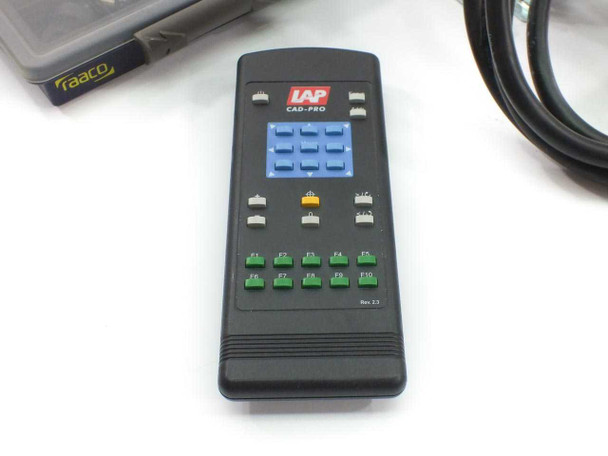

• Includes: LAP CAD-PRO laser projector, distribution box, laser target set (~8–10 targets in Taaco organizer), IR remote (Rev 2.5), purple multi-pin interconnect cable, CAD-PRO operating instructions manual (spiral-bound), and documentation binder with CD-ROM
